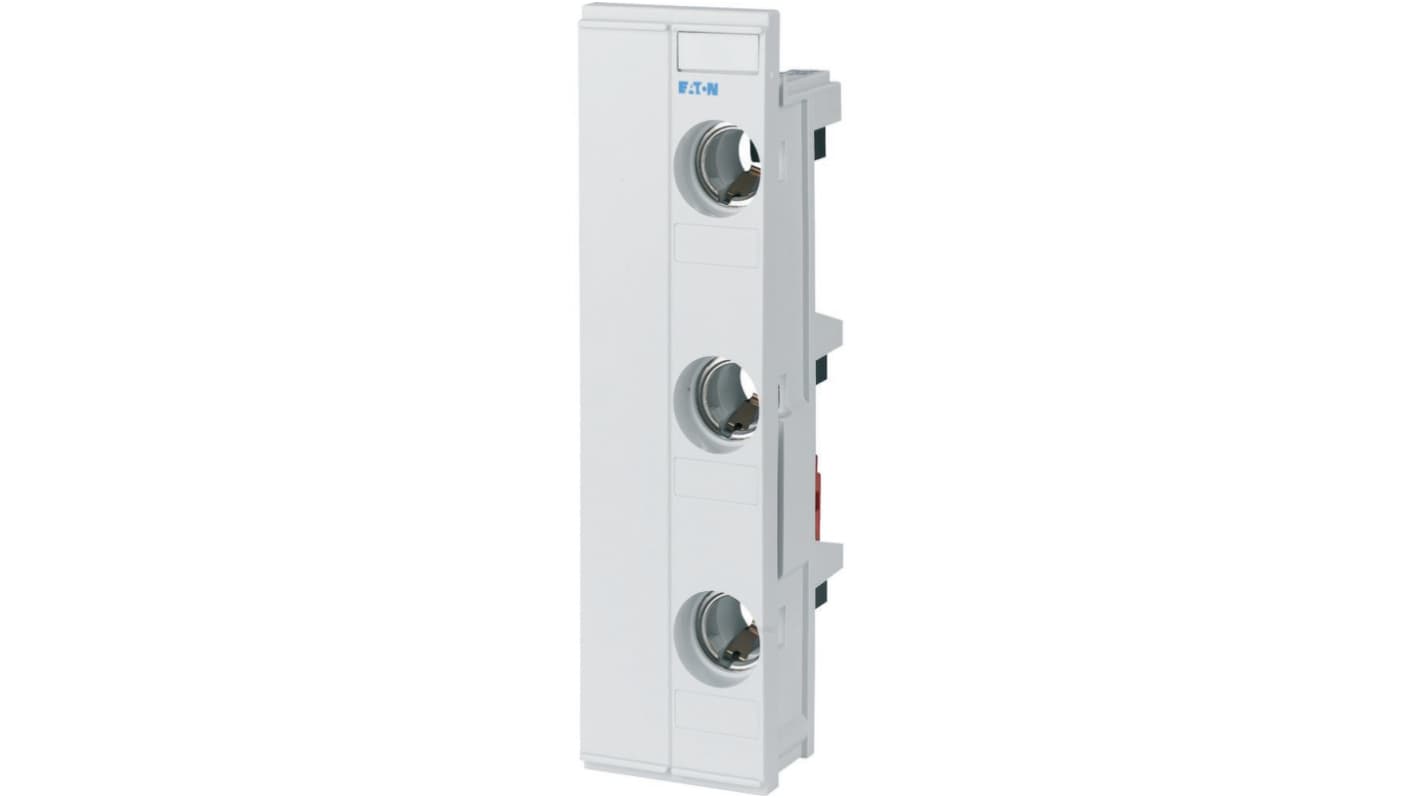

Eaton 63A Fuse Holder, 3P-Pole for 57 x 54 x 201 mm, 400V ac
- RS 제품 번호:
- 247-075
- 제조사 부품 번호:
- 100664 Z-D02/R/3-54
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩52,958.10
제조사가 재고 비축중
- 2026년 6월 22일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩52,958.10 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 247-075
- 제조사 부품 번호:
- 100664 Z-D02/R/3-54
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Fuse Holder | |
| Current Rating | 63A | |
| Voltage | 400V ac | |
| Number of Poles | 3 | |
| Body Material | Plastic | |
| Minimum Operating Temperature | -25°C | |
| Compatible Fuse Size | 57 x 54 x 201 mm | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC/EN 60269-1, VDE 0636 Part 301 | |
| Series | Eaton xEffect SASY 60i | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Fuse Holder | ||
Current Rating 63A | ||
Voltage 400V ac | ||
Number of Poles 3 | ||
Body Material Plastic | ||
Minimum Operating Temperature -25°C | ||
Compatible Fuse Size 57 x 54 x 201 mm | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC/EN 60269-1, VDE 0636 Part 301 | ||
Series Eaton xEffect SASY 60i | ||
- COO (Country of Origin):
- DE
Eaton xEffect SASY 60i Series Fuse Holder, 63A Current Rating, 400V Voltage - 100664 Z-D02/R/3-54
This fuse holder provides a secure mounting solution for three fused poles in low-voltage distribution systems. It is intended for installation on DIN rails within electrical panels and is constructed to perform within typical industrial control and automation environments.
Features & Benefits
• 63A current rating supports medium-duty circuit protection
• 400V voltage rating suits three-phase supply systems
• Plastic body reduces conductive risk and lowers weight
• Three-pole configuration enables simultaneous pole switching
• Operates between −25°C and 55°C for varied ambient conditions
• 400V voltage rating suits three-phase supply systems
• Plastic body reduces conductive risk and lowers weight
• Three-pole configuration enables simultaneous pole switching
• Operates between −25°C and 55°C for varied ambient conditions
**Applications**
• Suitable for motor control panels in factory automation
• Ideal for protection circuits in distribution boards
• Used with industrial drives and contactor assemblies
• Can be used for electrical panel upgrades in commercial sites
• Ideal for protection circuits in distribution boards
• Used with industrial drives and contactor assemblies
• Can be used for electrical panel upgrades in commercial sites
What standards govern the product’s design?
The unit meets IEC/EN 60269-1 and VDE 0636 Part 301 specifications for fuse‑holder interfaces and construction.
How does the component integrate into standard mounting systems?
It is configured for DIN-rail mounting to fit typical panel racks and enclosures used in industrial installations.
What material characteristics affect thermal behaviour?
The enclosure is MADE from a plastic material specified for operation up to 55°C and down to −25°C, influencing heat dissipation and mechanical stability.
Is this suitable for replacing an older unit with the same footprint?
It serves as a direct replacement for compatible three-pole holders designed for the same electrical ratings and mounting format.
