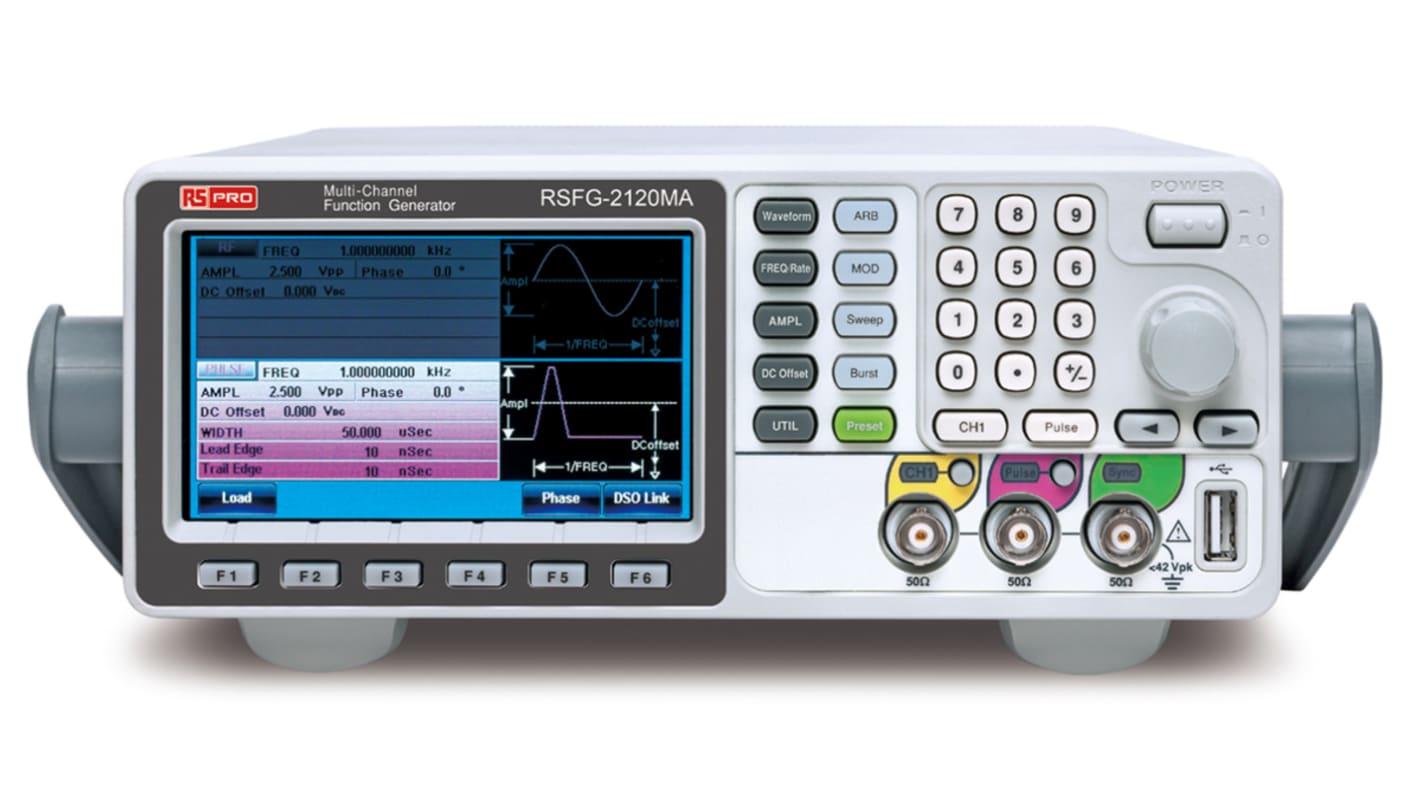

RS PRO RSFG-2120MA Function Generator, 25 MHz Min, 25 MHz Max FM Modulation

모든 Function Generators 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩939,624.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2026년 2월 23일 부터 22 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩939,624.00
5 +₩773,309.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
191-9723
Distrelec 제품 번호:
304-21-006
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Maximum Frequency Range Sinewave

25MHz

Product Type

Function Generator

Number of Channels

5

Output Impedance

50Ω

Minimum Frequency Range Sinewave

25MHz

FM Modulation

Yes

Maximum Frequency Range Square Pulse/Arbitrary Waveform

25MHz

Time Base Accuracy

±20 ppm

Standards/Approvals

CE, IEC

Weight

2.5kg

Length

266mm

Maximum Frequency Range Triangle/Saw

25MHz

Height

107mm

Width

293 mm

TTL Output Level

4V Pk-Pk

Digital Amplitude and Offset

Yes

Maximum Operating Temperature

40°C

Model Number

RSFG-2120MA

Minimum Operating Temperature

0°C

Internal Linear and Log Sweep

Yes

Input Impedance

1kΩ

Attenuation

20 dB

Interface Type

USB, LAN

COO (Country of Origin):
CN

RS PRO 20MHz Single Channel Arbitrary Function Generator with Pulse Generator, Modulation, Power Amplifier


Introducing the RSFG-2000 series of AFG (arbitrary function generators) with pulse generator from RS PRO, a selection of robust and professional function generators offering a range of outputs including sine, square and triangle. Whatever your needs the RSFG-2000 series from RS PRO has you covered, with devices ranging from basic single channel AFG with pulse generator models to more technical and advanced five-channel models with many offering various modulation methods such as AM/FM/PM/FSK/PWM, Sweep, Burst, Trigger, 150 MHz Frequency Counter. The AFG of the RSFG-2000 series in collaboration with AWES (Arbitrary Waveform Editing Software) allows users to easily and quickly edit arbitrary waveforms, with 66 built-in waveforms allowing users to edit arbitrary waveforms and to output the whole segment or divided segments.

Each model of the RSFG-2000 series features a built-in pulse generator with an output frequency that reaches 25 MHz. Users can set pulse width, duty cycle, rise edge time, and fall edge time to support trigger signal. Furthermore, each model also features a clear and user-friendly interface with a 4.3 inch TFT colour display that can be easily navigated by users of any level of expertise.

RF Signal Generator (1919724 & 1919727)


The RF signal generator feature included in models 1919724 & 1919727 can be applied as a high frequency arbitrary waveform generator, simulated signals of analog or digital broadcast stations or carrier signals of local oscillator. It is also compatible with modulation methods such as AM/FM/PM/FSK/PWM/PSK/ASK.

Power Amplifier (1919723 & 1919727)


The low frequency 20W/20dB power amplifier found in models 1919723 & 1919727 has a bandwidth of DC ∼ 100KHz and less than 0.1% distortion and is ideal for connecting a speaker for a wide range of physics experiments.

Features and benefits


  • Maximum Five Output Channels

  • - 2 Equivalent Performance Arbitrary Channels Frequency : 1 Hz ∼ 10/20/30/60MHz

  • - RF Channel Frequency (FG/ARB/MOD) : 160/320MHz

  • - Pulse Generator Frequency : 25MHz

  • - Power Amplifier: Low Frequency, 5Hz∼100kHz, 20dB/20W(limited by current setting)

  • True Point by Point Output Arbitrary Waveform Function : 200MSa/s, 100MHz Repetition Rate, 14-bit Resolution,16k Points Memory Depth

  • Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis

  • Frequency Counter : 150MHz, 8 bit Frequency Resolution

  • AM/FM/PM/ASK/FSK/PSK/SUM/PWM Modulation

  • Built-in medical and automotive electronic waveforms

  • USB Host/USB Device/LAN (RSFG-22XX only)

  • 4.3 Inch TFT Colour Display

    • Are test leads supplied?


    Yes, this model is supplied with a single BNC-Alligator test lead.
