제조사부품번호

Infineon 16 kB I2C FRAM 8-Pin SOIC-8, FM24C16B-GTR

RS 제품 번호:: 273-5309
제조사 부품 번호:: FM24C16B-GTR
제조업체:: Infineon

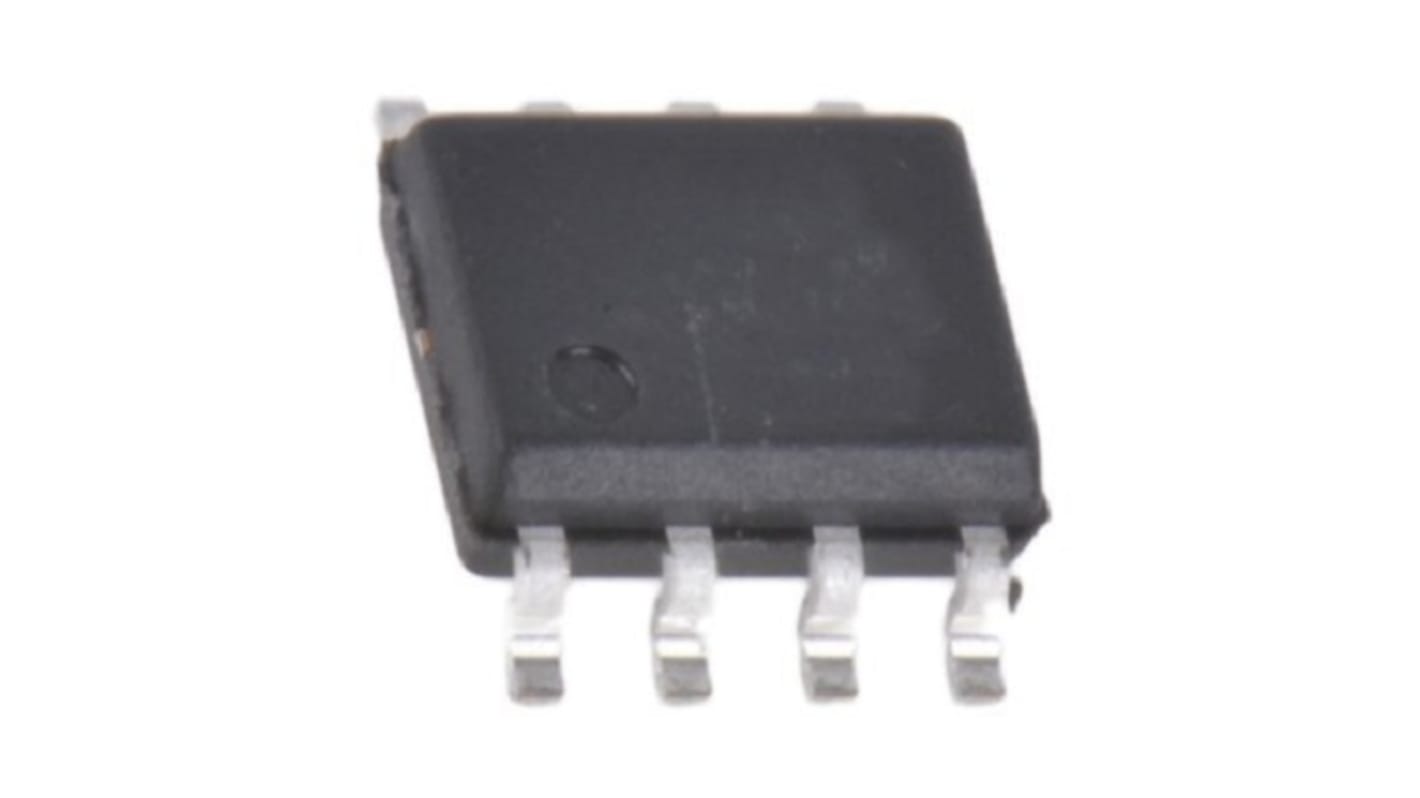

Infineon 16 kB I2C FRAM 8-Pin SOIC-8, FM24C16B-GTR

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 pack of 2 units)*

₩40,520.00

일시적 품절

2027년 4월 19일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
2 - 48	₩20,260.00	₩40,520.00
50 - 98	₩19,660.00	₩39,320.00
100 - 248	₩19,260.00	₩38,520.00
250 - 998	₩18,880.00	₩37,760.00
1000 +	₩18,500.00	₩37,000.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 273-5309
제조사 부품 번호:: FM24C16B-GTR
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Product Type	FRAM
	Memory Size	16kB
	Organisation	2K x 8 bit
	Interface Type	I2C
	Data Bus Width	8bit
	Maximum Clock Frequency	1MHz
	Package Type	SOIC-8
	Pin Count	8
	Standards/Approvals	RoHS
	Maximum Operating Temperature	85°C
	Number of Words	2k
	Maximum Supply Voltage	5.5V
	Minimum Operating Temperature	-40°C
	Automotive Standard	No
	Number of Bits per Word	8
	Minimum Supply Voltage	4.5V

	모두 선택
	브랜드 Infineon
	Product Type FRAM
	Memory Size 16kB
	Organisation 2K x 8 bit
	Interface Type I2C
	Data Bus Width 8bit
	Maximum Clock Frequency 1MHz
	Package Type SOIC-8
	Pin Count 8
	Standards/Approvals RoHS
	Maximum Operating Temperature 85°C
	Number of Words 2k
	Maximum Supply Voltage 5.5V
	Minimum Operating Temperature -40°C
	Automotive Standard No
	Number of Bits per Word 8
	Minimum Supply Voltage 4.5V

Datasheet - FM24C16B-GTR

Infineon FRAM, 16 kB Memory Size, I2C Interface - FM24C16B-GTR

This FRAM is a non-volatile memory device designed for serial communications in embedded systems. It interfaces via I2C and provides byte-oriented storage in a Compact SOIC-8 package. The component operates across a typical industrial temperature range and is intended for applications requiring frequent read/write cycles with low power consumption.

Features and Benefits:

• 16 kB memory offering persistent data retention during power loss
• 8-bit data bus enabling straightforward byte-wise transfers
• 1MHz clock supporting Faster serial transactions
• 4.5V minimum supply allowing operation from low-voltage rails
• 5.5V maximum supply tolerating transient supply excursions

Applications

• Suitable for data logging in industrial control systems
• Ideal for sensor calibration parameter storage in devices
• Used with microcontrollers requiring small non-volatile memory
• Can be used for configuration storage in instrumentation
• Suitable for low-power embedded monitoring modules

What package type does it use for PCB mounting?

It is supplied in an SOIC-8 package suitable for surface-mount PCB assembly.

What are the supported ambient temperature limits for operation?

It operates between -40°C and 85°C.

How many addressable words does the device provide?

The memory organisation is 2K x 8 bits, yielding 2k addressable words.

Is there any regulatory restriction listed for material composition?

It carries RoHS approval indicating conformity with restricted substances regulations.
