Altera FPGA Cyclone IV E 6272 Cells, 6272 Gates, 276480 bit 392 Blocks, 144-Pin EQFP
- RS 제품 번호:
- 170-2980
- 제조사 부품 번호:
- EP4CE6E22I7N
- 제조업체:
- Altera

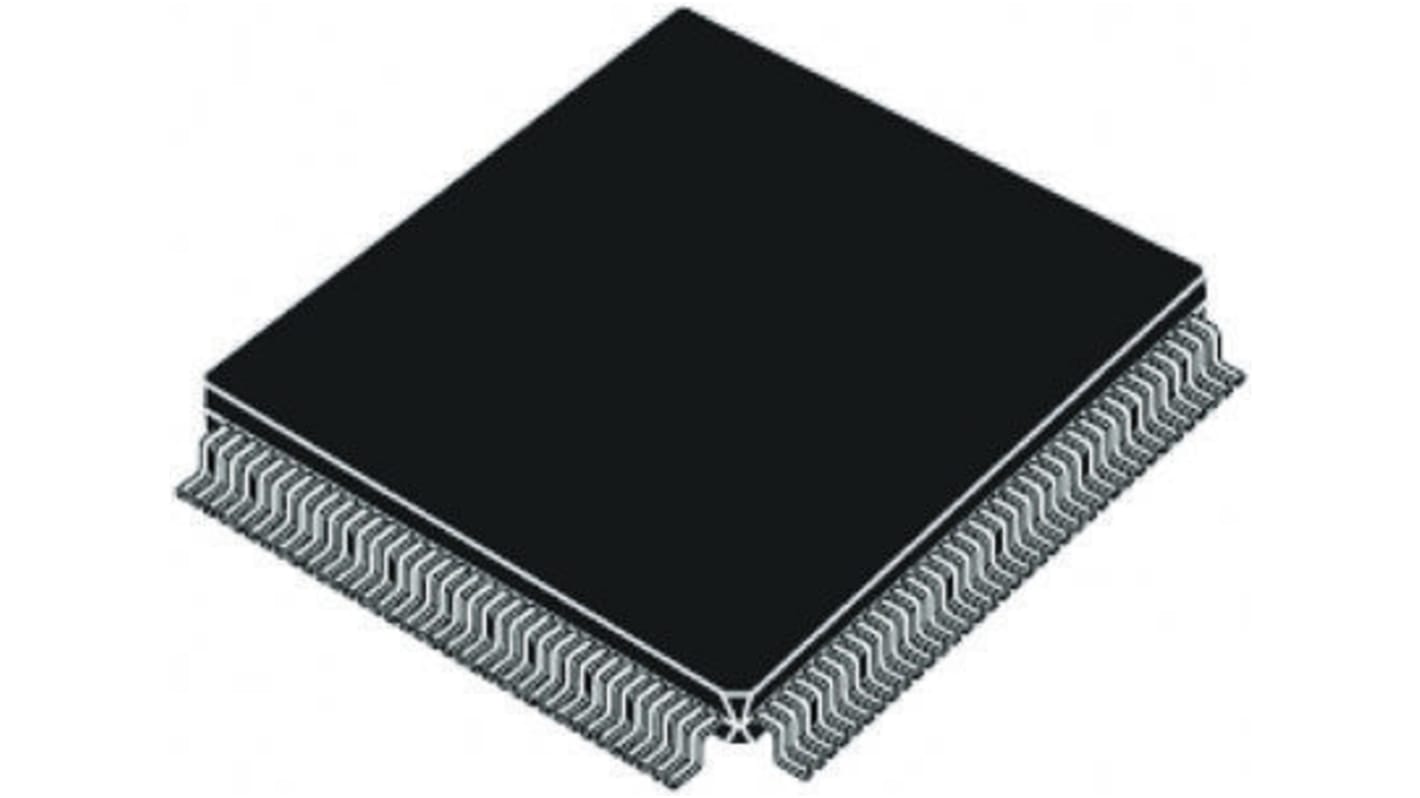

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
대량 구매 할인 기용 가능
Subtotal (1 tray of 60 units)*
₩3,085,756.80
일시적 품절
- 2026년 5월 25일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tray* |
|---|---|---|
| 60 - 60 | ₩51,429.28 | ₩3,085,779.36 |
| 120 - 180 | ₩50,400.92 | ₩3,024,055.20 |
| 240 + | ₩49,393.24 | ₩2,963,560.56 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 170-2980
- 제조사 부품 번호:
- EP4CE6E22I7N
- 제조업체:
- Altera
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Altera | |
| Product Type | FPGA | |
| Series | Cyclone IV E | |
| Number of Logic Gates | 6272 | |
| Number of Logic Cells | 6272 | |
| Number of Logic Units | 392 | |
| Number of Multipliers | 360 (18 x 18) | |
| Mount Type | Surface | |
| Minimum Supply Voltage | 1.15V | |
| Package Type | EQFP | |
| Pin Count | 144 | |
| Maximum Supply Voltage | 1.25V | |
| Number of RAM Bits | 276480bit | |
| Minimum Operating Temperature | -40°C | |
| Number of I/Os | 91 | |
| Maximum Operating Temperature | 100°C | |
| Width | 22 mm | |
| Length | 22mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Altera | ||
Product Type FPGA | ||
Series Cyclone IV E | ||
Number of Logic Gates 6272 | ||
Number of Logic Cells 6272 | ||
Number of Logic Units 392 | ||
Number of Multipliers 360 (18 x 18) | ||
Mount Type Surface | ||
Minimum Supply Voltage 1.15V | ||
Package Type EQFP | ||
Pin Count 144 | ||
Maximum Supply Voltage 1.25V | ||
Number of RAM Bits 276480bit | ||
Minimum Operating Temperature -40°C | ||
Number of I/Os 91 | ||
Maximum Operating Temperature 100°C | ||
Width 22 mm | ||
Length 22mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- US
Cyclone FPGA, Altera
An FPGA is a semiconductor device consisting of a Matrix of Configurable Logic Blocks (CLBs) connected through programmable interconnects. The user determines these interconnections by programming SRAM. A CLB can be simple (AND, OR gates, etc) or complex (a Block of RAM). The FPGA allows changes to be MADE to a design even after the device is soldered into a PCB.
