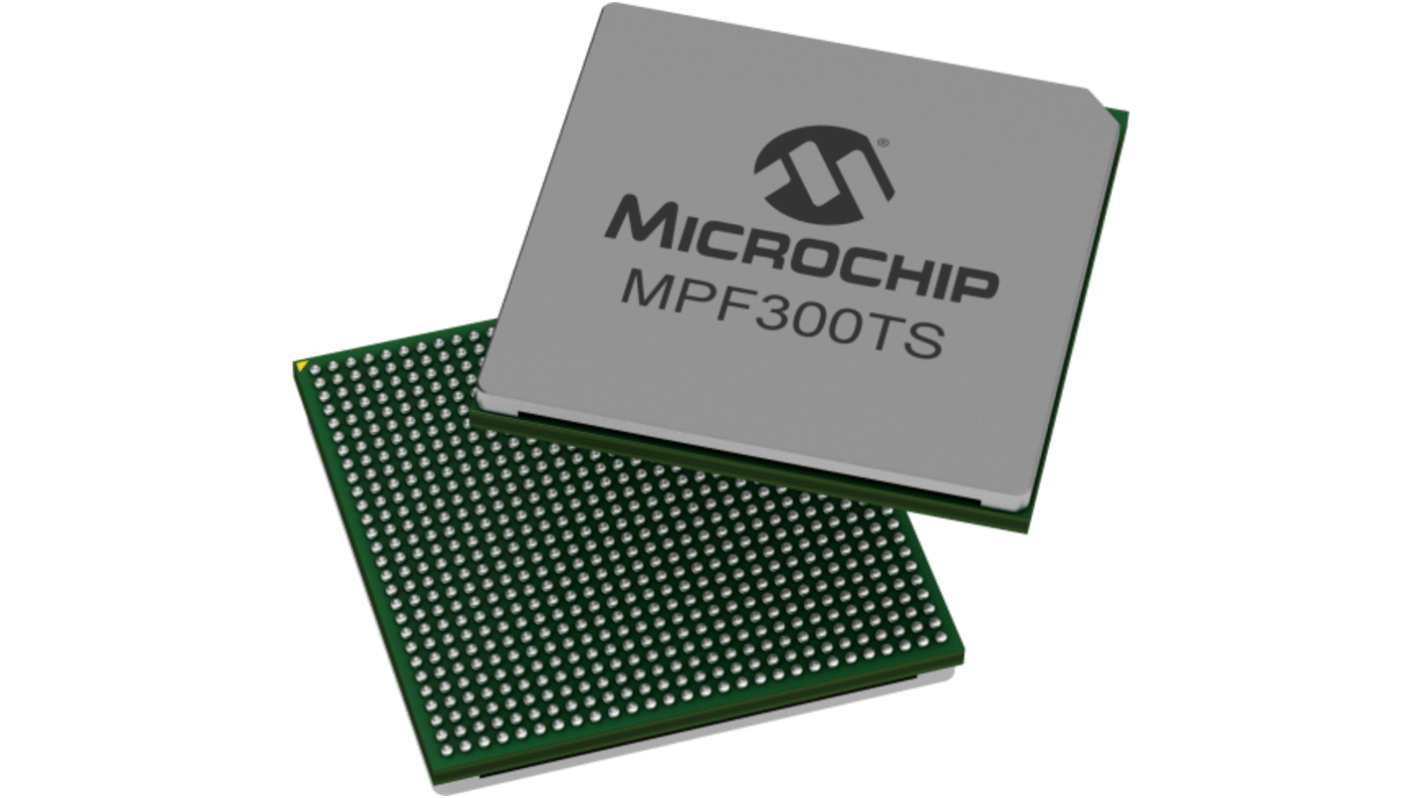

Microchip FPGA MPF300TS-FCVG484I MPF300TS 300000 Cells, 20600 kB 484-Pin BGA

RS 제품 번호:: 333-373
제조사 부품 번호:: MPF300TS-FCVG484I
제조업체:: Microchip

Microchip FPGA MPF300TS-FCVG484I MPF300TS 300000 Cells, 20600 kB 484-Pin BGA

Subtotal (1 unit)*

₩1,363,940.00

현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.

수량	한팩당
1 +	₩1,363,940.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 333-373
제조사 부품 번호:: MPF300TS-FCVG484I
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	FPGA
	Series	MPF300TS
	Number of Logic Cells	300000
	Package Type	BGA
	Pin Count	484
	Number of I/Os	512
	Number of RAM Bits	20600kB
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	100°C
	Standards/Approvals	RoHS
	Automotive Standard	No

	모두 선택
	브랜드 Microchip
	Product Type FPGA
	Series MPF300TS
	Number of Logic Cells 300000
	Package Type BGA
	Pin Count 484
	Number of I/Os 512
	Number of RAM Bits 20600kB
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 100°C
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - MPF300TS-FCVG484I

COO (Country of Origin):: KR

The Microchip PolarFire FPGAs deliver the industry’s lowest power at mid range densities with exceptional security and reliability. Features 12.7G transceivers and offers up to 50% lower power than competing mid range FPGAs. The devices are ideal for a wide range of applications within wireline access networks and cellular infrastructure, defense and commercial aviation markets, as well as industrial automation and IoT markets.

300K logic elements

924 Math blocks

Total RAM 20.6 Mbits

uPROM 459 Kbits

DLL/PLL 8 each

16 SERDES lanes

2 PCIe Endpoints / Root ports

512 User I/O

Microchip FPGA MPF300TS-FCVG484I MPF300TS 300000 Cells, 20600 kB 484-Pin BGA
