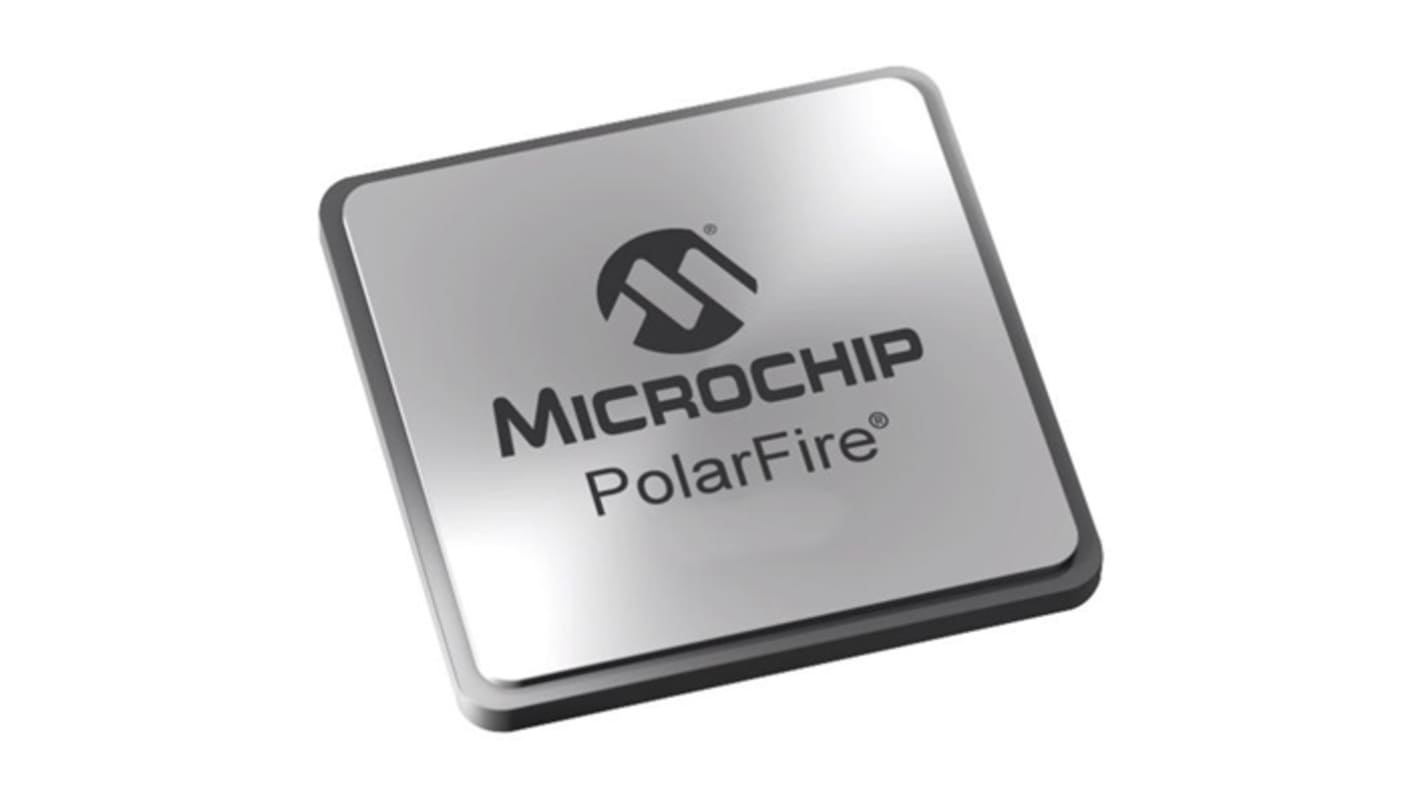

Microchip FPGA MPF050TL-FCVG484E 48000 Cells, 3600 kB 484-Pin BGA
- RS 제품 번호:
- 333-311
- 제조사 부품 번호:
- MPF050TL-FCVG484E
- 제조업체:
- Microchip
Subtotal (1 Box of 3 units)*
₩942,951.60
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | Per Box* |
|---|---|---|
| 3 + | ₩314,317.20 | ₩942,951.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 333-311
- 제조사 부품 번호:
- MPF050TL-FCVG484E
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Product Type | FPGA | |
| Number of Logic Cells | 48000 | |
| Package Type | BGA | |
| Pin Count | 484 | |
| Number of RAM Bits | 3600kB | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Product Type FPGA | ||
Number of Logic Cells 48000 | ||
Package Type BGA | ||
Pin Count 484 | ||
Number of RAM Bits 3600kB | ||
Standards/Approvals No | ||
Automotive Standard No | ||
- COO (Country of Origin):
- KR
The Microchip PolarFire FPGAs deliver the industry’s lowest power at mid range densities with exceptional security and reliability. Features 12.7G transceivers and offers up to 50% lower power than competing mid range FPGAs. The devices are ideal for a wide range of applications within wireline access networks and cellular infrastructure, defense and commercial aviation markets, as well as industrial automation and IoT markets.
48K logic elements
150 Math blocks
Total RAM 3.6 Mbits
uPROM 216 Kbits
DLL/PLL 8
4 SERDES lanes
2 PCIe Endpoints / Root ports
176 User I/O
