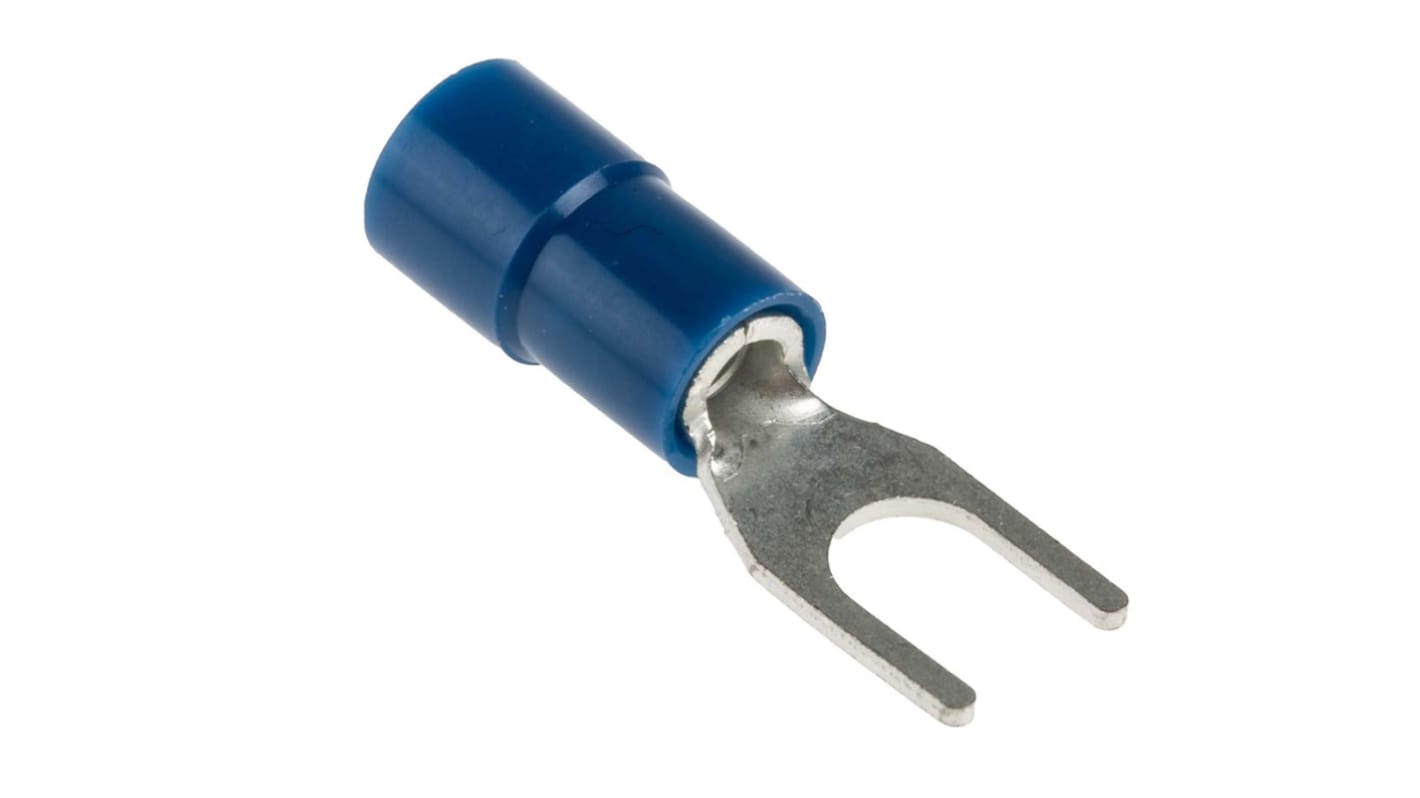

RS PRO, SVY Insulated Crimp Spade Connector, 16 AWG to 14 AWG, 4.3 mm Stud Size Vinyl, Blue
- RS 제품 번호:
- 613-9435
- Distrelec 제품 번호:
- 304-19-495
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 pack of 100 units)*
₩30,080.00
재고있음
- 추가로 2026년 3월 02일 부터 32,200 개 단위 배송
- 추가로 2026년 6월 23일 부터 16,000 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 100 - 400 | ₩300.80 | ₩30,080.00 |
| 500 - 2400 | ₩295.16 | ₩29,553.60 |
| 2500 - 4900 | ₩287.64 | ₩28,820.40 |
| 5000 - 24900 | ₩282.00 | ₩28,106.00 |
| 25000 + | ₩231.24 | ₩23,105.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 613-9435
- Distrelec 제품 번호:
- 304-19-495
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Crimp Spade Connector | |
| Series | SVY | |
| Insulation | Insulated | |
| Width | 6.4 mm | |
| Insulation Material | Vinyl | |
| Minimum Wire Size AWG | 16 AWG | |
| Maximum Wire Size AWG | 14 AWG | |
| Stud Size | 4.3 mm | |
| Overall Length | 22mm | |
| Hooked | No | |
| Colour | Blue | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Standards/Approvals | Certified for Canada | |
| Thickness | 0.8mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Crimp Spade Connector | ||
Series SVY | ||
Insulation Insulated | ||
Width 6.4 mm | ||
Insulation Material Vinyl | ||
Minimum Wire Size AWG 16 AWG | ||
Maximum Wire Size AWG 14 AWG | ||
Stud Size 4.3 mm | ||
Overall Length 22mm | ||
Hooked No | ||
Colour Blue | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Standards/Approvals Certified for Canada | ||
Thickness 0.8mm | ||
- COO (Country of Origin):
- TW
RS PRO Insulated Crimp Spade Connector, 1.5 mm² to 2.5 mm², 16 AWG to 14 AWG, M4 Stud Size Vinyl, Blue
Looking for a secure way to connect electrical wires when repairing or installing cable assemblies? This RS PRO insulated crimp spade connector makes it easy to link your signal. Simply insert the stranded wire into the tube and then connect the fork using screws.
This crimp spade terminal is colour-coded blue to correspond to the size of the wires it's used with, which must be in the range of 1.5 mm² and 2.5 mm². The connector is made from copper with tin plating, so it's an effective conductor. It has a spade thickness of 0.8 mm, is 6.4 mm wide and 22 mm long overall. The connector has an M4 stud size, which corresponds to a terminal diameter of 0.4 mm.
As part of the tried and trusted RS PRO range, this connector has been rigorously tested for both safety and reliability.
Features and Benefits
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Small Pack Size
Per Unit, RS stock no: 613-9435
Large Pack Size
RS stock no: 270-7659
Approvals
UL (E125401)
