RS PRO Insulated Crimp Spade Connector, 16 AWG to 14 AWG, 3.2 mm Stud Size Vinyl, Blue
- RS 제품 번호:
- 270-7483
- 제조업체:
- RS PRO
대량 구매 할인 기용 가능
Subtotal (1 Bag of 500 units)*
₩90,675.00
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량 | 한팩당 | Per Bag* |
|---|---|---|
| 500 - 2000 | ₩181.35 | ₩90,285.00 |
| 2500 - 4500 | ₩161.85 | ₩80,535.00 |
| 5000 + | ₩148.20 | ₩73,807.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 270-7483
- 제조업체:
- RS PRO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | RS PRO | |
| Product Type | Crimp Spade Connector | |
| Insulation | Insulated | |
| Width | 6mm | |
| Insulation Material | Vinyl | |
| Minimum Wire Size AWG | 16AWG | |
| Minimum Wire Size mm² | 1.5mm² | |
| Maximum Wire Size mm² | 2.5mm² | |
| Maximum Wire Size AWG | 14AWG | |
| Overall Length | 20mm | |
| Stud Size | 3.2 mm | |
| Colour | Blue | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Standards/Approvals | CE (RoHS)/REACH/UL/cUL | |
| Thickness | 0.8mm | |
| 모두 선택 | ||
|---|---|---|
브랜드 RS PRO | ||
Product Type Crimp Spade Connector | ||
Insulation Insulated | ||
Width 6mm | ||
Insulation Material Vinyl | ||
Minimum Wire Size AWG 16AWG | ||
Minimum Wire Size mm² 1.5mm² | ||
Maximum Wire Size mm² 2.5mm² | ||
Maximum Wire Size AWG 14AWG | ||
Overall Length 20mm | ||
Stud Size 3.2 mm | ||
Colour Blue | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Standards/Approvals CE (RoHS)/REACH/UL/cUL | ||
Thickness 0.8mm | ||
- COO (Country of Origin):
- TW
Small Pack Size
Per Unit, RS stock no: 613-9520
Large Pack Size
RS stock no: 270-7483

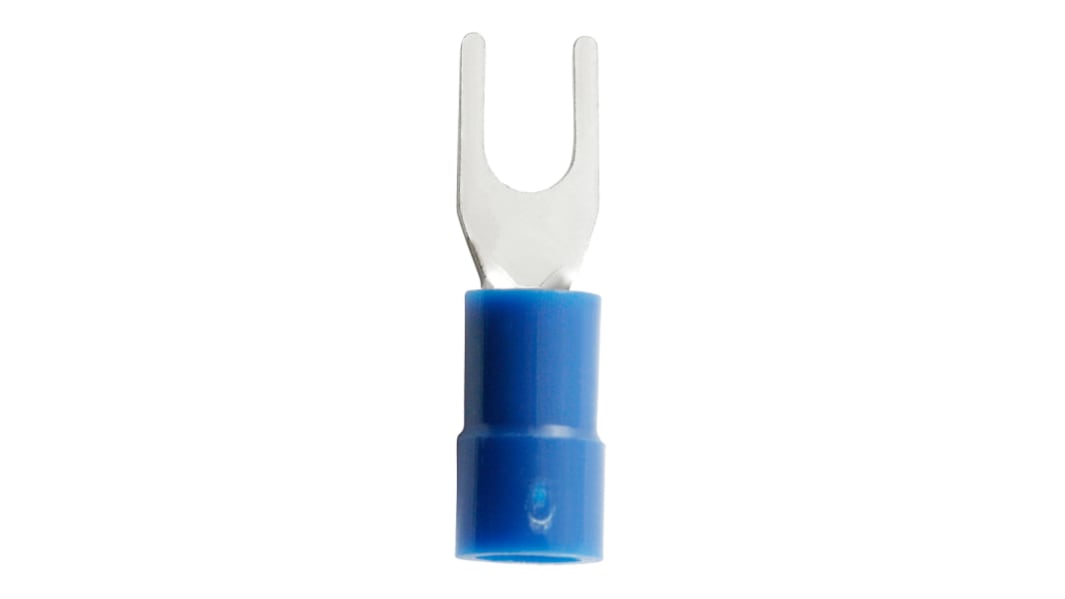

RS PRO Insulated Spade Connectors
These insulated crimp-spade terminals are your go-to solution for effortless wire termination without the hassle of soldering. Designed to connect wires to studs, bus bars, and more, they provide unmatched strength and durability with their copper construction and tin plating. But that's not all - these connectors are also insulated with a non-conductive, corrosion-resistant nylon material for ultimate safety and longevity.
Features and Benefits
