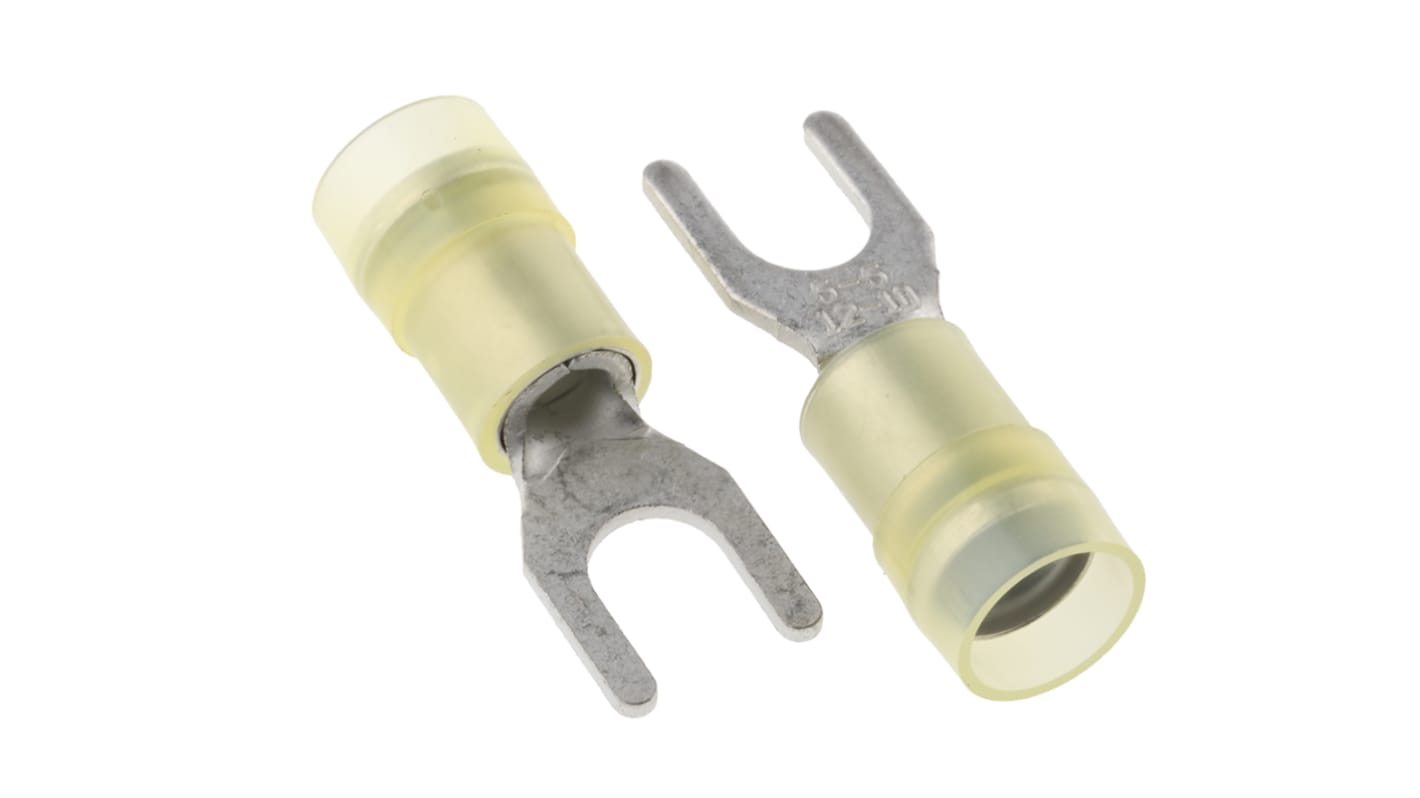

RS PRO Insulated Crimp Spade Connector, 4mm² to 6mm², 12AWG to 10AWG, M5 (#10) Stud Size Nylon, Yellow

모든 Fork Terminals 열람하기
대량 구매 할인 기용 가능

Subtotal (1 pack of 100 units)*

₩26,696.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 22일 부터 16,700 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
한팩당*
100 - 400₩266.96₩26,733.60
500 - 2400₩253.80₩25,436.40
2500 +₩208.68₩20,924.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
267-3947
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

Series

SNYD

Insulation

Insulated

Insulation Material

Nylon

Width

9mm

Minimum Wire Size mm²

4mm²

Maximum Wire Size mm²

6mm²

Minimum Wire Size AWG

12AWG

Maximum Wire Size AWG

10AWG

Stud Size

M5 (#10)

Colour

Yellow

Contact Plating

Tin

Overall Length

25.5mm

Contact Material

Copper

Thickness

1mm

COO (Country of Origin):
TW

RS PRO Insulated Double Crimp Spade Terminals


Tired of unreliable connections that leave you in a tangled mess? Look no further than RS PRO crimp terminals. These high-quality insulated fork terminals are here to simplify your electrical connections. With their durable construction and maximum conductivity, you can bid farewell to loose wires and hello to a secure and reliable connection every time.
Made from highly conductive copper and tin plated for maximum electrical conductivity and corrosion resistance, these crimp connectors are the epitome of durability. Say goodbye to flimsy connections that cause headaches and hello to the perfect connection with RS PRO Crimp Connectors. Get ready to experience hassle-free electrical work like never before.

Features and Benefits


  • Fork terminals

  • Contact material: Copper

  • Contact Plating: Tin

  • Nylon Insulated

  • Colour-coded

  • Corrosion resistance
