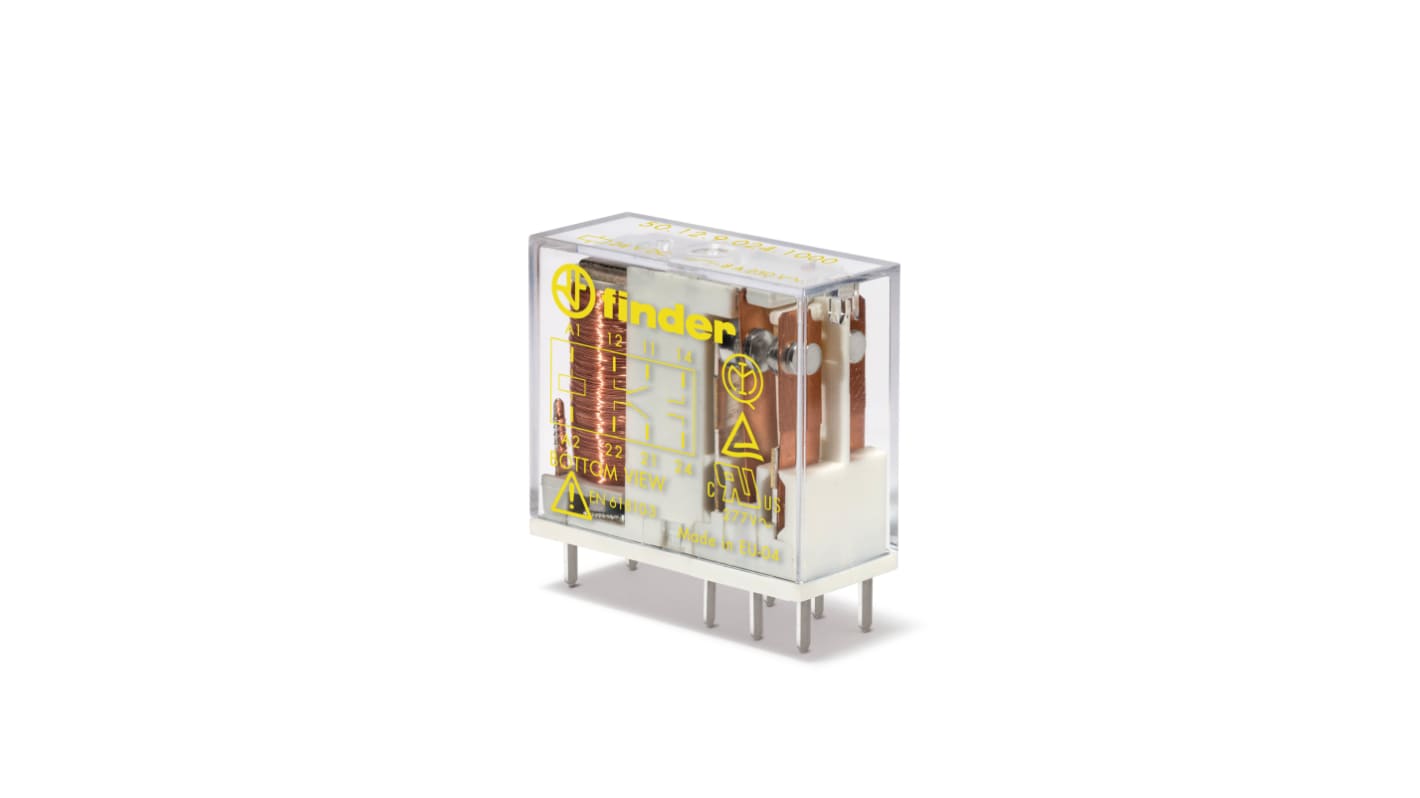

Finder PCB Force Guided Relay, 12 V dc Coil Voltage, 2-Pole, DPDT

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Force Guided Relays 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩33,689.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 60 개 단위 배송 준비 완료
  • 추가로 2026년 3월 12일 부터 66 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 99₩33,689.60
100 - 499₩32,336.00
500 +₩30,982.40

* 참고 가격: 실제 구매가격과 다를 수 있습니다

포장 옵션
RS 제품 번호:
733-5104
제조사 부품 번호:
50.12.9.012.5000
제조업체:
Finder
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Finder

Coil Voltage

12 V dc

Product Type

Force Guided Relay

Mount Type

PCB

Contact Configuration

DPDT

Number of Poles

2

Coil Resistance

205Ω

Switching Current

8 A

Coil Power

700mW

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

70°C

Terminal Type

Solder

Depth

12.4mm

Length

29mm

Height

25mm

Isolation Coil To Contact

6kV

Series

50

Contact Material

Gold Silver Alloy

Finder Series 50 Force Guided Relay, 12V DC Coil Voltage, 8A Switching Current - 50.12.9.012.5000


This force guided relay is designed for reliable switching in various applications. Suitable for PCB mounting, it features two poles with a contact configuration of DPDT and operates at a coil voltage of 12V DC. The relay ensures safety through its high isolation capabilities, with 6kV between the coil and contacts.

Features & Benefits


• Forcibly guided contacts enhance operational safety

• Cadmium-free contact materials ensure environmental responsibility

• 8A maximum switching current provides robust performance

• High physical separation reduces the risk of contact malfunction

• Flux-proof design aids in electronic stability

• Designed for medium duty switching, ideal for DC loads

Applications


• Utilised in escalators for secure operational control

• Suitable for use in medical devices to ensure reliability

• Implemented in hospitals for critical equipment management

• Employed in lifts and elevators to optimise safety

• Effective in wood-processing machinery for reliable functionality

• Applied in hoists and cranes for robust load management

What kind of isolation can be expected with this relay?


This relay offers a coil to contact isolation of 6kV, which is effective for preventing electrical interference and ensuring safety in operational environments.

How does the contact configuration affect this relay's performance?


The DPDT contact configuration allows for versatile switching options, supporting both normally open and normally closed circuits, enhancing its adaptability in various systems.

What is the ambient temperature range for operation?


Operationally, this relay can function effectively in temperatures ranging from -40°C to +70°C, making it suitable for diverse environmental conditions.

What are the recommended applications for maximum efficiency?


It is recommended for medium duty switching, particularly within DC load applications, where its features ensure reliability and safety meet operational demands.

How does this relay perform with different load types?


This relay can handle various load types, including an 8A rated current at 250V AC for resistive loads, ensuring flexibility in numerous industrial settings.
