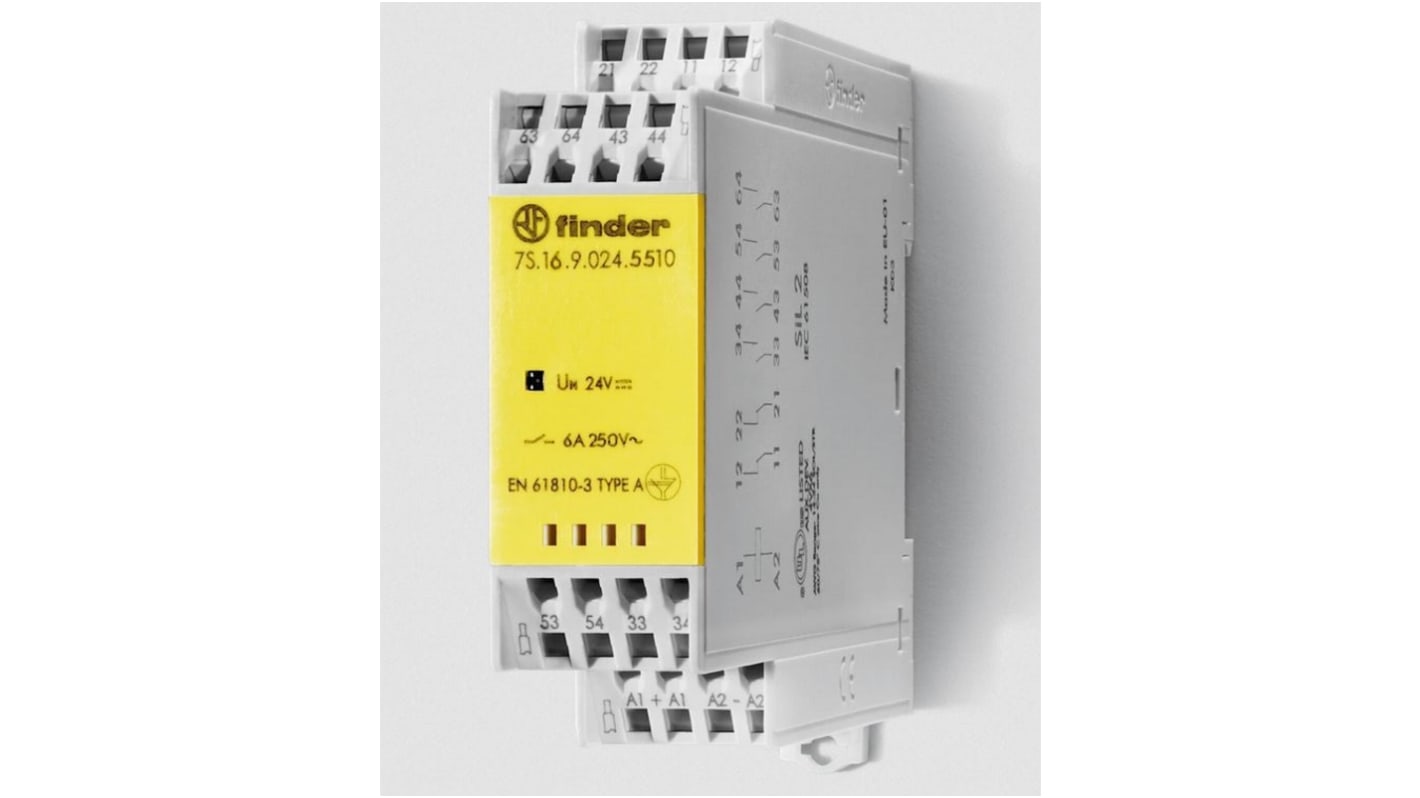

Finder DIN Rail Force Guided Relay, 24V dc Coil Voltage, 6-Pole, 5 NO/1 NC

RS 제품 번호:: 249-4456
제조사 부품 번호:: 7S.16.9.024.5510
제조업체:: Finder

Finder DIN Rail Force Guided Relay, 24V dc Coil Voltage, 6-Pole, 5 NO/1 NC

Subtotal (1 unit)*

₩223,280.00

추가로 2026년 9월 14일 부터 51 개 단위 배송
추가로 2026년 10월 09일 부터 15 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩223,280.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 249-4456
제조사 부품 번호:: 7S.16.9.024.5510
제조업체:: Finder

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Finder
	Product Type	Force Guided Relay
	Mount Type	DIN Rail
	Contact Configuration	5 NO/1 NC
	Number of Poles	6
	Coil Resistance	571Ω
	Coil Power	2.3W
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	70°C
	Series	7S
	Contact Material	Gold Plated Silver Nickel, Silver Tin Oxide
	Isolation Coil To Contact	6kV

	모두 선택
	브랜드 Finder
	Product Type Force Guided Relay
	Mount Type DIN Rail
	Contact Configuration 5 NO/1 NC
	Number of Poles 6
	Coil Resistance 571Ω
	Coil Power 2.3W
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 70°C
	Series 7S
	Contact Material Gold Plated Silver Nickel, Silver Tin Oxide
	Isolation Coil To Contact 6kV

COO (Country of Origin):: IT

Finder Series 7S Force Guided Relay, 24V DC Coil Voltage, 6 Poles - 7S.16.9.024.5510

This force guided relay is a highly efficient component designed for various automation applications. With a robust coil voltage of 24V DC, the 5NO/1NC relay configuration ensures reliable operation across different settings. This module features a compact design suitable for mounting on 35mm rails, maintaining optimum performance in challenging environments, including extreme temperatures ranging from -40°C to +70°C.

Features & Benefits

• Built with AgSnO2 and gold-plated contacts for durability

• Capable of switching AC loads up to 250V

• Features visual coil status indication with an LED

• Extended operating range provides operational versatility

Applications

• Used in control panels for hoists and cranes

• Ideal for automating processes in the chemical and petrochemical industries

• Suitable for wiring in lift and escalator systems

• Utilised in wood-processing machinery for task automation

• Appropriate for automatic car wash

What is the operational efficiency of this relay in terms of cycle life?

This relay is designed for durability, boasting a mechanical cycle life of up to 10 million cycles and an electrical life of 100,000 cycles under rated load conditions.

How does the relay handle high currents?

It can manage a maximum switching current of 15A, making it adept for demanding applications. This capability ensures reliable and safe operations even under heavy loads.

What types of environments can this relay operate in effectively?

The relay functions well within a broad temperature range of -40°C to +70°C, making it suitable for both low and high-temperature environments without performance degradation.
