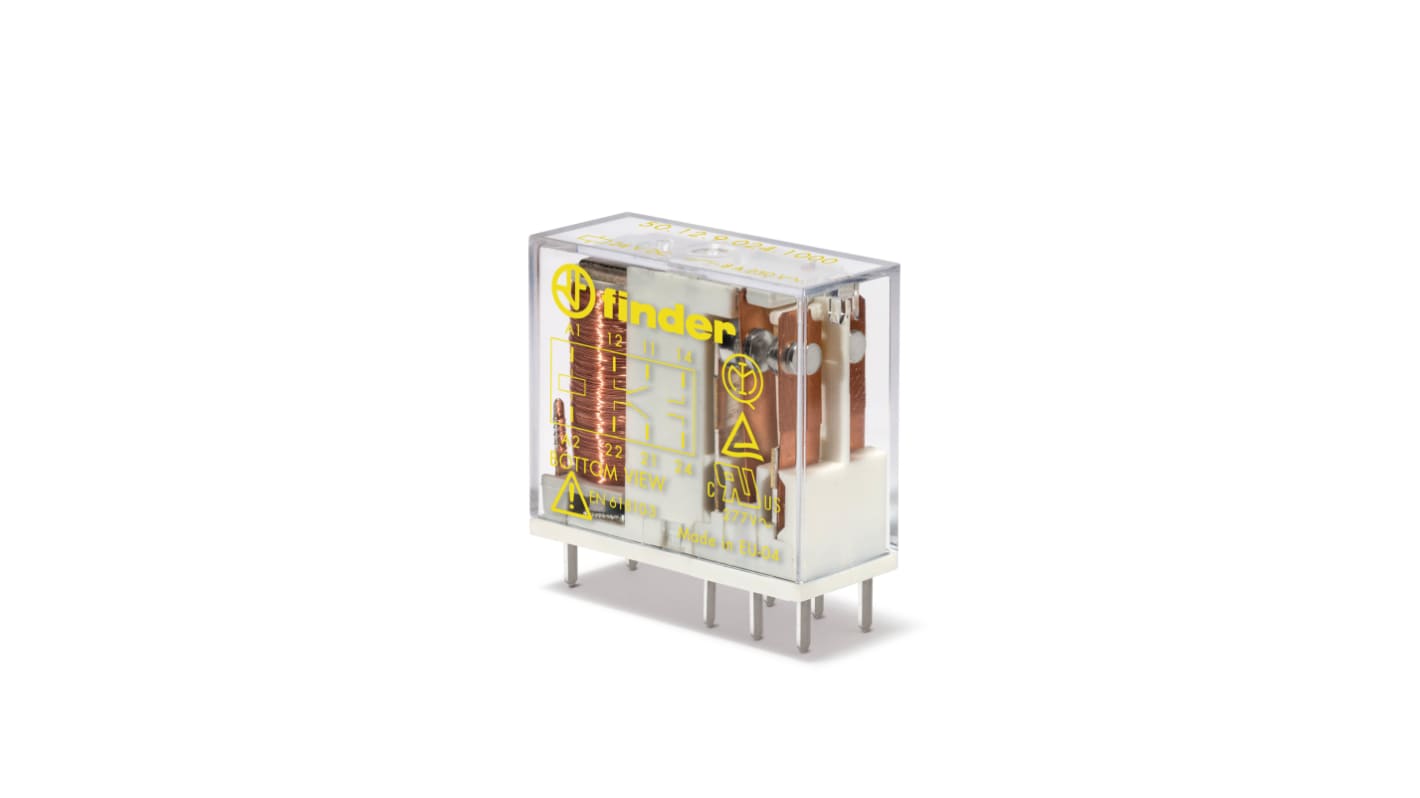

Finder PCB Force Guided Relay, 110 V dc Coil Voltage, 2-Pole, DPDT

모든 Force Guided Relays 열람하기

Subtotal (1 unit)*

₩25,699.60

Add to Basket
수량 선택 또는 입력
재고있음
  • 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩25,699.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
102-484
제조사 부품 번호:
50.12.9.110.1000
제조업체:
Finder
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Finder

Coil Voltage

110 V dc

Product Type

Force Guided Relay

Mount Type

PCB

Contact Configuration

DPDT

Number of Poles

2

Coil Resistance

17.25Ω

Switching Current

8 A

Coil Power

700mW

Minimum Operating Temperature

-40°C

Terminal Type

Solder

Maximum Operating Temperature

70°C

Length

29mm

Depth

12.4mm

Height

25mm

Isolation Coil To Contact

6kV

Contact Material

Silver Alloy

Series

50

COO (Country of Origin):
IT

Finder Series 50 Force Guided Relay, 110V DC Coil Voltage, DPDT Contact Configuration - 50.12.9.110.1000


This force guided relay is designed for PCB mounting and features a DPDT configuration, facilitating reliable and secure operation. It operates on a coil voltage of 110V DC, ensuring a compact form factor with dimensions of 29mm in length, 25mm in height, and a depth of 12.4mm. Built to meet the EN61810-3 standards, this relay assures high performance and safety in various applications.

Features & Benefits


• Incorporates 2 CO contacts for versatile switching options

• Achieves high switching currents up to 15A

• Utilises silver alloy relay contacts for superior conductivity

• Designed for isolation between coil and contacts of 6kV

• Ideal for medium duty switching, especially with DC loads

• Features a long operational life, sustaining 10 million mechanical cycles

Applications


• Utilised in escalators for safe operational control

• Suitable for medical and dental machinery

• Employed in hospital lift systems for reliable service

• Used with hoists and cranes in industrial operations

• Applicable in wood-processing machines for automation

What is the typical lifespan of this device under optimal conditions?


It features an electrical lifespan of 100,000 cycles and a mechanical lifespan of up to 10 million cycles, ensuring long-lasting performance in diverse applications.

How does the isolation capability enhance safety during operation?


With 6 kV isolation between the coil and contacts, it significantly reduces the risk of electrical interference, thereby enhancing safety in critical applications.

What materials are used in the contacts, and how does this affect performance?


The contacts are made from silver alloy, which provides excellent conductivity and enhances the relay’s performance across various loads, even under demanding conditions.
