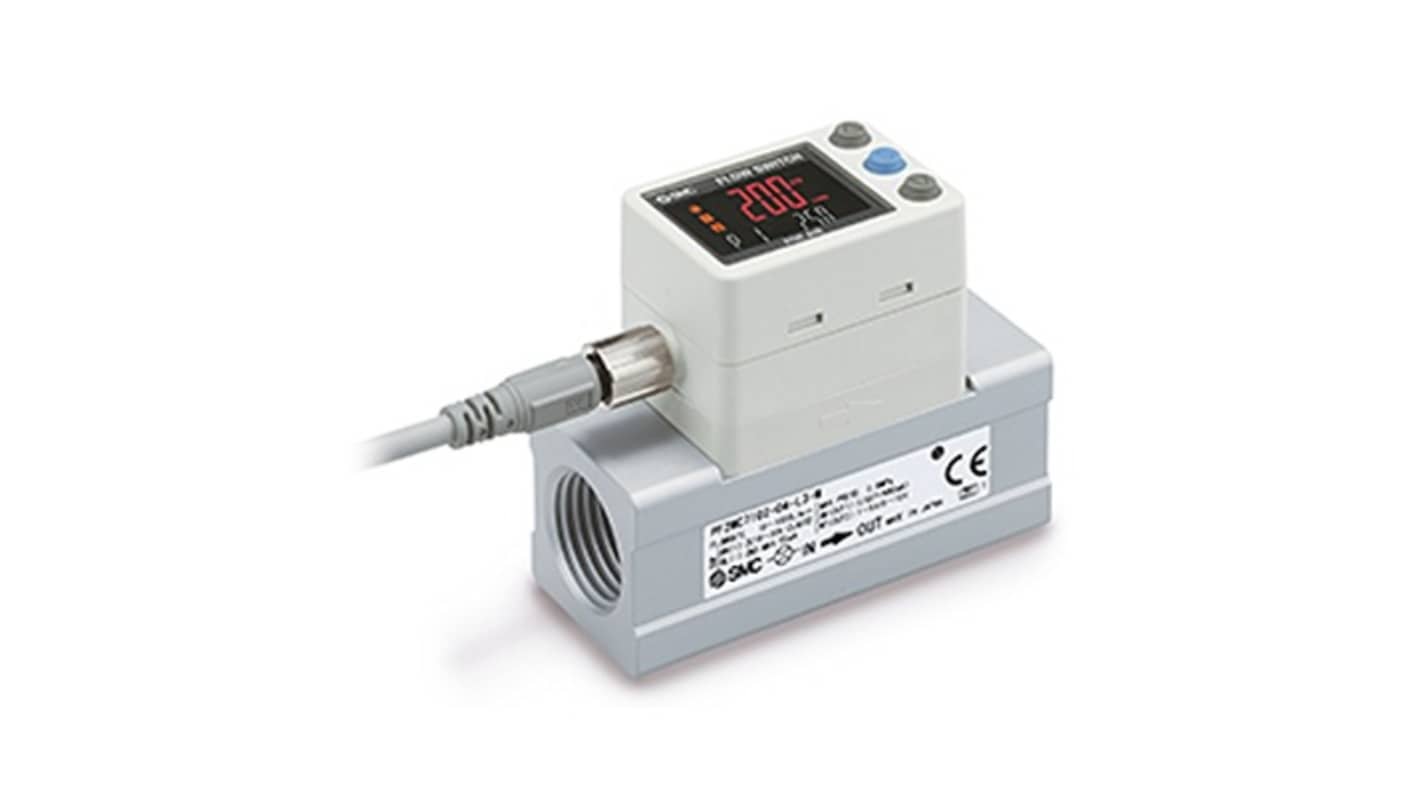

SMC PF2MC Series Digital Flow Switch Flow Sensor for Air, 5L/min Min, 500L/min Max
- RS 제품 번호:
- 456-824
- 제조사 부품 번호:
- PF2MC7501-F04-F
- 제조업체:
- SMC
Subtotal (1 unit)*
₩806,383.50
재고있음
- 5 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩806,383.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 456-824
- 제조사 부품 번호:
- PF2MC7501-F04-F
- 제조업체:
- SMC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SMC | |
| Product Type | Flow Sensor | |
| Media Monitored | Air | |
| Device Type | Digital Flow Switch | |
| Minimum Flow Rate | 5L/min | |
| Housing Material | Aluminium, PPS, Gold, Hydrogenated Nitrile Butadiene Rubber, 304 Stainless Steel, Germanium Tetrafluoride, Silicon | |
| Maximum Flow Rate | 500L/min | |
| Connection Type | M8 | |
| Maximum Pressure | 1.2MPa | |
| Minimum Media Temperature | 0°C | |
| Maximum Supply Voltage | 24V dc | |
| IP Rating | IP65 | |
| Maximum Media Temperature | 50°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | RoHS, UL (CSA), CE, EMC | |
| Series | PF2MC | |
| Current Rating | 80mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 SMC | ||
Product Type Flow Sensor | ||
Media Monitored Air | ||
Device Type Digital Flow Switch | ||
Minimum Flow Rate 5L/min | ||
Housing Material Aluminium, PPS, Gold, Hydrogenated Nitrile Butadiene Rubber, 304 Stainless Steel, Germanium Tetrafluoride, Silicon | ||
Maximum Flow Rate 500L/min | ||
Connection Type M8 | ||
Maximum Pressure 1.2MPa | ||
Minimum Media Temperature 0°C | ||
Maximum Supply Voltage 24V dc | ||
IP Rating IP65 | ||
Maximum Media Temperature 50°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals RoHS, UL (CSA), CE, EMC | ||
Series PF2MC | ||
Current Rating 80mA | ||
- COO (Country of Origin):
- JP
The SMC Digital Flow Switch is designed for precise flow monitoring of dry air and nitrogen (N2). It features a 3-colour, 3-screen display for easy and clear flow status indication, with outputs including NPN/PNP, analogue (voltage/current), and external input for versatile integration with various control systems.
IP65 rated
Flow ratio 100:1
