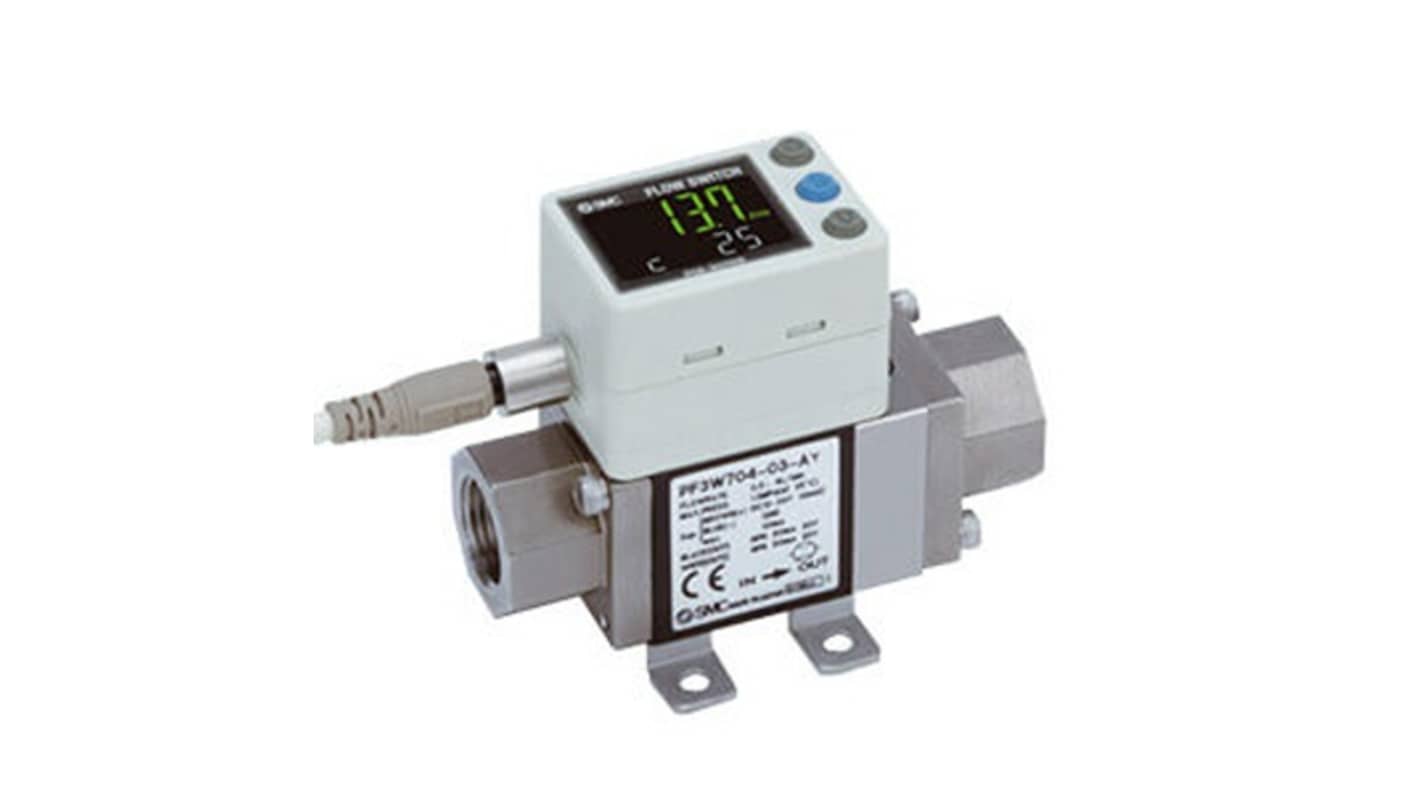

SMC PF3W704 Series Digital Flow Sensor Flow Sensor for Ethylene Glycol Aqueous Solution, Water, 0.5L/min Min, 4L/min Max
- RS 제품 번호:
- 402-788
- 제조사 부품 번호:
- PF3W704-F03-EN-M
- 제조업체:
- SMC
Subtotal (1 unit)*
₩1,070,004.00
제조사가 재고 비축중
- 2026년 5월 11일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩1,070,004.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 402-788
- 제조사 부품 번호:
- PF3W704-F03-EN-M
- 제조업체:
- SMC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SMC | |
| Media Monitored | Ethylene Glycol Aqueous Solution, Water | |
| Product Type | Flow Sensor | |
| Device Type | Digital Flow Sensor | |
| Minimum Flow Rate | 0.5L/min | |
| Housing Material | Chlorinated Polyvinyl Chloride, Fluorelastomer, Polyphenylene Sulphide | |
| Maximum Flow Rate | 4L/min | |
| Maximum Pressure | 1MPa | |
| Maximum Supply Voltage | 24V dc | |
| IP Rating | IP65 | |
| Minimum Media Temperature | 0°C | |
| Maximum Media Temperature | 90°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | IEC61131-9 | |
| Series | PF3W704 | |
| Current Rating | 80mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 SMC | ||
Media Monitored Ethylene Glycol Aqueous Solution, Water | ||
Product Type Flow Sensor | ||
Device Type Digital Flow Sensor | ||
Minimum Flow Rate 0.5L/min | ||
Housing Material Chlorinated Polyvinyl Chloride, Fluorelastomer, Polyphenylene Sulphide | ||
Maximum Flow Rate 4L/min | ||
Maximum Pressure 1MPa | ||
Maximum Supply Voltage 24V dc | ||
IP Rating IP65 | ||
Minimum Media Temperature 0°C | ||
Maximum Media Temperature 90°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals IEC61131-9 | ||
Series PF3W704 | ||
Current Rating 80mA | ||
- COO (Country of Origin):
- JP
The SMC Digital Flow Switch for Water designed for precise monitoring and control of water flow rates in pneumatic systems. It features a three-color display for easy readability and accurate measurement, making it ideal for industrial applications.
Compact design for easy integration into systems
Durable construction for long-lasting performance
Suitable for a wide range of water flow rate applications
