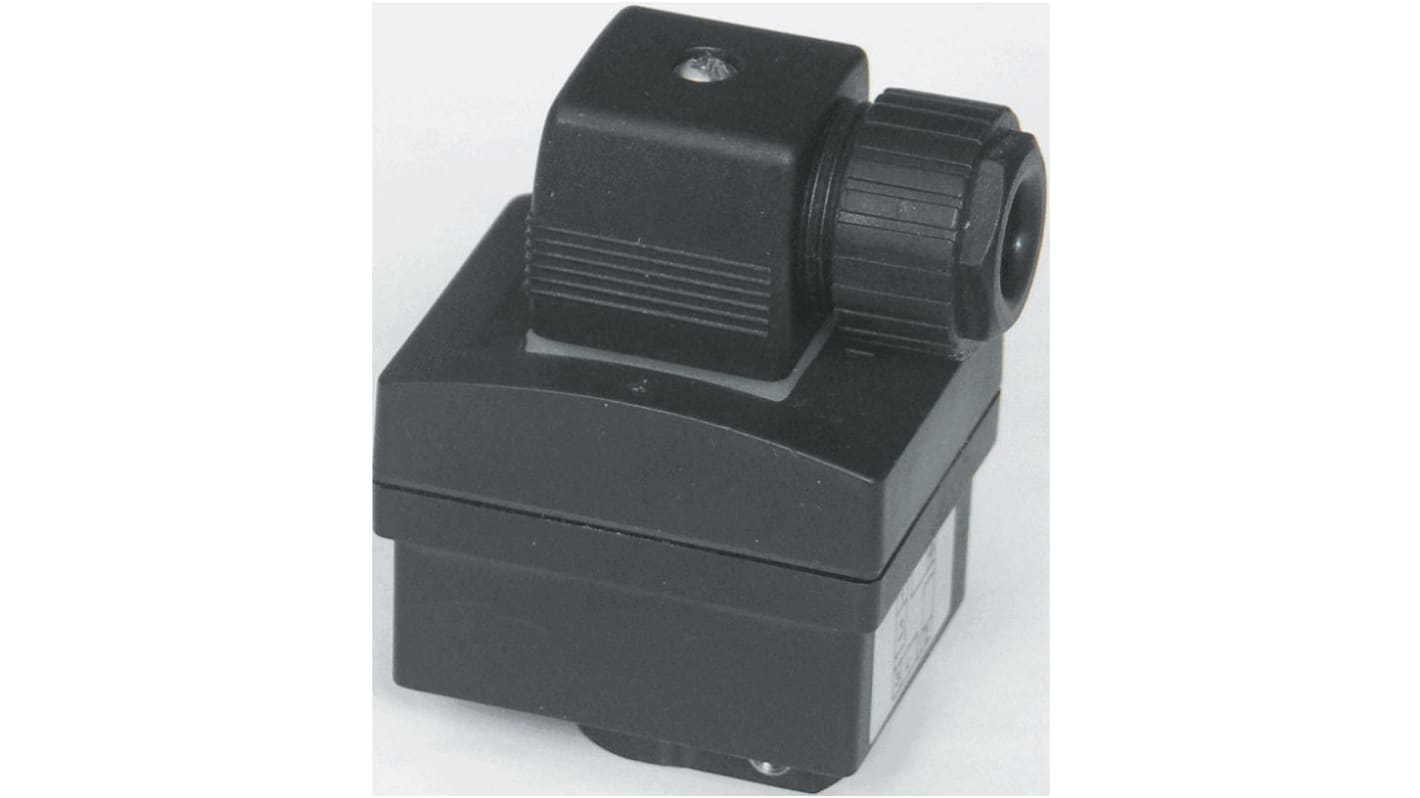

Burkert Compact Mount Flow Controller, PNP Output, 12 → 36 V dc, DN 6 → 50 mm Pipe
- RS 제품 번호:
- 619-4218
- 제조사 부품 번호:
- 449694
- 제조업체:
- Burkert
Subtotal (1 unit)*
₩595,038.80
일시적 품절
- 2026년 1월 07일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩595,038.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 619-4218
- 제조사 부품 번호:
- 449694
- 제조업체:
- Burkert
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Burkert | |
| Electrical Connection | Cable Plug | |
| Control Output | PNP | |
| Mounting Style | Compact | |
| Supply Voltage | 12 → 36 V dc | |
| Pipe Diameter Range | DN 6 → 50 mm | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | +80°C | |
| 모두 선택 | ||
|---|---|---|
브랜드 Burkert | ||
Electrical Connection Cable Plug | ||
Control Output PNP | ||
Mounting Style Compact | ||
Supply Voltage 12 → 36 V dc | ||
Pipe Diameter Range DN 6 → 50 mm | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- FR
SE30 HT/S030 HT Flow Control Pulse Transmitter
Designed for high temperature, continuous flow measurement of neutral, slightly aggressive, solid-free liquids, in hazardous environments.
For liquid flow measurement
Frequency output with pulse signal proportional to the flow rate
Interfaces via S030HT pipework flow adaptor with pressure-tight quarter turn mounting. Stainless steel construction permits high temperature (160°C) and pressure ranges (0-40barg)
Connects to remote display, transmitter, batch controller, PLC or SCADA
Typical applications are in hot process cleaning systems (CIP/SIP), hot water, cooling systems, industrial washing machines and chemical plants
Supply voltage: 12-30Vdc
Output signal Open collector, PNP: supply voltage; NPN: 0.2-30Vdc; max. frequency 250Hz
Accuracy up to ≤ 1% FS within 0.5 – 10 m/s (1.0 to 32.8 fps) – optimal velocity 2 – 3 m/s
Medium temperature: -20°C → 160°C
Fluid pressure range: PN40 (dependent on installation adaptor fitting)
Ingress protection: IP65 with cable plug
Body material: PPS, glass fibre reinforced
Frequency output with pulse signal proportional to the flow rate
Interfaces via S030HT pipework flow adaptor with pressure-tight quarter turn mounting. Stainless steel construction permits high temperature (160°C) and pressure ranges (0-40barg)
Connects to remote display, transmitter, batch controller, PLC or SCADA
Typical applications are in hot process cleaning systems (CIP/SIP), hot water, cooling systems, industrial washing machines and chemical plants
Supply voltage: 12-30Vdc
Output signal Open collector, PNP: supply voltage; NPN: 0.2-30Vdc; max. frequency 250Hz
Accuracy up to ≤ 1% FS within 0.5 – 10 m/s (1.0 to 32.8 fps) – optimal velocity 2 – 3 m/s
Medium temperature: -20°C → 160°C
Fluid pressure range: PN40 (dependent on installation adaptor fitting)
Ingress protection: IP65 with cable plug
Body material: PPS, glass fibre reinforced
