Omron D6F Series, Compact Mass Flow Controller, 3 L/min, Analogue Output 26.4 V dc
- RS 제품 번호:
- 619-1865
- 제조사 부품 번호:
- D6F-03A3-000
- 제조업체:
- Omron
Subtotal (1 unit)*
₩377,767.20
일시적 품절
- 2028년 6월 22일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩377,767.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 619-1865
- 제조사 부품 번호:
- D6F-03A3-000
- 제조업체:
- Omron
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Omron | |
| Product Type | Mass Flow Controller | |
| Maximum Flow Rate | 3L/min | |
| Terminal Type | 3 Wire Connector | |
| Control Output | Analogue | |
| Mount Type | Compact | |
| Minimum Operating Temperature | 0°C | |
| Maximum Supply Voltage | 26.4V dc | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Series | D6F | |
| Current Rating | 15 mA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Omron | ||
Product Type Mass Flow Controller | ||
Maximum Flow Rate 3L/min | ||
Terminal Type 3 Wire Connector | ||
Control Output Analogue | ||
Mount Type Compact | ||
Minimum Operating Temperature 0°C | ||
Maximum Supply Voltage 26.4V dc | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Series D6F | ||
Current Rating 15 mA | ||
- COO (Country of Origin):
- JP

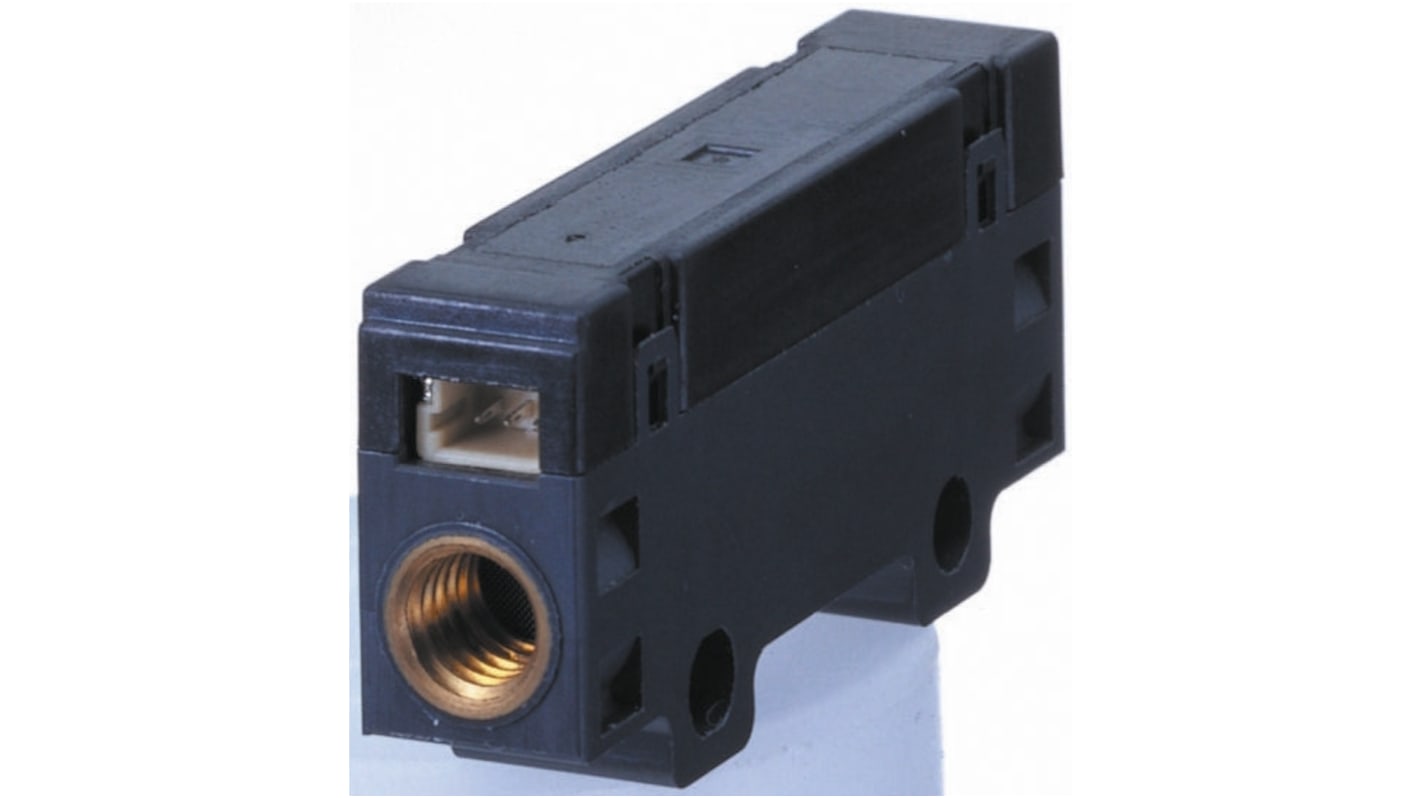

MEMS Mass Flow Sensor - Compact
Ultra Compact, intelligent sensors featuring MEMS technology for precision mass airflow.
Precision unidirectional mass airflow up to 3 LPM
Stable output across full scale
Ultra-compact size 36.6 (D) x 8 (W) x 16.8 (H) mm
Low power consumption
Joint type Bamboo with external dia. 7.4mm (min.); 8.6mm (max.) passage diameter 4mm.
Cable supplied separately see stock number 619-1887
Applications include; Pick & Place systems, industrial processes, oxygen contentrators/conservators, leak detection, spectrososcopy, mass flow controllers, scientific/test equipment, fuel cell control
Warning
Air to be measured needs to be dry and free from large particles e.g. dust, oil, mist
