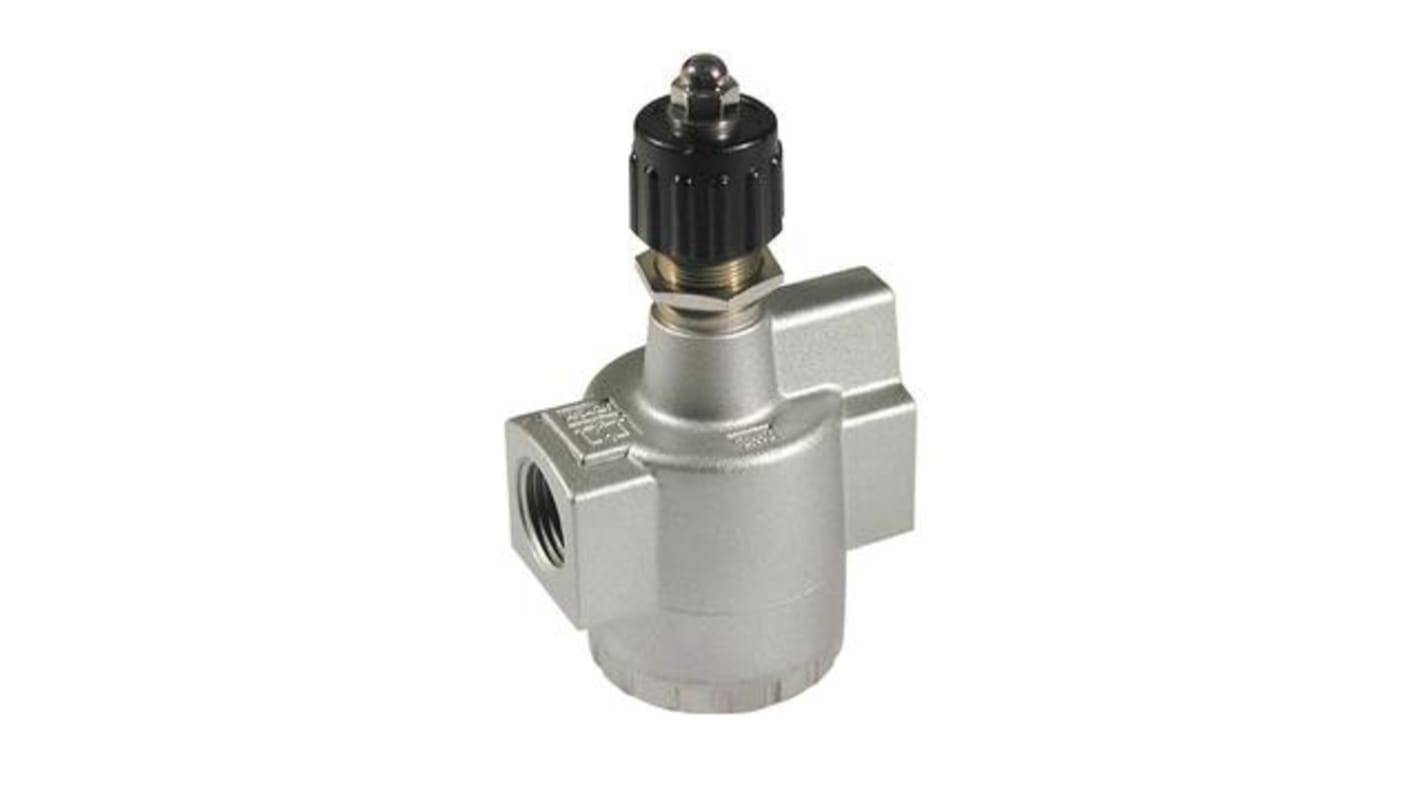

SMC AS Series, Panel Flow Controller, 230 L/min, 6 mm Pipe
- RS 제품 번호:
- 161-3082
- 제조사 부품 번호:
- AS2301FS1-02-06S
- 제조업체:
- SMC
Subtotal (1 unit)*
₩40,462.50
제조사가 재고 비축중
- 2026년 6월 29일 부터 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩40,462.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 161-3082
- 제조사 부품 번호:
- AS2301FS1-02-06S
- 제조업체:
- SMC
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | SMC | |
| Maximum Flow Rate | 230L/min | |
| Product Type | Flow Controller | |
| Mount Type | Panel | |
| Maximum Pipe Diameter | 6mm | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 60°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | No | |
| Series | AS | |
| 모두 선택 | ||
|---|---|---|
브랜드 SMC | ||
Maximum Flow Rate 230L/min | ||
Product Type Flow Controller | ||
Mount Type Panel | ||
Maximum Pipe Diameter 6mm | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 60°C | ||
Hazardous Area Certification No | ||
Standards/Approvals No | ||
Series AS | ||
제외
- COO (Country of Origin):
- JP
SMC Series AS Flow Controller, 230L/min Maximum Flow Rate, 6mm Maximum Pipe Diameter - AS2301FS1-02-06S
This flow controller regulates pneumatic flow within panel-mounted systems used across automation and mechanical installations. It is designed for inline control of compressed Air where a Compact regulator is required to manage throughput and maintain consistent flow in confined assemblies.
Features & Benefits
• Maximum throughput 230 L/min enables high-volume pneumatic handling
• Operates between -5°C and 60°C for varied environmental conditions
• Accepts up to 6mm pipe connections for small-bore installations
• Panel mounting reduces external footprint and eases integration
• Simple mechanical control supports precise flow adjustment
• Operates between -5°C and 60°C for varied environmental conditions
• Accepts up to 6mm pipe connections for small-bore installations
• Panel mounting reduces external footprint and eases integration
• Simple mechanical control supports precise flow adjustment
**Applications**
• Suitable for pneumatic system flow balancing in automation panels
• Ideal for controlling actuator speed in electronics manufacturing lines
• Used with small-bore tubing in laboratory instrumentation setups
• Can be used for Air supply regulation in electrical cabinet assemblies
• Ideal for controlling actuator speed in electronics manufacturing lines
• Used with small-bore tubing in laboratory instrumentation setups
• Can be used for Air supply regulation in electrical cabinet assemblies
What mounting arrangement does it require for installation?
It is designed for panel attachment, enabling integration into control panels or instrument racks with a secure mount point for fixed installation.
How does temperature affect operational range?
The unit functions reliably within a -5°C to 60°C span, ensuring performance across typical indoor and sheltered industrial environments.
What pipe size is compatible with the inlet and outlet?
The controller is compatible with 6mm bore piping, suited to Compact pneumatic networks.
What maximum flow can be expected when sising for systems?
Design calculations should use a Peak throughput figure of 230 L/min when determining valve and supply capacity.
