Sensata / Cynergy3 RSF70 Series Horizontal Nitrile Rubber (NBR) Float Switch, NO/NC, 240 V ac ac Max, 120 V dc dc Max
- RS 제품 번호:
- 869-7589
- 제조사 부품 번호:
- RSF74YNP
- 제조업체:
- Sensata / Cynergy3
Subtotal (1 unit)*
₩35,156.00
재고있음
- 118 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩35,156.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 869-7589
- 제조사 부품 번호:
- RSF74YNP
- 제조업체:
- Sensata / Cynergy3
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Sensata / Cynergy3 | |
| Product Type | Float Switch | |
| Mount Type | Horizontal | |
| Switch Output | NO/NC | |
| Housing Material | Polypropylene | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 100°C | |
| Maximum AC Voltage | 240V ac | |
| Maximum DC Voltage | 120V dc | |
| Maximum Current | 600mA | |
| Gasket Material | Nitrile Rubber (NBR) | |
| Standards/Approvals | NSF Approved, WRAS | |
| Hazardous Area Certification | No | |
| Series | RSF70 | |
| 모두 선택 | ||
|---|---|---|
브랜드 Sensata / Cynergy3 | ||
Product Type Float Switch | ||
Mount Type Horizontal | ||
Switch Output NO/NC | ||
Housing Material Polypropylene | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 100°C | ||
Maximum AC Voltage 240V ac | ||
Maximum DC Voltage 120V dc | ||
Maximum Current 600mA | ||
Gasket Material Nitrile Rubber (NBR) | ||
Standards/Approvals NSF Approved, WRAS | ||
Hazardous Area Certification No | ||
Series RSF70 | ||
- COO (Country of Origin):
- CN

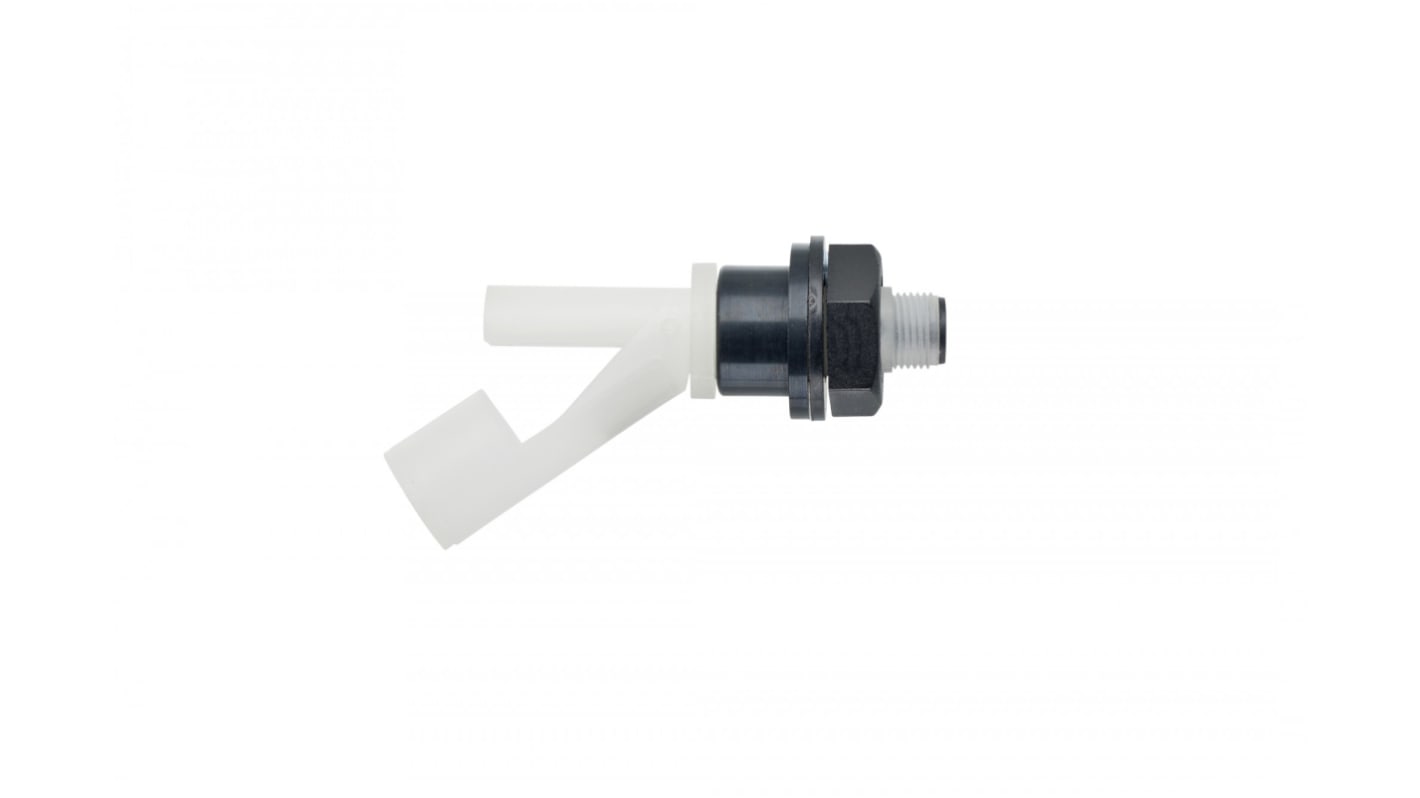

Sensata Cynergy3 Horizontal Float Switch, Polypropylene, 240V AC - RSF70 Series - RSF74YNP
Need to monitor liquid levels in your system but don't have access to the inside of the tank? This Sensata Cynergy3 horizontal float switch is designed for external mounting. A nitrile gasket and back nut ensure a tight seal to prevent leaks. As the nitrile material is resistant to abrasion and chemicals, it will last a long time without wearing down. You'll see float switches like this one installed alongside pumps and alarm systems in industrial containers, wells and sewage systems. They're also commonly found in vending machines and food processing equipment.
Features & Benefits
• Wide operating temperature range of -20°C to +100°C for use in demanding environments
• NO/NC (normally closed/normally open) configuration offers flexibility for different set-ups
• M12 plug for easy connections without the need for additional tooling
• Polypropylene (PP) body material for durability and chemical resistance
How does the product work?
This switch consists of a pivoting actuator with a magnet that moves as the liquid level rises and falls. This causes a change in the electromagnetic field. When the switch's sensor detects this change, it triggers the contacts to open or close.
