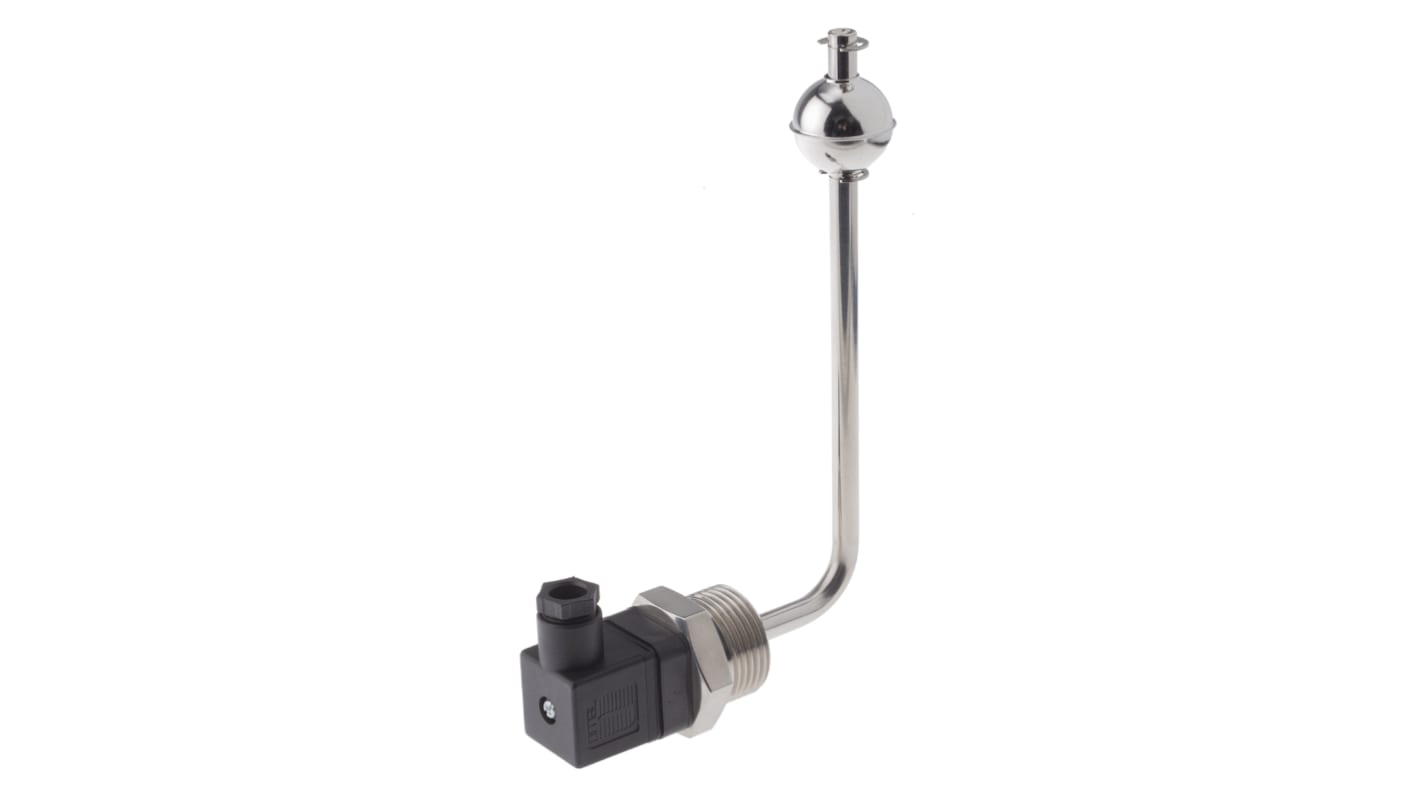

Sensata / Cynergy3 SSV66A-1G Series Vertical Float Switch, 1 m Cable, NO/NC, 300 V ac ac Max, 300 V dc dc Max
- RS 제품 번호:
- 756-4172
- 제조사 부품 번호:
- SSV66A141S1GP
- 제조업체:
- Sensata / Cynergy3
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
- RS 제품 번호:
- 756-4172
- 제조사 부품 번호:
- SSV66A141S1GP
- 제조업체:
- Sensata / Cynergy3
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Sensata / Cynergy3 | |
| Product Type | Float Switch | |
| Mount Type | Vertical | |
| Switch Output | NO/NC | |
| Housing Material | 316L Stainless Steel | |
| Cable Length | 1m | |
| Maximum Operating Temperature | 120°C | |
| Maximum AC Voltage | 300V ac | |
| Maximum DC Voltage | 300V dc | |
| Maximum Current | 500mA | |
| Maximum Pressure | 30bar | |
| Standards/Approvals | No | |
| Series | SSV66A-1G | |
| Hazardous Area Certification | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Sensata / Cynergy3 | ||
Product Type Float Switch | ||
Mount Type Vertical | ||
Switch Output NO/NC | ||
Housing Material 316L Stainless Steel | ||
Cable Length 1m | ||
Maximum Operating Temperature 120°C | ||
Maximum AC Voltage 300V ac | ||
Maximum DC Voltage 300V dc | ||
Maximum Current 500mA | ||
Maximum Pressure 30bar | ||
Standards/Approvals No | ||
Series SSV66A-1G | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- TW
Vertical Float Switches - Horizontal Mount
The SSV66 side entry vertical float switches can be mounted to the outside of the tank without requiring access to the inside of the tank via a G1 boss.
20 bar max working pressure
Reversible switch action
DIN 43650 connector
