Sensata / Cynergy3 LM Series Cable Float Switch, 5 m Cable, Direct Load, 110 V dc Max
- RS 제품 번호:
- 454-9098
- 제조사 부품 번호:
- LM10B
- 제조업체:
- Sensata / Cynergy3
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩298,562.80
재고있음
- 6 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 5 | ₩298,562.80 |
| 6 + | ₩278,935.60 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 454-9098
- 제조사 부품 번호:
- LM10B
- 제조업체:
- Sensata / Cynergy3
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Sensata / Cynergy3 | |
| Product Type | Float Switch | |
| Mount Type | Cable | |
| Switch Output | Direct Load | |
| Housing Material | Polyethylene | |
| Cable Length | 5m | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 55°C | |
| Maximum DC Voltage | 110V | |
| Maximum Current | 4A | |
| Maximum Pressure | 10bar | |
| Standards/Approvals | CE Certified | |
| Series | LM | |
| Hazardous Area Certification | No | |
| 모두 선택 | ||
|---|---|---|
브랜드 Sensata / Cynergy3 | ||
Product Type Float Switch | ||
Mount Type Cable | ||
Switch Output Direct Load | ||
Housing Material Polyethylene | ||
Cable Length 5m | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 55°C | ||
Maximum DC Voltage 110V | ||
Maximum Current 4A | ||
Maximum Pressure 10bar | ||
Standards/Approvals CE Certified | ||
Series LM | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- CN

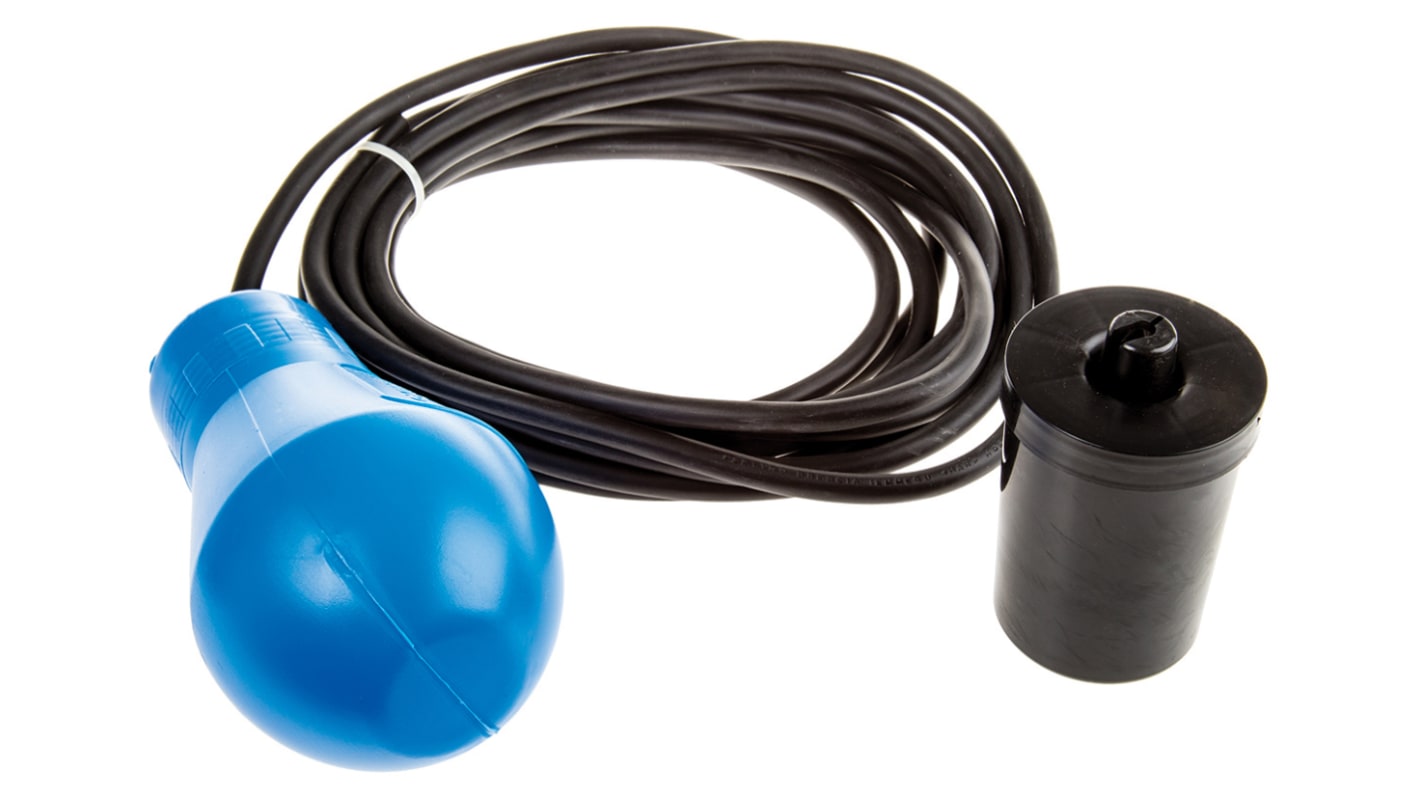

Sensata Cynergy3 Submerged Cable Float Switch, 250V DC Switching Voltage, HDPE - LM Series - LM10B
Choose this cable float switch from Sensata Cynergy3 for monitoring the level of liquids in small tanks. Its rounded design prevents solids from accumulating on its body, so it's suitable for use in industrial wastewater and sewage applications. An internal ballast keeps the switch's centre of gravity and rotation close to its cable entry point for greater sensing accuracy. It has a broad operating temperature range of 0°C to +55°C, making it suitable for use in demanding industrial environments.
Features & Benefits
• Maximum working pressure of 10 bar for use in high-pressure systems
• Robust HDPE (high-density polyethylene) body is resistant to wear and abrasion for long-lasting use
• Self-cleaning switching elements for reduced maintenance downtime
Is this float switch supplied with a connection cable?
Yes, this float switch is supplied with a long 5m cable for a flexible electrical connection. The cable is protected by a hard-wearing polyurethane jacket that's resistant to oil and fuel.
How big is this float switch?
This float switch has compact dimensions of 129 (length) x 75mm (width), making it a good choice for use in areas with limited space.
