WIKA ARV2 Series Threaded Float Switch, SPST, 230 V ac ac Max, 230 V dc dc Max
- RS 제품 번호:
- 269-0648
- 제조사 부품 번호:
- 48769678
- 제조업체:
- WIKA
Subtotal (1 unit)*
₩974,648.40
일시적 품절
- 2026년 4월 27일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩974,648.40 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 269-0648
- 제조사 부품 번호:
- 48769678
- 제조업체:
- WIKA
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | WIKA | |
| Product Type | Float Switch | |
| Mount Type | Threaded | |
| Switch Output | SPST | |
| Housing Material | Stainless Steel | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 130°C | |
| Maximum AC Voltage | 230V ac | |
| Maximum DC Voltage | 230V dc | |
| Maximum Current | 1A | |
| Maximum Pressure | 1bar | |
| Standards/Approvals | No | |
| Hazardous Area Certification | No | |
| Series | ARV2 | |
| 모두 선택 | ||
|---|---|---|
브랜드 WIKA | ||
Product Type Float Switch | ||
Mount Type Threaded | ||
Switch Output SPST | ||
Housing Material Stainless Steel | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 130°C | ||
Maximum AC Voltage 230V ac | ||
Maximum DC Voltage 230V dc | ||
Maximum Current 1A | ||
Maximum Pressure 1bar | ||
Standards/Approvals No | ||
Hazardous Area Certification No | ||
Series ARV2 | ||
- COO (Country of Origin):
- DE

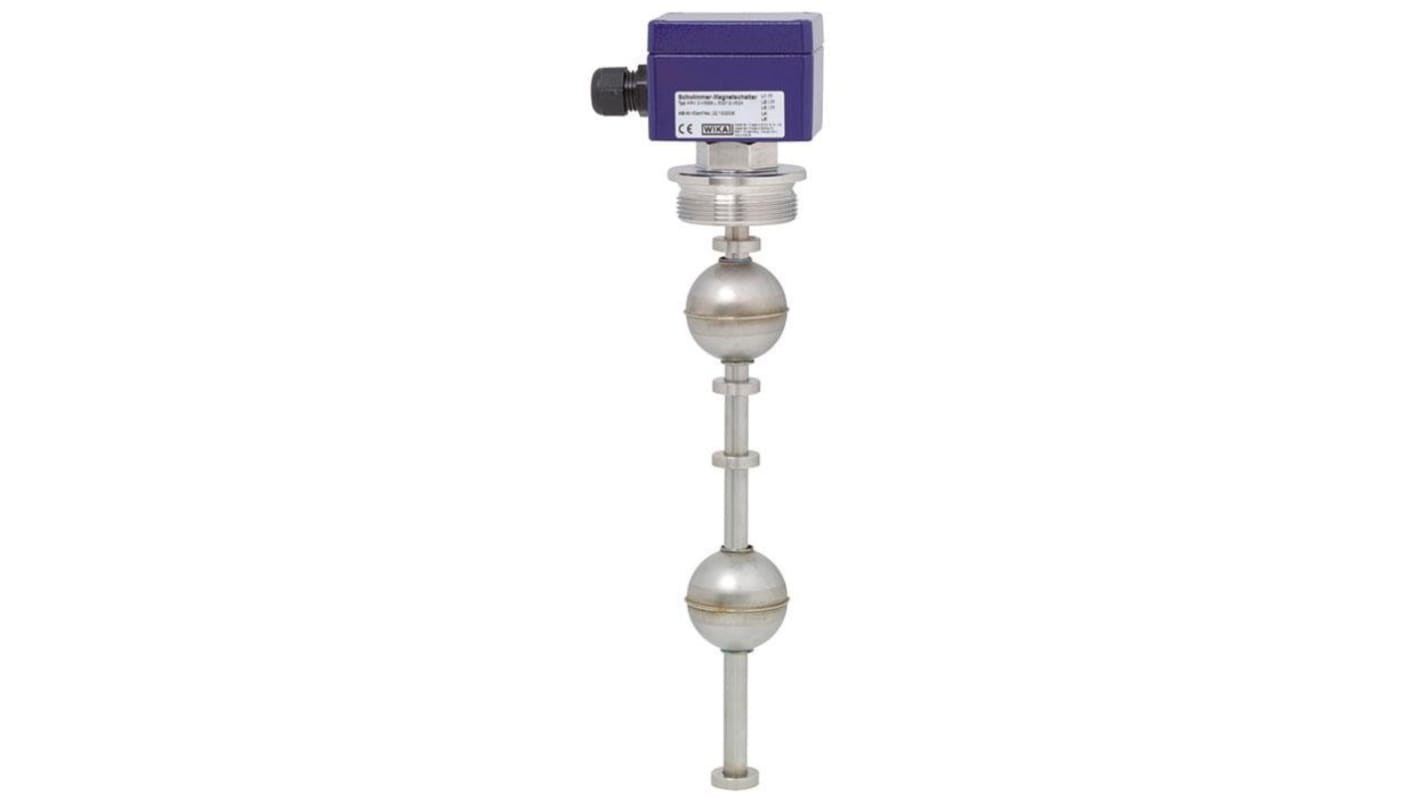

The WIKA float switch is simple to mount and maintenance-free, so the costs of mounting, commissioning and operation are low. A float with a permanent magnet moves reliably along with the liquid level on a guide tube.
Large range of application due to the simple, proven functional principle
For harsh operating conditions and long service life
