Sensata / Cynergy3 RSF50 Series Vertical Nitrile Rubber (NBR) Float Switch, 1 m Cable, NO/NC, 240 V ac Max, 120 V dc Max

모든 Float Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩33,821.20

Add to Basket
수량 선택 또는 입력
제한된 재고
  • 52 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 5₩33,821.20
6 - 11₩32,467.60
12 +₩31,114.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
845-982
Distrelec 제품 번호:
304-02-369
제조사 부품 번호:
RSF53V100MC
제조업체:
Sensata / Cynergy3
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Sensata / Cynergy3

Product Type

Float Switch

Mount Type

Vertical

Switch Output

NO/NC

Housing Material

Nylon

Cable Length

1m

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

75°C

Maximum AC Voltage

240V

Maximum DC Voltage

120V

Maximum Current

600mA

Gasket Material

Nitrile Rubber (NBR)

Standards/Approvals

WRAS

Series

RSF50

Hazardous Area Certification

No

COO (Country of Origin):
CN

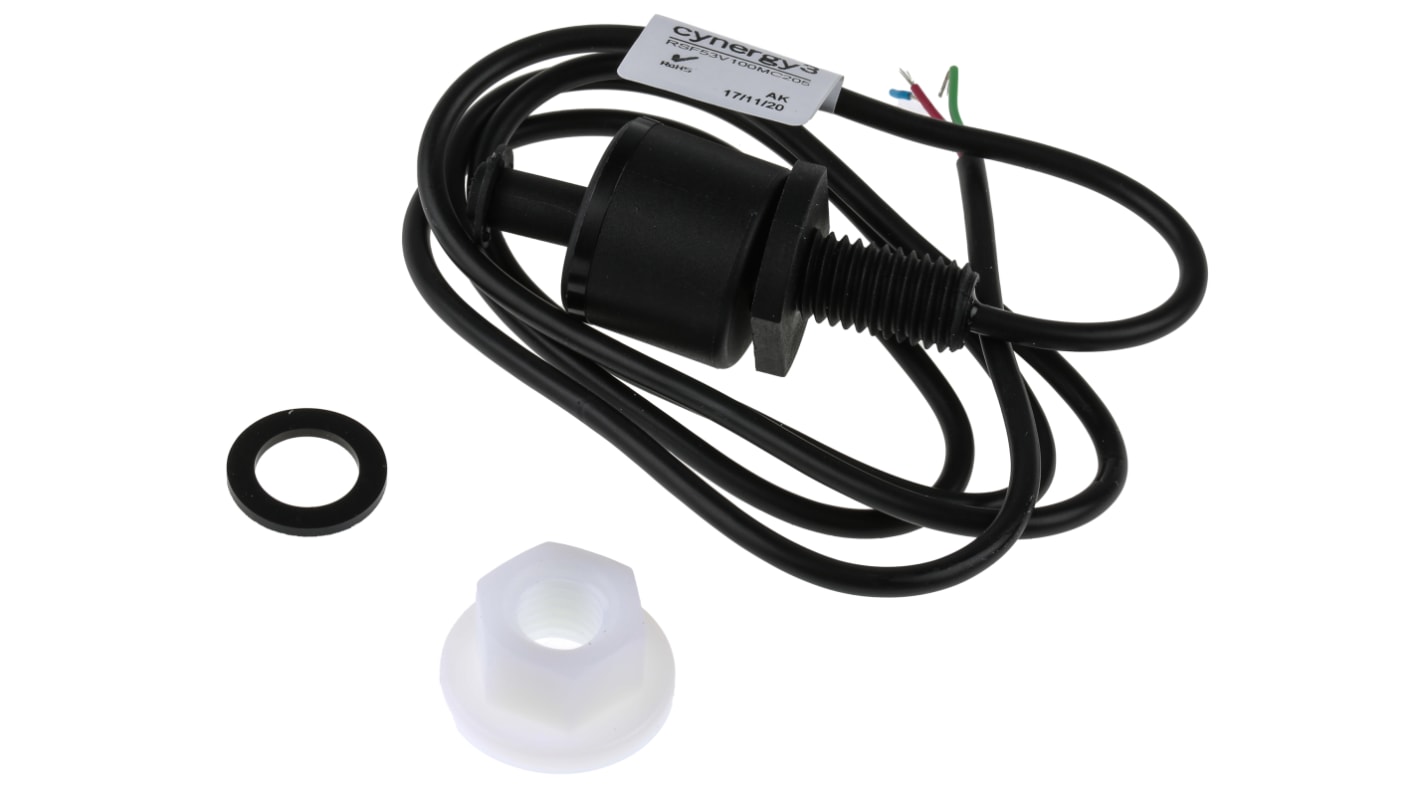

Sensata Cynergy3 Vertical Float Switch, NO/NC, 600mA - RSF50 Series - RSF53V100MC


This compact Sensata Cynergy3 float switch allows for close monitoring of liquid levels in applications with limited space. It offers both NO (normally open) and NC (normally closed) switch outputs for flexible use in liquid-level monitoring, high-alarm operations and overfill shutoffs. Thanks to its nylon construction, it's a durable choice that's resistant to corrosion and abrasion for use in harsh environments. The unit can be mounted vertically from the top or bottom of a tank's interior, so it's a good choice when you don't have access to the side of the tank. To ensure safe operation, keep the cable entry point dry by maintaining the mounting thread and cable entry above the liquid's highest level.

Features and Benefits


• Nitrile gasket material for a tight seal and resistance to corrosion

• Broad operating temperature range of -20°C to +75°C for use in challenging environments

• Cable length of 1m for flexible connections

How do you change the direction of the switch?


For flexible use, it's simple to reverse the switch's direction. All you need to do is remove the float from the tank and invert the switch. Re-fit it to the stem and re-install it in the tank.

Cynergy3 RSF50 Series Float Switches


Cynergy3 RSF50 float switches are compact devices suitable for vending machines printing system and chemical dosing equipment, for example. RSF50 float switches are vertically mounted and feature a single switch.

There is a range of different material options available within the RSF50 series so you will be sure to find a suitable float switch for more commonly used liquids.

The direction of the switch can be reversed by firstly removing the float, inverting the switch and re-fitting it to the stem.

Within the series there are 5 ranges:

RSF53 (black) - Nylon

RSF54 (opaque) - Polypropylene (WRAS approved)

RSF56 (grey) - Polyphenylene Sulphide (PPS)

RSF57 (green) - Polyvinylidene Fluoride (PVDF)

RSF58 (white) - Polypropylene (UL approved)

Note - the different ranges feature other differences. Please refer to the Datasheet for more information on technical specifications.

What contact types are there?

The RSF50 float switches can be configured for N/O (Normally Open) or N/C (Normally Closed) operation.

What mounting thread does it have?

RSF50 float switches have either M12 or 1/8” NPT mounting thread. This is depicted by the last part of the part number. If it ends in “B” or “C”, it is an M12. If it ends in “1/8” it is 1/8” NPT.

Note

Part numbers ending in '1/8' have a 1/8"NPT mounting thread
Part numbers ending in 'C' have an M12 mounting thread

Warning

The cable entry point must NOT under any circumstances be submerged.
On the Horizontal switches they must be fitted through the wall of a tank so that the cable is on the outside.
On the Vertical type the mounting thread and cable entry must be above the highest level of the liquid.

Supplied with

epoxy sealed leadouts
