RS PRO Vertical Polypropylene Float Switch, Float, 300mm Cable, Direct Load, 250V ac Max, 200V dc Max

모든 Float Switches 열람하기
대량 구매 할인 기용 가능

Subtotal (1 unit)*

₩12,050.80

Add to Basket
수량 선택 또는 입력
재고있음
  • 344 개 단위 배송 준비 완료
  • 추가로 2026년 2월 26일 부터 120 개 단위 배송
  • 추가로 2026년 3월 12일 부터 120 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 - 4₩12,050.80
5 - 24₩11,825.20
25 +₩9,719.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
519-232
Distrelec 제품 번호:
304-05-723
제조업체:
RS PRO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

RS PRO

For Use With

Water, Dilute Acid, Detergent

Device Type

Float

Mounting Type

Vertical

Switch Output

Direct Load

Body Material

PP

Cable Length

300mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+80°C

Maximum AC Voltage

250V

Maximum DC Voltage

200V

Maximum Current

700 mA

Maximum Pressure

1bar

Gasket Material

Silicone

Standards Met

FDA

Current Rating

1.5A

Interface

Cable

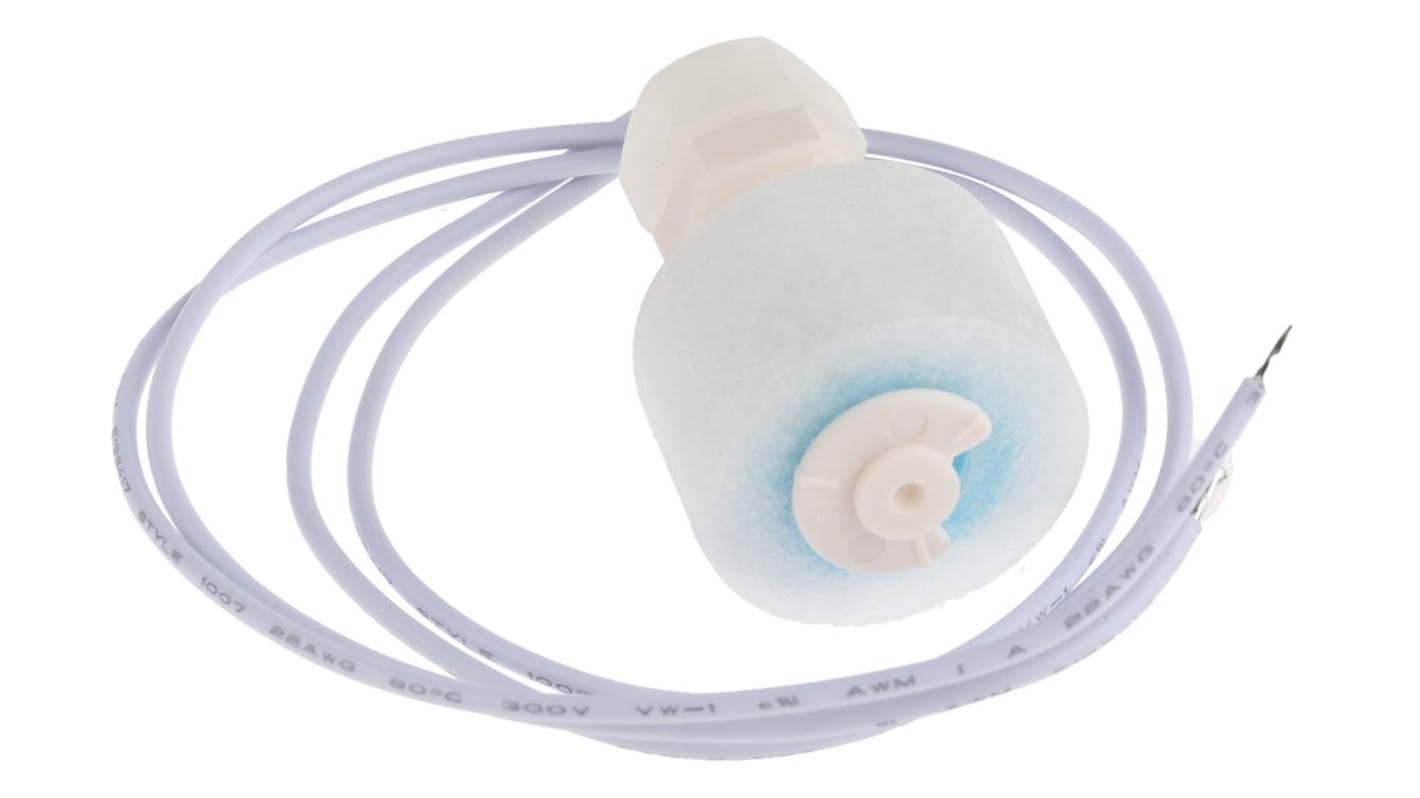

RS PRO 250V Miniature Vertical Float Switch (24 x 43mm)


A hardwearing food safe miniature float switch ideal for use with water dispensers, tank monitoring systems, vending machines, coffee machines and printing machines. Constructed from hardwearing Polypropylene housing sealed to IP67 for protection from contamination.

Designed for versatility the 250V float switch can be fitted to the top or bottom mounted within the tank and when mounted with the stem up the operating function is reversed.

Easy to install the vertical food safe float switch is fitted with a 24 AWG 300mm UL 1007 lead and is suitable for operating temperatures of -20°C to +80°C.

Features and Benefits


Vertical float switch
Normally open (N/O)
Food safe
Polypropylene construction
Contact rating of 50W/VA
Switching current of 1.5A
Float diameter of 24mm
Total length of 43mm

Versions Available:


(519-236) - N/O 140Vac 24mm dia. 53mm long
(519-242) - N/O 140Vac 24mm dia 43mm long
(519-232) - N/O 250Vac 24mm dia 43mm long
(519-248) - N/O 130Vac 18mm dia 29.5mm long
(519-258) - N/O 250Vac 24mm dia 53mm long
