Microchip 4Mbit Parallel Flash Memory 32-Pin PLCC, SST39SF040-55-4I-NHE

RS 제품 번호:: 879-3268
제조사 부품 번호:: SST39SF040-55-4I-NHE
제조업체:: Microchip

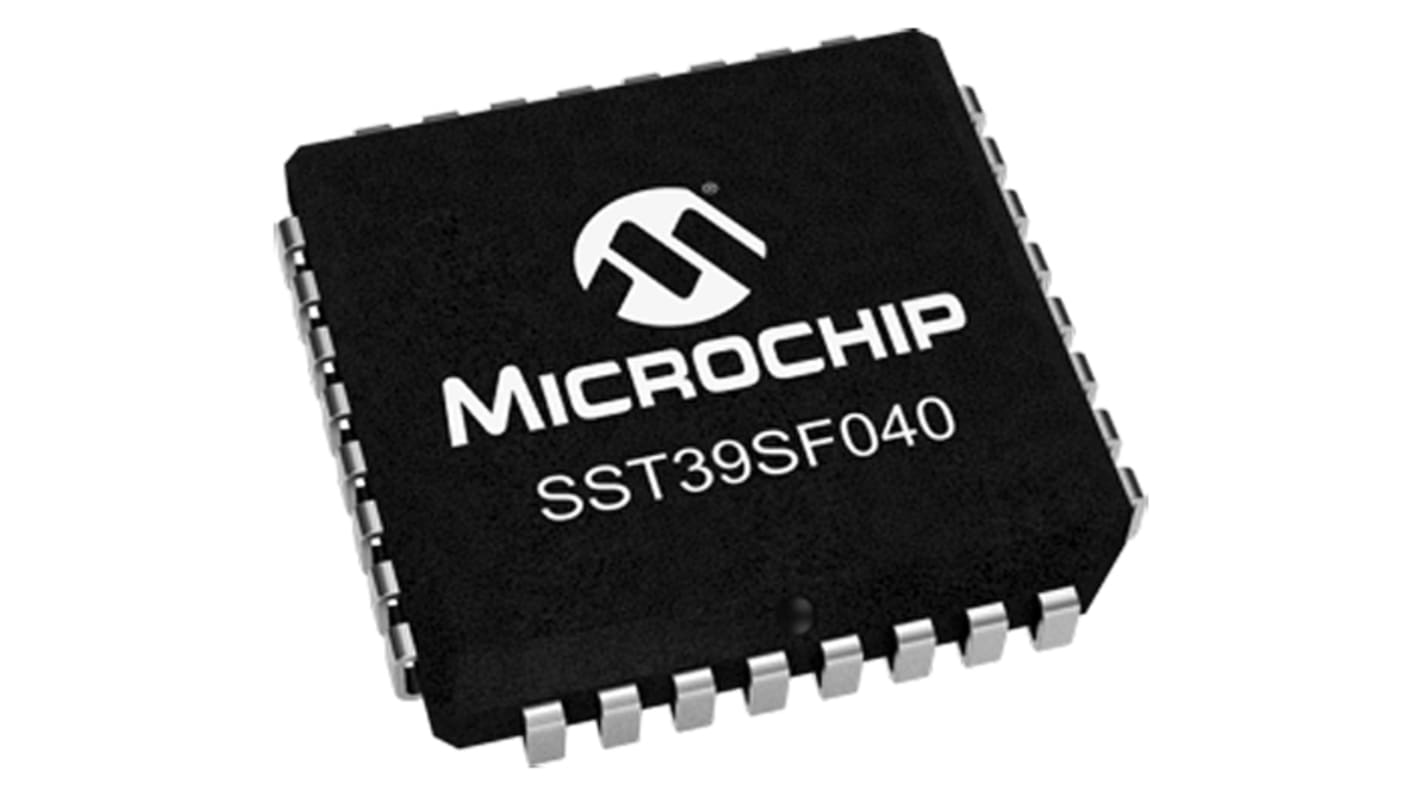

Microchip 4Mbit Parallel Flash Memory 32-Pin PLCC, SST39SF040-55-4I-NHE

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 pack of 5 units)*

₩21,864.40

재고있음

15 개 단위 배송 준비 완료
추가로 2025년 12월 23일 부터 360 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 - 5	₩4,372.88	₩21,864.40
10 - 10	₩4,286.40	₩21,432.00
15 +	₩4,158.56	₩20,792.80

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 879-3268
제조사 부품 번호:: SST39SF040-55-4I-NHE
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Memory Size	4Mbit
	Interface Type	Parallel
	Package Type	PLCC
	Pin Count	32
	Organisation	512K x 8 bit
	Mounting Type	Surface Mount
	Cell Type	Split Gate
	Minimum Operating Supply Voltage	4.5 V
	Maximum Operating Supply Voltage	5.5 V
	Block Organisation	Symmetrical
	Length	13.97mm
	Height	2.79mm
	Width	11.43mm
	Dimensions	11.43 x 13.97 x 2.79mm
	Maximum Operating Temperature	+85 °C
	Minimum Operating Temperature	-40 °C
	Number of Bits per Word	8bit
	Number of Words	512K
	Series	SST39
	Maximum Random Access Time	55ns

	모두 선택
	브랜드 Microchip
	Memory Size 4Mbit
	Interface Type Parallel
	Package Type PLCC
	Pin Count 32
	Organisation 512K x 8 bit
	Mounting Type Surface Mount
	Cell Type Split Gate
	Minimum Operating Supply Voltage 4.5 V
	Maximum Operating Supply Voltage 5.5 V
	Block Organisation Symmetrical
	Length 13.97mm
	Height 2.79mm
	Width 11.43mm
	Dimensions 11.43 x 13.97 x 2.79mm
	Maximum Operating Temperature +85 °C
	Minimum Operating Temperature -40 °C
	Number of Bits per Word 8bit
	Number of Words 512K
	Series SST39
	Maximum Random Access Time 55ns

SST39SF010A/020A/040 Parallel SuperFlash® Memory

The SST39SF010A/020A/040 family of devices from Microchip are Parallel multi-purpose SuperFlash® Memory ICs.

Features

4.5-5.5V Read and Write Operations
Endurance – 100,000 cycles (typical)
Low Power Consumption - Active Current 10 mA, Standby Current 30 μA (typical values at 14 MHz)
Sector-Erase Capability – Uniform 4 Kbyte sectors
Read Access Time – 55 to 70 ns
Sector-Erase Time 18 ms
Chip-Erase Time: 70 ms (typical)
Byte-Program Time – 14 μs (typical)
Chip Rewrite Time – SST39SF010A 2 seconds, SST39SF020A 4 seconds, SST39SF040 8 seconds (typical values)
Latched Address and Data
Automatic Write Timing – Internal VPP Generation
End-of-Write Detection – Toggle Bit – Data# Polling
TTL I/O Compatibility
JEDEC Standard– Flash EEPROM Pinouts and Command Sets

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
