Infineon NOR 256 MB SPI Flash Memory 8-Pin WSON, S25FL256SAGNFI000

RS 제품 번호:: 273-7507
제조사 부품 번호:: S25FL256SAGNFI000
제조업체:: Infineon

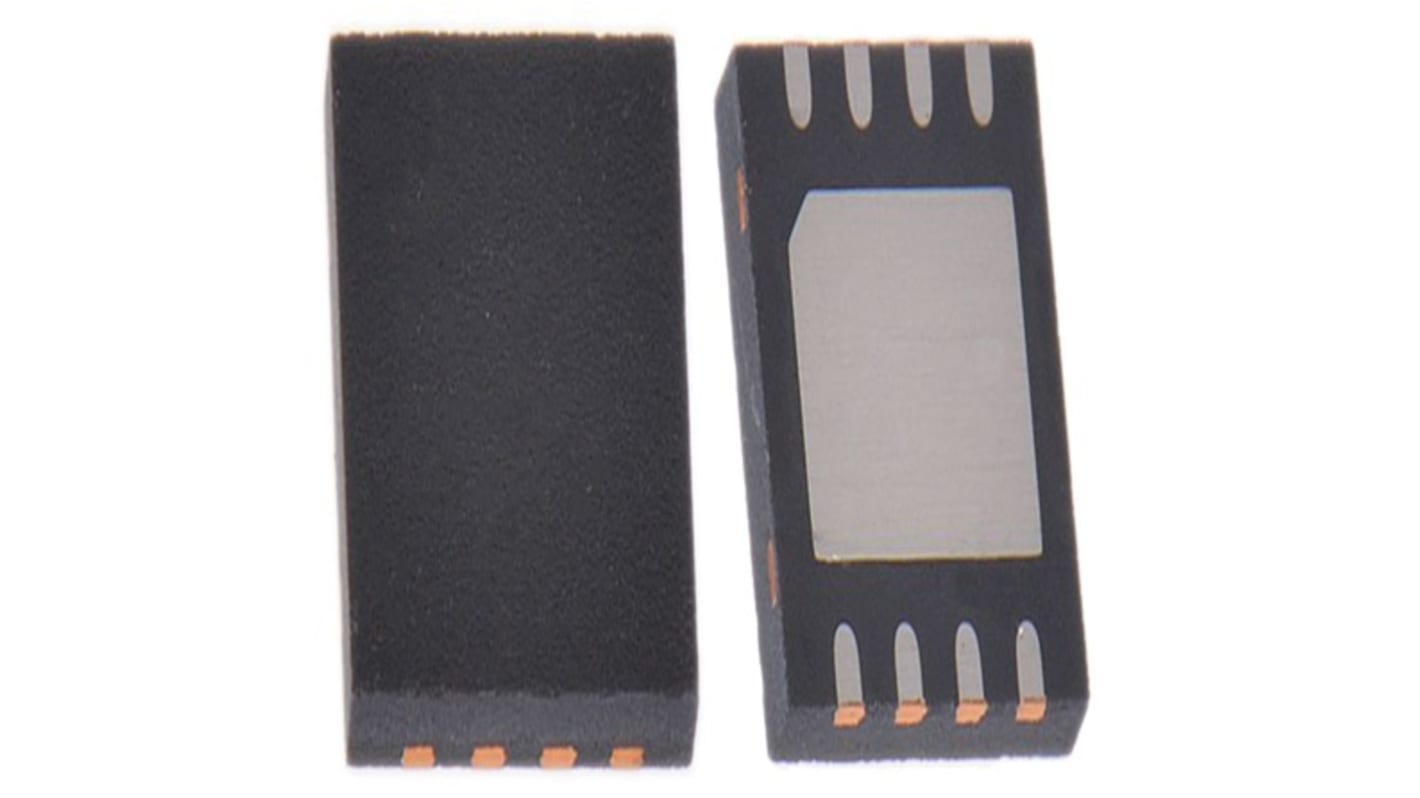

Infineon NOR 256 MB SPI Flash Memory 8-Pin WSON, S25FL256SAGNFI000

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

View bulk pricing options

Subtotal (1 unit)*

₩8,960.00

일시적 품절

2027년 1월 18일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 - 9	₩8,960.00
10 - 24	₩8,040.00
25 - 49	₩7,820.00
50 - 99	₩7,700.00
100 +	₩7,460.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 273-7507
제조사 부품 번호:: S25FL256SAGNFI000
제조업체:: Infineon

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Infineon
	Memory Size	256MB
	Product Type	Flash Memory
	Interface Type	SPI
	Package Type	WSON
	Pin Count	8
	Maximum Clock Frequency	133MHz
	Cell Type	NOR
	Minimum Supply Voltage	2.7V
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	+85°C
	Standards/Approvals	RoHS
	Automotive Standard	AEC-Q1 Grade 1
	Supply Current	100mA
	Series	S25FL-S

	모두 선택
	브랜드 Infineon
	Memory Size 256MB
	Product Type Flash Memory
	Interface Type SPI
	Package Type WSON
	Pin Count 8
	Maximum Clock Frequency 133MHz
	Cell Type NOR
	Minimum Supply Voltage 2.7V
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature +85°C
	Standards/Approvals RoHS
	Automotive Standard AEC-Q1 Grade 1
	Supply Current 100mA
	Series S25FL-S

Datasheet - S25FL256SAGNFI000

Infineon S25FL-S Series Flash Memory, 256MB Memory Size, 133MHz Maximum Clock Frequency - S25FL256SAGNFI000

This flash memory device provides non-volatile data storage for embedded systems requiring serial access and withstands broad thermal conditions. Designed for SPI interfacing in Compact surface-mount packages, it addresses applications where controlled supply ranges and robust cell architecture are necessary. The component suits environments that demand sustained operation across extended temperatures and complies with environmental material restrictions.

Features and Benefits:

• 256MB storage delivers substantial capacity for firmware and data
• 133MHz clock enables high-speed serial data transfers
• 2.7V to 3.6V supply supports flexible power-rail configurations
• -40°C to +85°C range ensures operation in industrial climates
• 100mA supply current allows predictable power budgeting

Applications

• Suitable for automotive electronic control modules
• Ideal for gateway and telematics units in vehicles
• Used with industrial controllers requiring Durable storage
• Can be used for firmware storage in Compact devices
• Appropriate for systems needing RoHS-compliant components

What Interface does the device use for communication?

It uses an SPI serial Interface for synchronous serial transfers.

Which package type is provided for PCB assembly?

It is supplied in an 8-pin WSON surface-mount package.

What cell architecture is implemented for data retention?

The device uses NOR cell architecture for random-access code execution.

Does the component meet automotive qualification levels?

It is qualified to AEC-Q1 Grade 1 for automotive applications.
