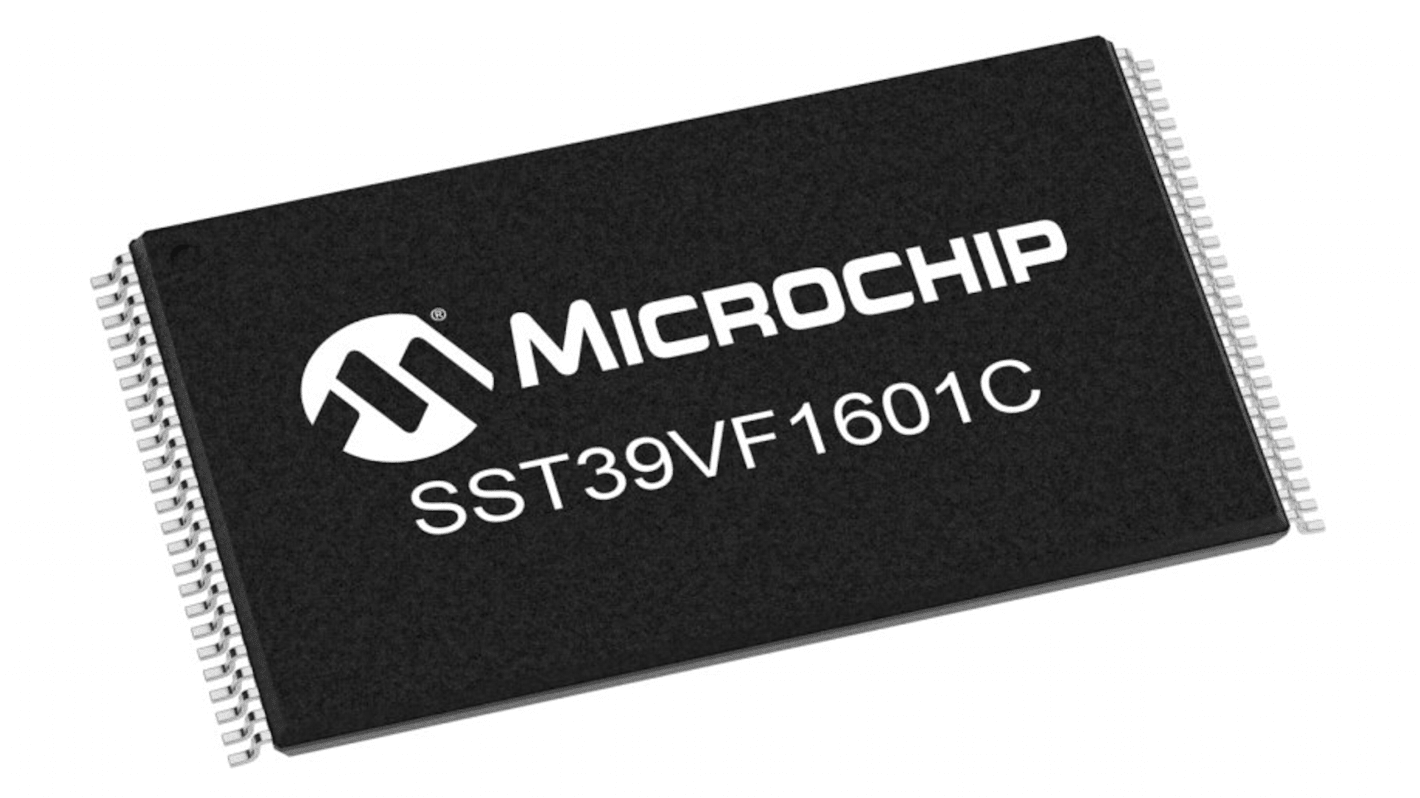

Microchip Split Gate 16 MB Parallel Flash Memory 48-Pin TSOP

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Flash Memory 열람하기

Subtotal (1 reel of 1000 units)*

₩3,714,750.00

Add to Basket
수량 선택 또는 입력
현재 액세스할 수 없는 재고 정보 - 나중에 다시 확인해 주세요.
수량
한팩당
릴당*
1000 +₩3,714.75₩3,714,360.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
264-8850
제조사 부품 번호:
SST39VF1601C-70-4I-EKE-T
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Memory Size

16MB

Product Type

Flash Memory

Interface Type

Parallel

Package Type

TSOP

Pin Count

48

Mount Type

Surface

Cell Type

Split Gate

Minimum Supply Voltage

2.7V

Maximum Supply Voltage

3.6V

Timing Type

Asynchronous

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Length

8mm

Height

1.1mm

Standards/Approvals

RoHS, JEDEC

Series

SST39VF

Supply Current

18mA

Number of Bits per Word

16

Automotive Standard

No

The Microchip CMOS multi purpose flash plus (MPF+) manufactured with SST proprietary, high performance CMOS Super flash technology. The split-gate cell design and thick-oxide tunnelling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF1601C writes (Program or Erase) with a 2.7-3.6V power supply. This device conforms to JEDEC standard pinouts for x16 memories.

Sector-Erase Capability – Uniform 2 KWord sectors

Low power consumption

Chip-Erase Capability

Erase-Suspend/Erase-Resume Capabilities

Hardware Reset Pin (RST#)

RoHS compliant
