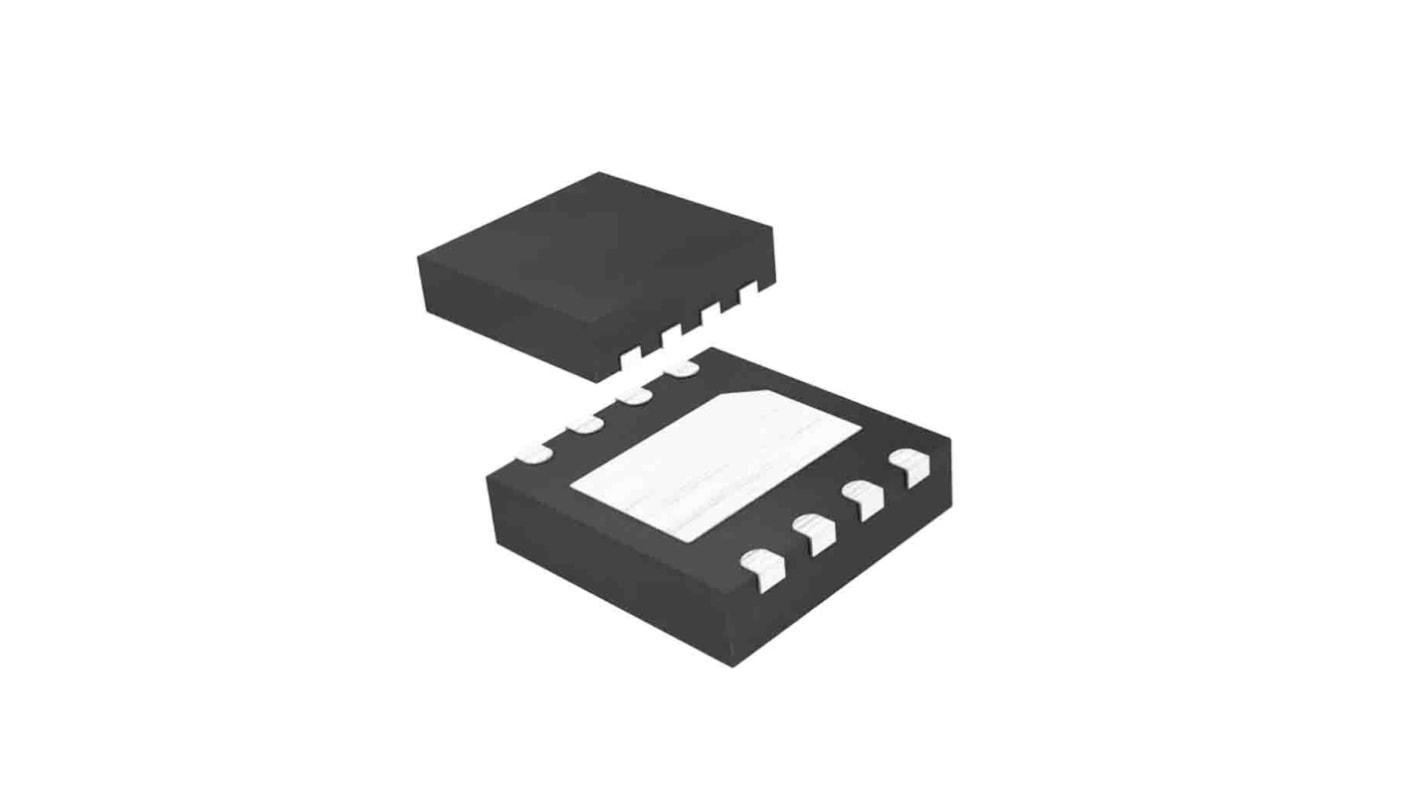

Infineon NOR 512Mbit SPI Flash Memory 8-Pin, S25HL512TDPNHI010
- RS 재고 번호:
- 197-6860
- 제조 부품 번호:
- S25HL512TDPNHI010
- 제조업체:
- Infineon
대량 구매 할인 기용 가능
Subtotal (1 unit)*
₩9,964.00
재고있음
- 338 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당 | 한팩당 |
|---|---|
| 1 - 84 | ₩9,964.00 |
| 85 - 168 | ₩9,776.00 |
| 169 + | ₩9,569.20 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 재고 번호:
- 197-6860
- 제조 부품 번호:
- S25HL512TDPNHI010
- 제조업체:
- Infineon
사양
기술적 참조
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Infineon | |
| Memory Size | 512Mbit | |
| Interface Type | SPI | |
| Pin Count | 8 | |
| Organisation | 64M x 8 bit | |
| Mounting Type | Surface Mount | |
| Cell Type | NOR | |
| Minimum Operating Supply Voltage | 2.7 V | |
| Maximum Operating Supply Voltage | 3 V | |
| Block Organisation | Symmetrical | |
| Length | 8mm | |
| Height | 0.75mm | |
| Width | 6mm | |
| Dimensions | 8 x 6 x 0.75mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Automotive Standard | AEC-Q100 | |
| Maximum Random Access Time | 8ns | |
| Number of Words | 64MB | |
| Series | Semper | |
| Number of Bits per Word | 8bit | |
| 모두 선택 | ||
|---|---|---|
브랜드 Infineon | ||
Memory Size 512Mbit | ||
Interface Type SPI | ||
Pin Count 8 | ||
Organisation 64M x 8 bit | ||
Mounting Type Surface Mount | ||
Cell Type NOR | ||
Minimum Operating Supply Voltage 2.7 V | ||
Maximum Operating Supply Voltage 3 V | ||
Block Organisation Symmetrical | ||
Length 8mm | ||
Height 0.75mm | ||
Width 6mm | ||
Dimensions 8 x 6 x 0.75mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Automotive Standard AEC-Q100 | ||
Maximum Random Access Time 8ns | ||
Number of Words 64MB | ||
Series Semper | ||
Number of Bits per Word 8bit | ||
Cypress NOR Flash Memory is a non-volatile storage solution that integrates safety features for automotive and industrial systems. Applications include automotive instrument clusters, advanced driver assistance systems (ADAS), and networking communications.
EnduraFlex™ Architecture: Partition memory to provide up to 25-years data retention and 1+ million program/erase cycles endurance,
JEDEC xSPI compatible,
Data Integrity Check and Interface CRC
Certificates: ISO 26262 ASIL B Compliant,
ISO 26262 ASIL-D ready.
FMEDA and safety manual
Single error correction and double error detection (SECDED)
Series - Semper
SafeBoot
JEDEC xSPI compatible,
Data Integrity Check and Interface CRC
Certificates: ISO 26262 ASIL B Compliant,
ISO 26262 ASIL-D ready.
FMEDA and safety manual
Single error correction and double error detection (SECDED)
Series - Semper
SafeBoot
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
