Microchip Split Gate 64 MB SPI Flash Memory 8-Pin WDFN

RS 제품 번호:: 165-4038
제조사 부품 번호:: SST26VF064B-104I/MN
제조업체:: Microchip

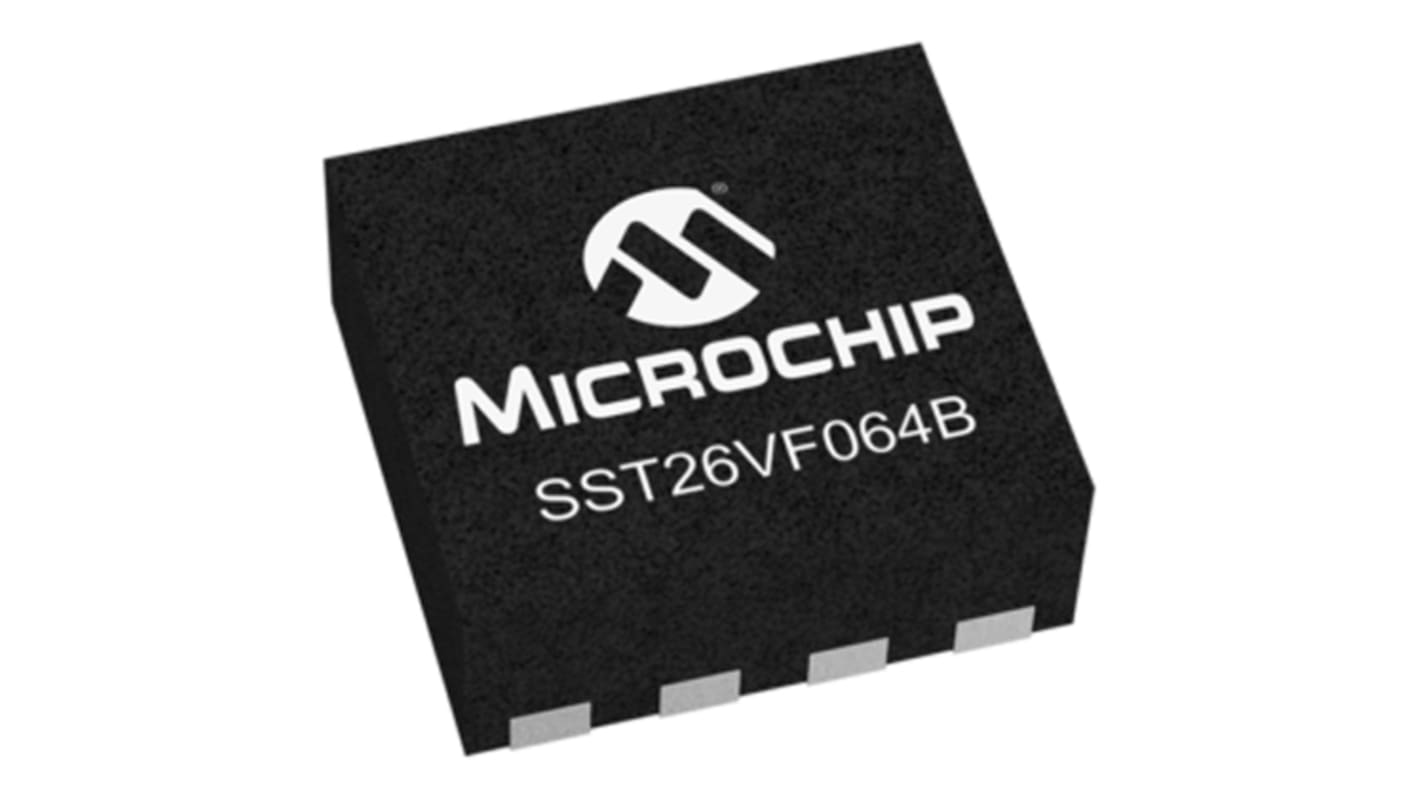

Microchip Split Gate 64 MB SPI Flash Memory 8-Pin WDFN

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

RS 제품 번호:: 165-4038
제조사 부품 번호:: SST26VF064B-104I/MN
제조업체:: Microchip

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Microchip
	Product Type	Flash Memory
	Memory Size	64MB
	Interface Type	SPI
	Package Type	WDFN
	Pin Count	8
	Organisation	8M x 8 Bit
	Maximum Clock Frequency	104MHz
	Mount Type	Surface
	Cell Type	Split Gate
	Minimum Supply Voltage	2.7V
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Width	8 mm
	Standards/Approvals	No
	Length	6mm
	Height	0.8mm
	Automotive Standard	AEC-Q100
	Number of Words	8K
	Series	SST26
	Maximum Random Access Time	8ns
	Supply Current	20mA
	Number of Bits per Word	8

	모두 선택
	브랜드 Microchip
	Product Type Flash Memory
	Memory Size 64MB
	Interface Type SPI
	Package Type WDFN
	Pin Count 8
	Organisation 8M x 8 Bit
	Maximum Clock Frequency 104MHz
	Mount Type Surface
	Cell Type Split Gate
	Minimum Supply Voltage 2.7V
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Width 8 mm
	Standards/Approvals No
	Length 6mm
	Height 0.8mm
	Automotive Standard AEC-Q100
	Number of Words 8K
	Series SST26
	Maximum Random Access Time 8ns
	Supply Current 20mA
	Number of Bits per Word 8

Datasheet

COO (Country of Origin):: TH

SST26VF016B/032B/064B Serial Quad I/O (SQI) SuperFlash® Memory

The SST26VF016B/032B/064B family of devices from Microchip are Serial Quad I/O™ (SQI™) Interface SuperFlash® memory ICs featuring a six-wire, 4-bit I/O Interface that allow for low power, high performance operation in a Compact low pin-count package. The use of Microchip’s SQI™ Interface results in performance of up to 104 MHz and enables low-latency execute-in-place (XIP) capability with minimal processor buffer memory. These flash memory chips also support full command-set compatibility to traditional Serial Peripheral Interface (SPI) protocol.

Through the use of SuperFlash® technology these devices offer exceptional erase times that compare very favourably to other Flash memory alternatives. Sector and Block erase commands are typically completed in 18 ms, full chip erase operation taking a typical 35 ms.

Features

Serial Interface Architecture – Nibble-Wide Multiplexed I/O’s with SPI-like Serial Command Structure

x1/x2/x4 Serial Peripheral Interface (SPI) Protocol

High Speed Clock Frequency- 104 MHz Max

Burst Modes

Low Power Consumption – Active Read 15 mA (Typical at 104 MHz), Standby 15 μA (Typical)

Fast Erase Time - Sector/Block Erase: 18 MS (Typical); Chip Erase 35 MS (Typical)

Flexible Erase Capability

Software Write Protection
