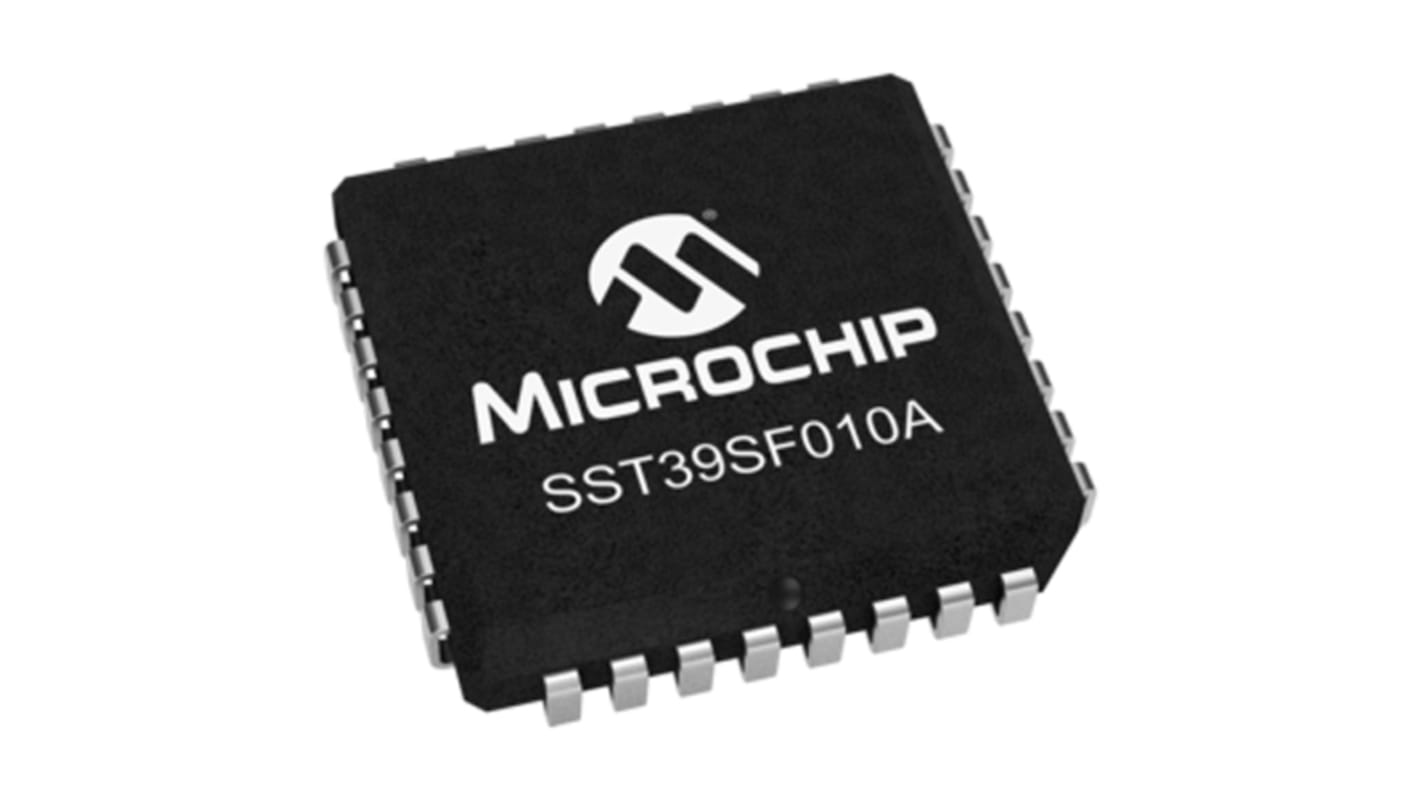

Microchip 1MB Parallel Flash Memory 32-Pin PLCC, SST39SF010A-70-4I-NHE

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

모든 Flash Memory 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 30 units)*

₩98,587.20

Add to Basket
수량 선택 또는 입력
재고있음
  • 720 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
단위당
한팩당
Per Tube*
30 - 30₩3,286.24₩98,604.12
60 - 270₩3,220.44₩96,630.12
300 +₩3,156.52₩94,695.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 재고 번호:
165-2088
제조 부품 번호:
SST39SF010A-70-4I-NHE
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Memory Size

1MB

Interface Type

Parallel

Package Type

PLCC

Pin Count

32

Organisation

128K x 8 bit

Mounting Type

Surface Mount

Cell Type

Split Gate

Minimum Operating Supply Voltage

4.5 V

Maximum Operating Supply Voltage

5.5 V

Block Organisation

Symmetrical

Length

14.05mm

Height

2.84mm

Width

11.51mm

Dimensions

14.05 x 11.51 x 2.84mm

Series

SST39

Number of Bits per Word

8bit

Maximum Random Access Time

70ns

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+85 °C

Number of Words

128K

COO (Country of Origin):
TH

SST39SF010A/020A/040 Parallel SuperFlash® Memory


The SST39SF010A/020A/040 family of devices from Microchip are Parallel multi-purpose SuperFlash® Memory ICs.

Features


4.5-5.5V Read and Write Operations
Endurance – 100,000 cycles (typical)
Low Power Consumption - Active Current 10 mA, Standby Current 30 μA (typical values at 14 MHz)
Sector-Erase Capability – Uniform 4 Kbyte sectors
Read Access Time – 55 to 70 ns
Sector-Erase Time 18 ms
Chip-Erase Time: 70 ms (typical)
Byte-Program Time – 14 μs (typical)
Chip Rewrite Time – SST39SF010A 2 seconds, SST39SF020A 4 seconds, SST39SF040 8 seconds (typical values)
Latched Address and Data
Automatic Write Timing – Internal VPP Generation
End-of-Write Detection – Toggle Bit – Data# Polling
TTL I/O Compatibility
JEDEC Standard– Flash EEPROM Pinouts and Command Sets

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.



Flash Memory, Microchip
