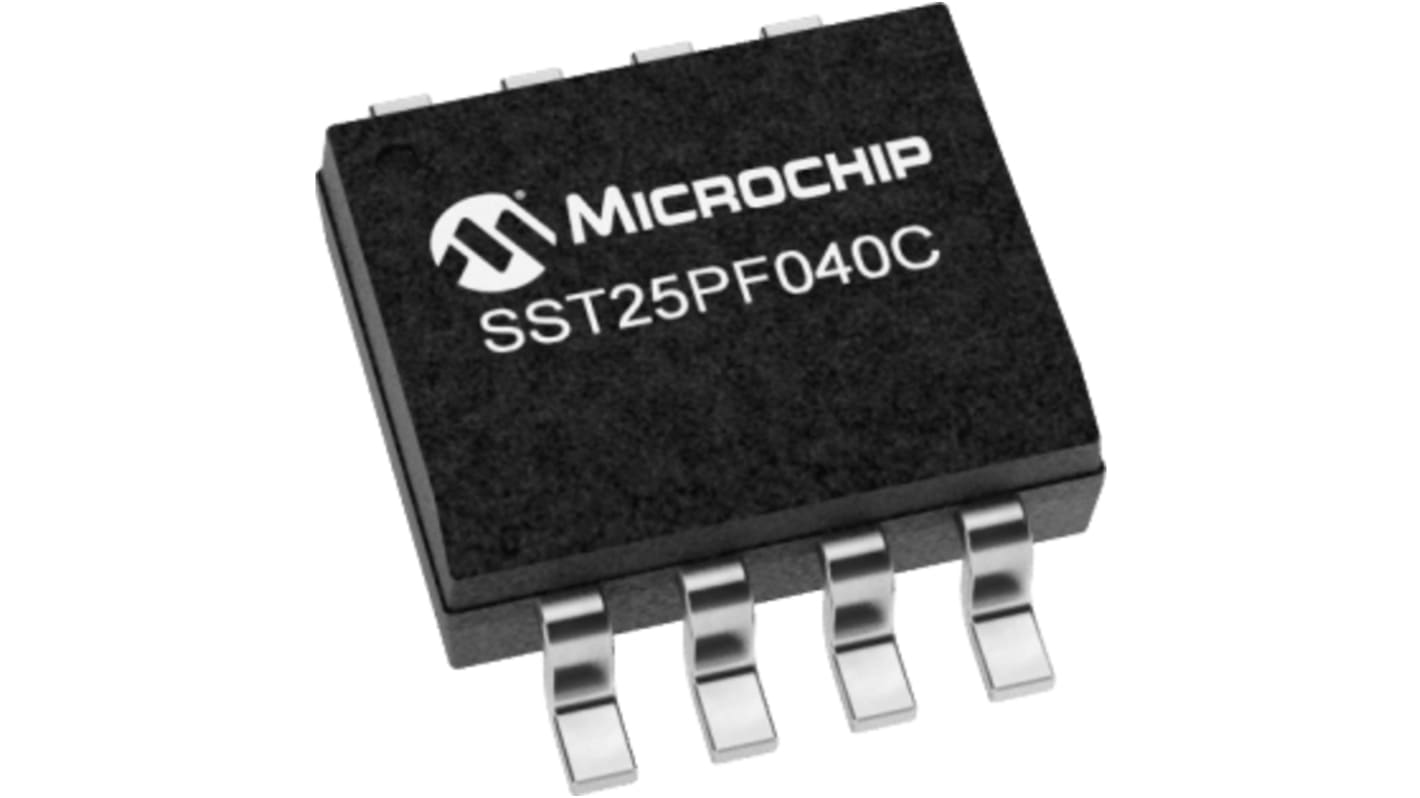

Microchip 4Mbit SDI, SPI Flash Memory 8-Pin SOIC, SST25PF040C-40I/SN

모든 Flash Memory 열람하기
대량 구매 할인 기용 가능

Subtotal (1 tube of 100 units)*

₩159,612.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 100 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
Per Tube*
100 - 400₩1,596.12₩159,649.60
500 +₩1,564.16₩156,453.60

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
146-3273
제조사 부품 번호:
SST25PF040C-40I/SN
제조업체:
Microchip
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Microchip

Memory Size

4Mbit

Interface Type

SDI, SPI

Package Type

SOIC

Pin Count

8

Organisation

128K x 4 bit

Mounting Type

Surface Mount

Cell Type

Split Gate

Minimum Operating Supply Voltage

2.3 V

Maximum Operating Supply Voltage

3.6 V

Block Organisation

Symmetrical

Length

4.9mm

Height

1.25mm

Width

3.9mm

Dimensions

4.9 x 3.9 x 1.25mm

Minimum Operating Temperature

-40 °C

Automotive Standard

AEC-Q100

Series

SST25

Maximum Operating Temperature

+85 °C

Number of Words

128K

Number of Bits per Word

4bit

The 25 series Serial Flash family features a four-wire, SPI-compatible interface that allows for a low pin-count package which occupies less board space and ultimately lowers total system costs. The SST25PF040C devices are enhanced with extended operating voltage of 2.3-3.6V. SST25PF040C SPI serial flash memories are manufactured with proprietary, high-performance CMOS SuperFlash technology.

Single Voltage Read and Write Operations- 2.3–3.6V
Serial Interface Architecture- SPI Compatible
Dual Input/Output I/O Support
High Speed Clock Frequency up to 40 MHz
Superior Reliability
Endurance 100,000 Cycles (typical)
Greater than 20 years Data Retention

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
