Renesas Electronics 8 kB FIFO Memory, 32-Pin PLCC

RS 제품 번호:: 217-7894
제조사 부품 번호:: 72V02L15JG
제조업체:: Renesas Electronics

Renesas Electronics 8 kB FIFO Memory, 32-Pin PLCC

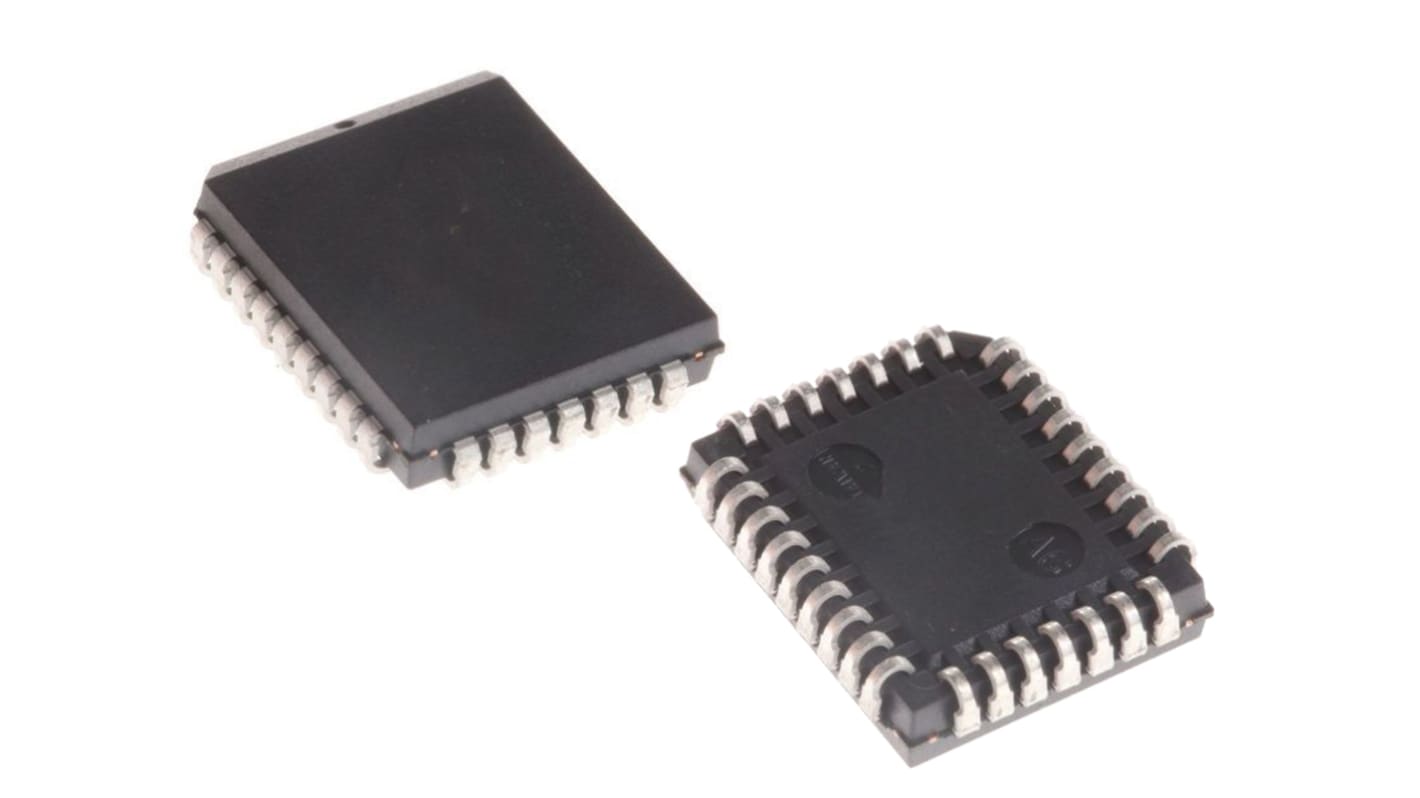

본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.

대량 구매 할인 기용 가능

Subtotal (1 tube of 32 units)*

₩755,128.32

마지막 RS 재고

최종적인 256 개 unit(s)이 배송 준비 됨

수량	한팩당	Per Tube*
32 - 32	₩23,597.76	₩755,122.68
64 - 96	₩23,007.44	₩736,243.72
128 +	₩22,654.00	₩724,909.20

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 217-7894
제조사 부품 번호:: 72V02L15JG
제조업체:: Renesas Electronics

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Renesas Electronics
	Product Type	FIFO Memory
	Memory Size	8kB
	Organisation	1024 x 9 bit
	Data Bus Width	9bit
	Access Time	15ns
	Mount Type	Surface
	Maximum Clock Frequency	40MHz
	Timing Type	Asynchronous
	Package Type	PLCC
	Minimum Supply Voltage	3V
	Maximum Supply Voltage	3.6V
	Pin Count	32
	Minimum Operating Temperature	0°C
	Bus Direction	Uni-Directional
	Maximum Operating Temperature	70°C
	Series	72V02
	Width	11.4 mm
	Length	13.97mm
	Height	2.79mm
	Standards/Approvals	No
	Supply Current	60mA
	Automotive Standard	No
	Number of Words	1K
	Number of Bits per Word	9

	모두 선택
	브랜드 Renesas Electronics
	Product Type FIFO Memory
	Memory Size 8kB
	Organisation 1024 x 9 bit
	Data Bus Width 9bit
	Access Time 15ns
	Mount Type Surface
	Maximum Clock Frequency 40MHz
	Timing Type Asynchronous
	Package Type PLCC
	Minimum Supply Voltage 3V
	Maximum Supply Voltage 3.6V
	Pin Count 32
	Minimum Operating Temperature 0°C
	Bus Direction Uni-Directional
	Maximum Operating Temperature 70°C
	Series 72V02
	Width 11.4 mm
	Length 13.97mm
	Height 2.79mm
	Standards/Approvals No
	Supply Current 60mA
	Automotive Standard No
	Number of Words 1K
	Number of Bits per Word 9

Datasheet - 72V02L15JG

The Renesas Electronics 72V02 is a 1K x 9 dual-port FIFO that operates at Vcc between 3.0V and 3.6V. The device will load and empty data on a first-in/first-out basis. It uses Full and Empty flags to prevent data overflow and underflow. It has a Retransmit (RT) capability that allows for reset of the read pointer to its initial position when RT is pulsed LOW. It is designed for applications requiring asynchronous and simultaneous read/writes in multiprocessing and rate buffer applications.

Functionally compatible with 720x family

Low-power consumption

15 ns access time

Asynchronous and simultaneous read and write

Fully expandable by both word depth and/or bit width

Status Flags: Empty, Half-Full, Full

Auto-retransmit capability

Available in 32-pin PLCC

Industrial temperature range (–40C to +85C) is available

Renesas Electronics 8 kB FIFO Memory, 32-Pin PLCC
