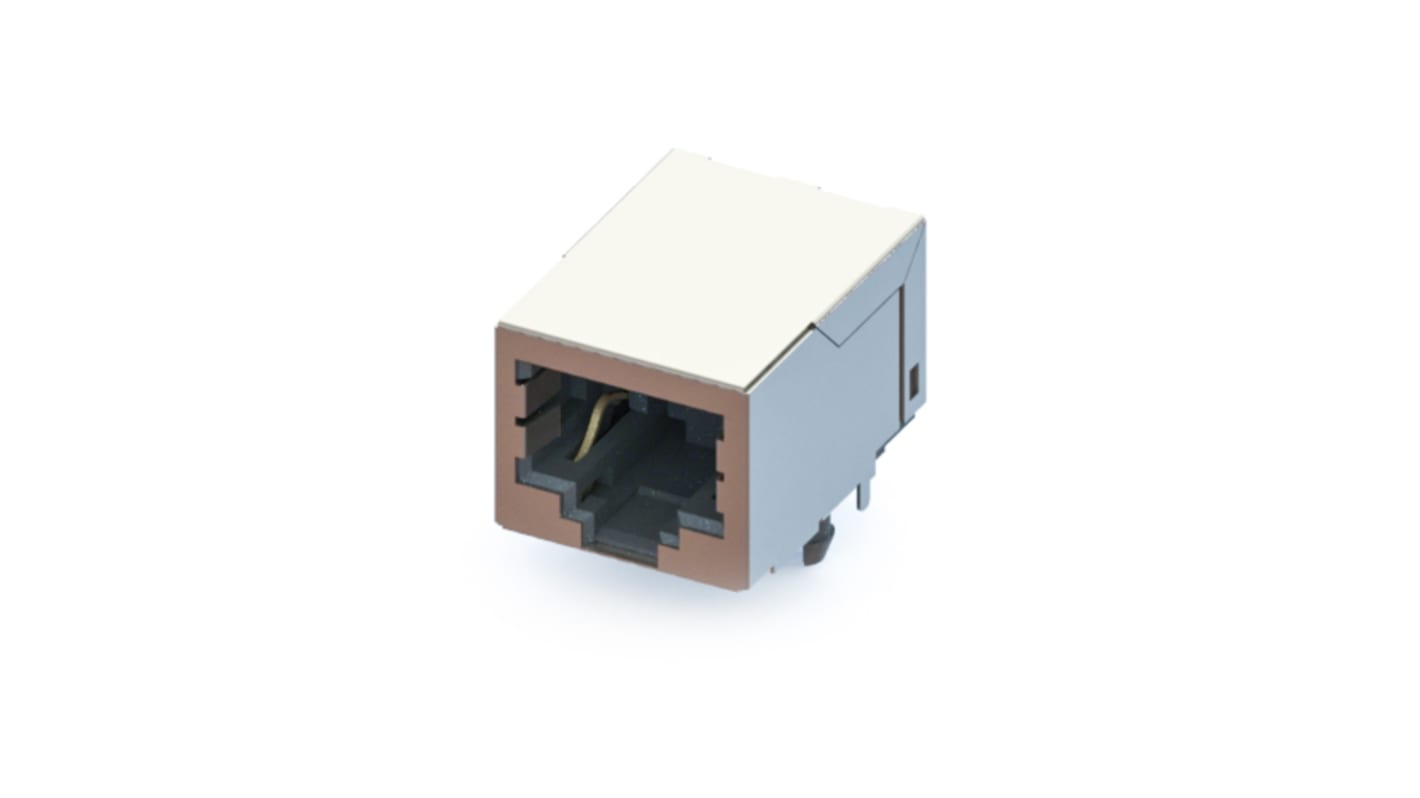

Yamaichi Y-Con Series RJ45 Connector Female, PCB, Cat5 Nickel Plated Brass Shield Right Angle 10 Port 1 Way
- RS 제품 번호:
- 249-2634
- 제조사 부품 번호:
- Y-ConJack-21
- 제조업체:
- Yamaichi
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
Subtotal (1 tray of 63 units)*
₩573,552.00
일시적 품절
- 2026년 10월 23일 부터 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | Per Tray* |
|---|---|---|
| 63 + | ₩9,104.00 | ₩573,488.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 249-2634
- 제조사 부품 번호:
- Y-ConJack-21
- 제조업체:
- Yamaichi
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Yamaichi | |
| Product Type | RJ45 Connector | |
| Ethernet Connector Type | RJ45 | |
| LAN Category | Cat5 | |
| Number of Ports | 10 | |
| Mount Type | PCB | |
| Number of Ways | 1 | |
| Connector Type | RJ45 | |
| Connector Gender | Female | |
| Shield Type | Nickel Plated Brass | |
| Orientation | Right Angle | |
| Magnetic | No | |
| IP Rating | IP20 | |
| LED | No | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -40°C | |
| Light Pipes | No | |
| Maximum Operating Temperature | 120°C | |
| Depth | 13.6mm | |
| Length | 21.4mm | |
| Hazardous Area Certification | No | |
| Width | 15.9mm | |
| Series | Y-Con | |
| Standards/Approvals | RoHS | |
| Contact Plating | Gold over Nickel | |
| 모두 선택 | ||
|---|---|---|
브랜드 Yamaichi | ||
Product Type RJ45 Connector | ||
Ethernet Connector Type RJ45 | ||
LAN Category Cat5 | ||
Number of Ports 10 | ||
Mount Type PCB | ||
Number of Ways 1 | ||
Connector Type RJ45 | ||
Connector Gender Female | ||
Shield Type Nickel Plated Brass | ||
Orientation Right Angle | ||
Magnetic No | ||
IP Rating IP20 | ||
LED No | ||
Termination Type Solder | ||
Minimum Operating Temperature -40°C | ||
Light Pipes No | ||
Maximum Operating Temperature 120°C | ||
Depth 13.6mm | ||
Length 21.4mm | ||
Hazardous Area Certification No | ||
Width 15.9mm | ||
Series Y-Con | ||
Standards/Approvals RoHS | ||
Contact Plating Gold over Nickel | ||
- COO (Country of Origin):
- TW
The Yamaichi Jack suitable for Plu-21 8 contacts plus 2 power with optional EMI shield springs. The product also has additional power contacts that can be used with all Y-Con plugs.
RJ45 jack 90° Cat 5
With improved shielding
