Bel-Stewart SS-39 Series RJ45 Connector Male, Cable, Cat6 Unshielded Straight 1 Port 8 Way
- RS 제품 번호:
- 413-386
- 제조사 부품 번호:
- SS-39100-011
- 제조업체:
- Bel-Stewart
Subtotal (1 pack of 5 units)*
₩11,836.50
재고있음
- 추가로 2026년 4월 27일 부터 560 개 단위 배송
- 추가로 2026년 6월 10일 부터 250 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 | 한팩당* |
|---|---|---|
| 5 + | ₩2,367.30 | ₩11,836.50 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 413-386
- 제조사 부품 번호:
- SS-39100-011
- 제조업체:
- Bel-Stewart
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Bel-Stewart | |
| Ethernet Connector Type | RJ45 | |
| Product Type | RJ45 Connector | |
| LAN Category | Cat6 | |
| Number of Ports | 1 | |
| Mount Type | Cable | |
| Number of Ways | 8 | |
| Connector Type | Modular Jack | |
| Connector Gender | Male | |
| Shield Type | Unshielded | |
| Orientation | Straight | |
| Width | 37.34mm | |
| Series | SS-39 | |
| Standards/Approvals | No | |
| Hazardous Area Certification | NO | |
| Length | 11.68mm | |
| Depth | 37.34mm | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold | |
| 모두 선택 | ||
|---|---|---|
브랜드 Bel-Stewart | ||
Ethernet Connector Type RJ45 | ||
Product Type RJ45 Connector | ||
LAN Category Cat6 | ||
Number of Ports 1 | ||
Mount Type Cable | ||
Number of Ways 8 | ||
Connector Type Modular Jack | ||
Connector Gender Male | ||
Shield Type Unshielded | ||
Orientation Straight | ||
Width 37.34mm | ||
Series SS-39 | ||
Standards/Approvals No | ||
Hazardous Area Certification NO | ||
Length 11.68mm | ||
Depth 37.34mm | ||
Contact Material Copper Alloy | ||
Contact Plating Gold | ||

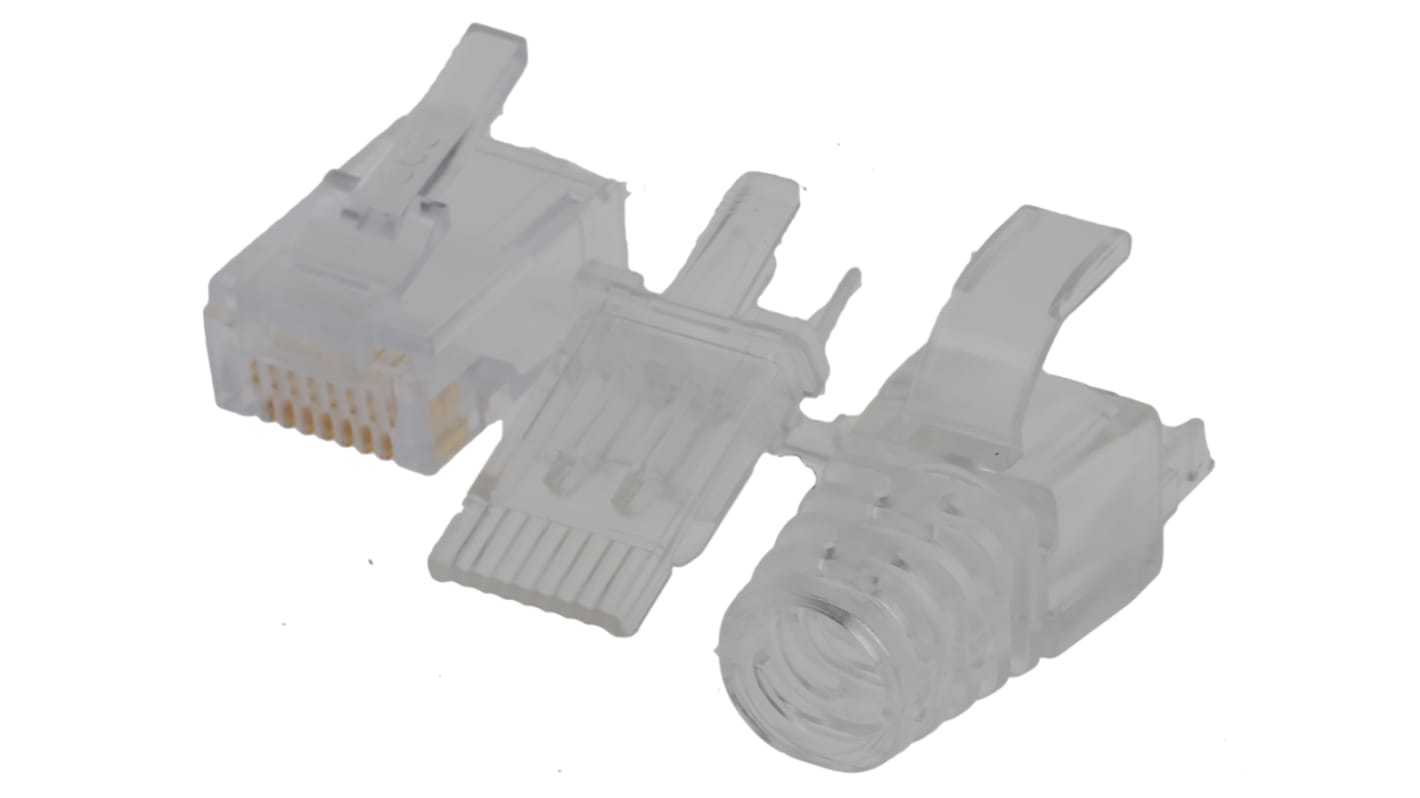

Bel Stewart RJ45 Modular Plug
This Bel Stewart RJ45 modular plug is ideal for Ethernet and telecom applications. It comes with a load bar and anti-snag strain relief boot for additional protection of the RJ45 connector. This connector is designed to fit solid or stranded wires.
Copper alloy, electro-polished contacts ensure reliability for 1000 insertion cycles. The body of the connector is made from UL 94-V0 plastic and the plugs also have a load bar for ease of assembly.
This is an 8P8C connector which is one of the most popular choices for computer networking and telecommunications applications. It stands for 8 position 8 contact.
This RJ45 modular plugs meet EIA/TIA Category 6 (Cat6) component standard when terminated to a Category 6 compliant cable, and are field installable with a Category 6 termination tool.
Versions Available:
413-380 (SS-39200-011) - Cat6a RJ45 plug Shielded with black boot
413-386 (SS-39100-011) - Cat6a RJ45 plug Unshielded with clear boot
413-396 (SS-39100-008) - Cat6 RJ45 plug Unshielded with clear boot
Shielded vs. Unshielded
Shielded RJ45 connectors feature a metal casing inside and, when used with a shielded cable, prevents interference of signal across the length of the cable. Unshielded RJ45 connectors do not have this casing. Shielded version are suitable for applications which may cover a longer distance.
