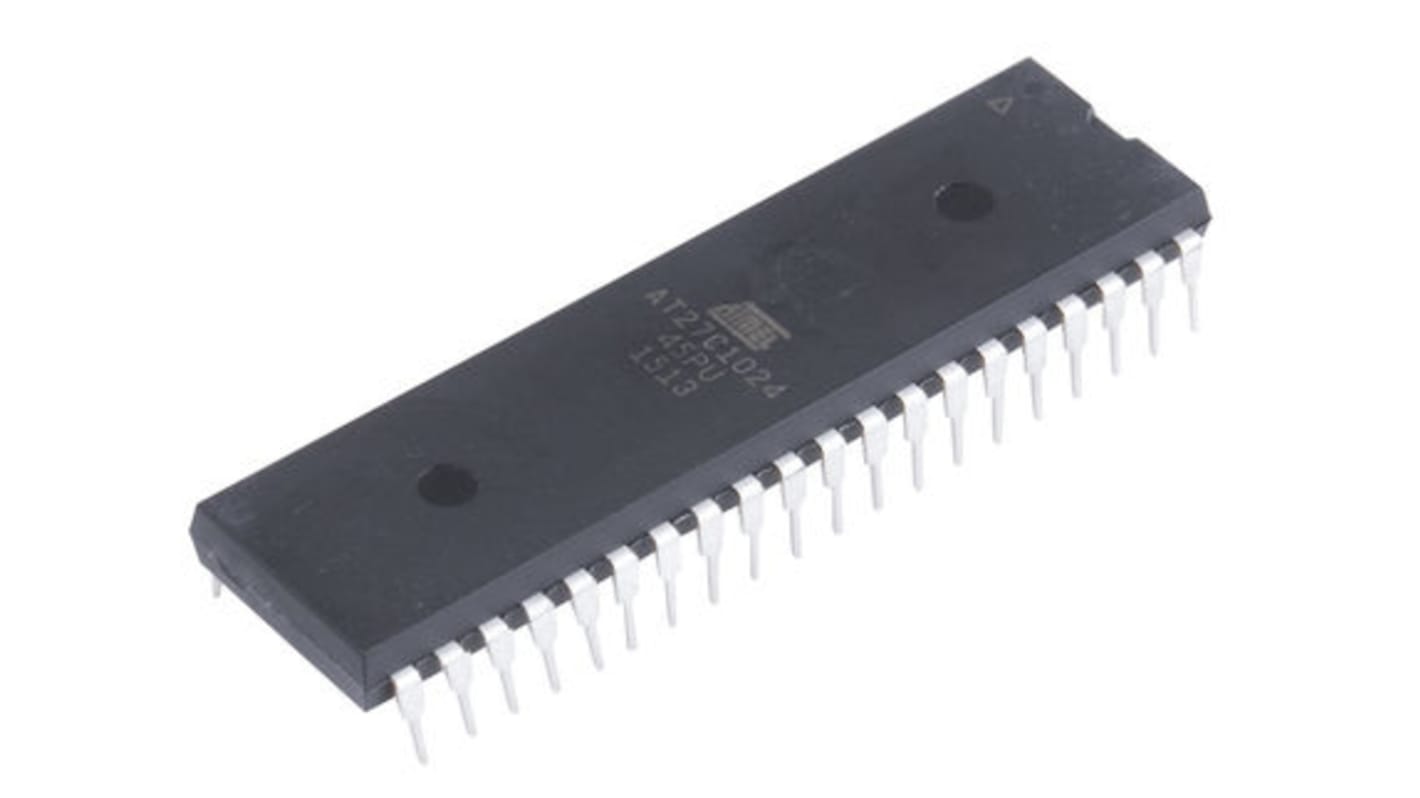

Microchip 1 MB EPROM 40-Pin PDIP, AT27C1024-45PU
- RS 제품 번호:
- 127-6552
- 제조사 부품 번호:
- AT27C1024-45PU
- 제조업체:
- Microchip
본 이미지는 참조용이오니 재확인이 필요하시면 문의해주세요.
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.
대체품
이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.
개당
₩4,788.36
- RS 제품 번호:
- 127-6552
- 제조사 부품 번호:
- AT27C1024-45PU
- 제조업체:
- Microchip
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Microchip | |
| Memory Size | 1MB | |
| Product Type | EPROM | |
| Organisation | 64K x 16 bit | |
| Interface Type | Parallel | |
| Maximum Random Access Time | 45ns | |
| Reprogramming Technique | OTP | |
| In System Programmability | No | |
| Mount Type | Through Hole | |
| Package Type | PDIP | |
| Minimum Supply Voltage | 4.5V | |
| Pin Count | 40 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Width | 13.9 mm | |
| Length | 52.5mm | |
| Height | 4.8mm | |
| Standards/Approvals | No | |
| Number of Bits per Word | 16 | |
| Number of Words | 64K | |
| Automotive Standard | No | |
| Supply Current | 100μA | |
| 모두 선택 | ||
|---|---|---|
브랜드 Microchip | ||
Memory Size 1MB | ||
Product Type EPROM | ||
Organisation 64K x 16 bit | ||
Interface Type Parallel | ||
Maximum Random Access Time 45ns | ||
Reprogramming Technique OTP | ||
In System Programmability No | ||
Mount Type Through Hole | ||
Package Type PDIP | ||
Minimum Supply Voltage 4.5V | ||
Pin Count 40 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Width 13.9 mm | ||
Length 52.5mm | ||
Height 4.8mm | ||
Standards/Approvals No | ||
Number of Bits per Word 16 | ||
Number of Words 64K | ||
Automotive Standard No | ||
Supply Current 100μA | ||
EPROM (One Time Programmable), Atmel
EPROM OTP (One Time Programmable)
These EPROM (Erasable Programmable Read-Only Memory) devices contain the same chips and are programmed in the same way as their UV-eraseable counterparts. However as the package contains no window, they cannot be erased and re-programmed.
