제조사부품번호

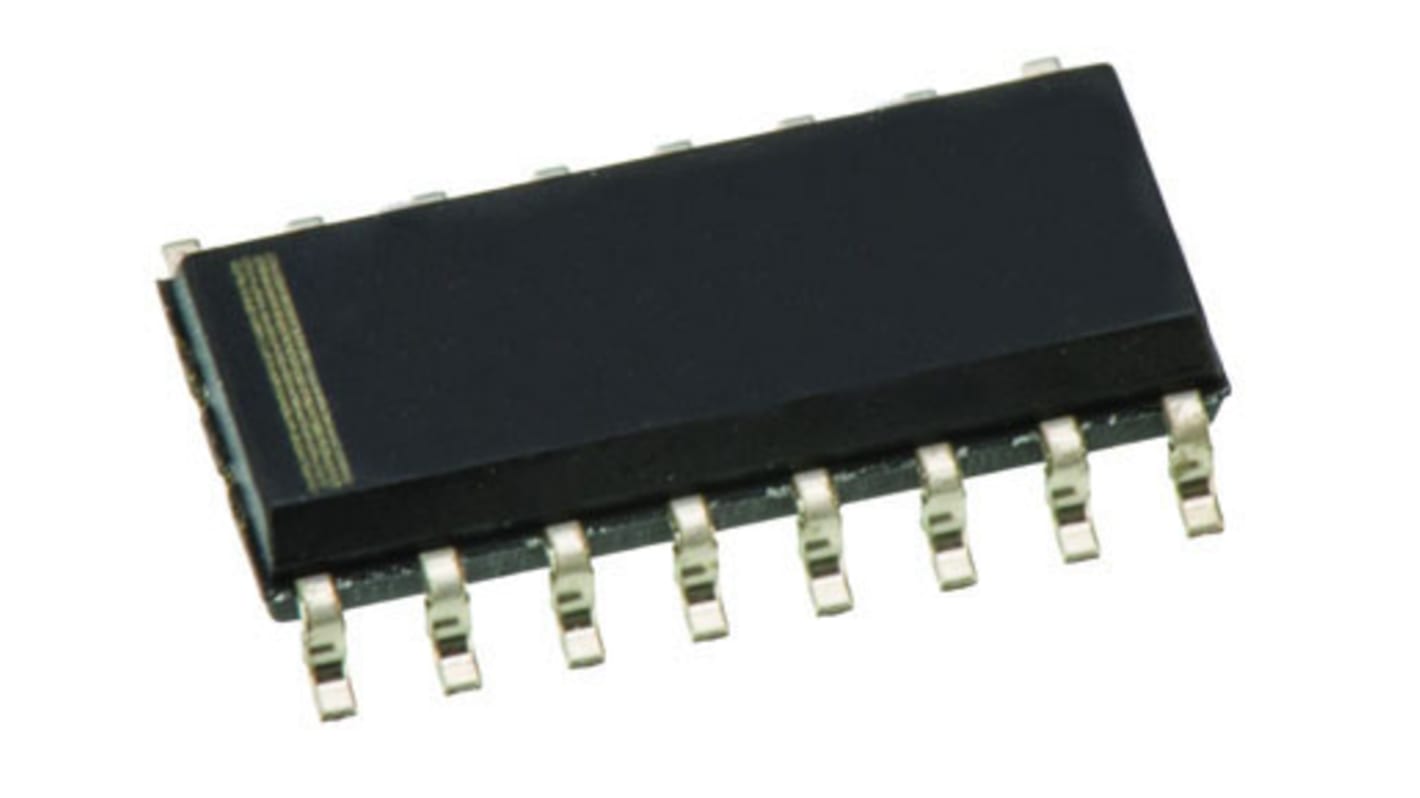

Texas Instruments CD74HC238M, Decoder, 16-Pin SOIC

RS 제품 번호:: 527-823
제조사 부품 번호:: CD74HC238M
제조업체:: Texas Instruments

Texas Instruments CD74HC238M, Decoder, 16-Pin SOIC

현재 비가용

RS는 이 제품을 더 이상 판매하지 않습니다.

RS 제품 번호:: 527-823
제조사 부품 번호:: CD74HC238M
제조업체:: Texas Instruments

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Texas Instruments
	Product Type	Decoder
	Logic Family	HC
	Logic Function	Demultiplexer, Decoder
	Number of Inputs	4
	Mount Type	Surface
	Package Type	SOIC
	Pin Count	16
	Number of Outputs	8
	Minimum Supply Voltage	2V
	Maximum Supply Voltage	6V
	Minimum Operating Temperature	-55°C
	Maximum Operating Temperature	125°C
	Series	CD
	Length	19.6mm
	Standards/Approvals	No
	Height	5.08mm
	Width	6.1 mm
	Automotive Standard	No

	모두 선택
	브랜드 Texas Instruments
	Product Type Decoder
	Logic Family HC
	Logic Function Demultiplexer, Decoder
	Number of Inputs 4
	Mount Type Surface
	Package Type SOIC
	Pin Count 16
	Number of Outputs 8
	Minimum Supply Voltage 2V
	Maximum Supply Voltage 6V
	Minimum Operating Temperature -55°C
	Maximum Operating Temperature 125°C
	Series CD
	Length 19.6mm
	Standards/Approvals No
	Height 5.08mm
	Width 6.1 mm
	Automotive Standard No

ESD Control Selection Guide V1

74HC Family Decoders/Multiplexers, Texas Instruments

Texas Instruments range of Decoders, Multiplexers, Demultiplexers and Analogue Switches from the 74HC Family of CMOS Logic ICs. The 74HC Family use silicon gate CMOS technology to achieve operating speeds similar to the LSTTL family but with the low power consumption of standard CMOS integrated circuits.

High-Speed CMOS Logic

Operating Voltage: 2 to 6 V

Compatibility: Input CMOS, Output CMOS

Texas Instruments CD74HC238M, Decoder, 16-Pin SOIC

74HC Family Decoders/Multiplexers, Texas Instruments

74HC Family
