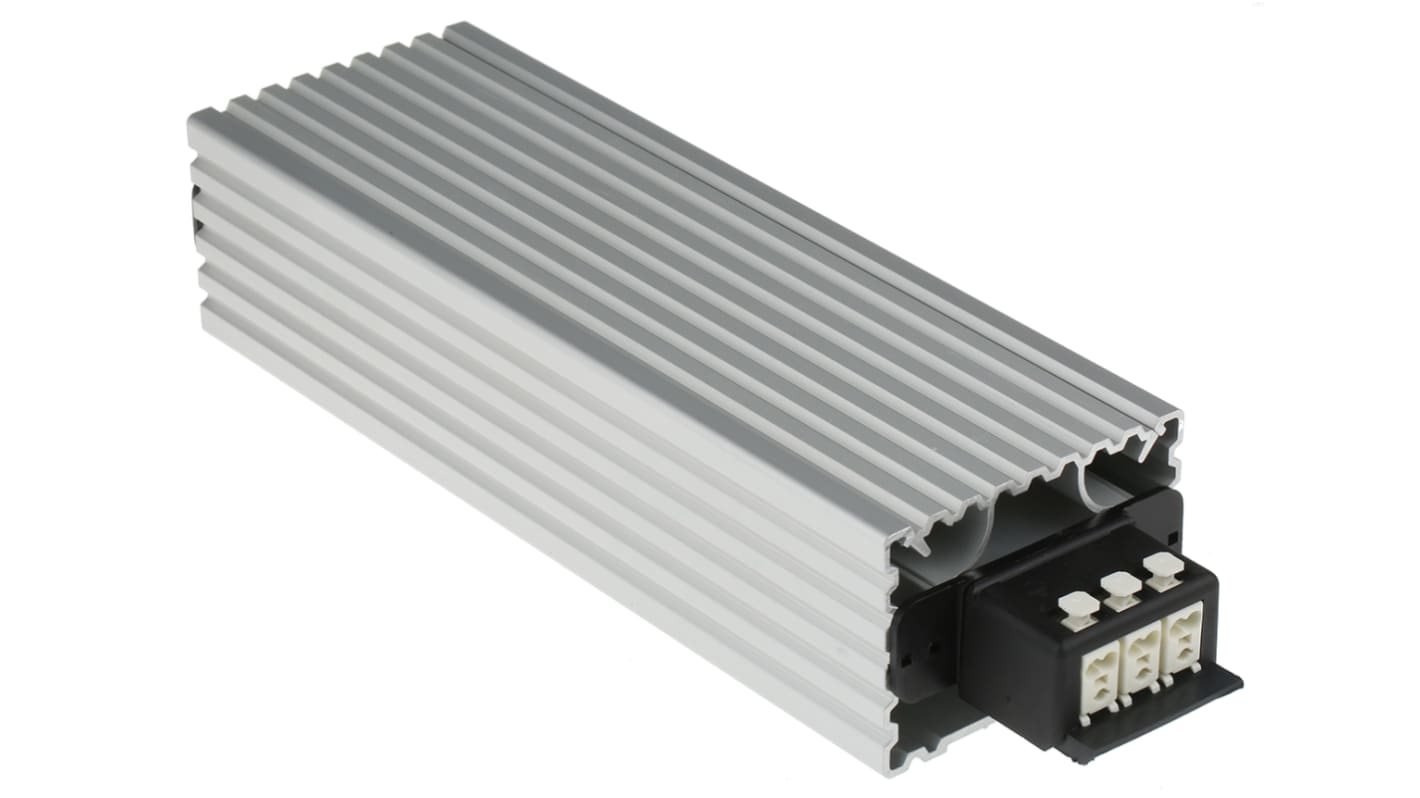

Pfannenberg Enclosure Heater, 110V ac, 250 V ac, 150W Output, 150W Input, 150 °C 70mm x 50 mm
- RS 제품 번호:
- 103-544
- Distrelec 제품 번호:
- 303-67-845
- 제조사 부품 번호:
- 17015005007
- 제조업체:
- Pfannenberg
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩125,520.00
재고있음
- 29 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 24 | ₩125,520.00 |
| 25 - 49 | ₩122,320.00 |
| 50 - 99 | ₩118,540.00 |
| 100 + | ₩116,660.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 103-544
- Distrelec 제품 번호:
- 303-67-845
- 제조사 부품 번호:
- 17015005007
- 제조업체:
- Pfannenberg
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Pfannenberg | |
| Product Type | Enclosure Heater | |
| Output Power | 150W | |
| Air Flow | 61m³/h | |
| Input Power | 150W | |
| Supply Voltage | 110, 250V ac | |
| Surface Temperature | 150°C | |
| Depth | 50mm | |
| Mount Type | Snap | |
| Connection Type | Connecting Cable, Plug Terminal | |
| Width | 70mm | |
| IP Rating | IP20 | |
| Insulated PTC | No | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | UL-RECOG, WEEE, EAC, UKCA, cURus | |
| Frequency | 60Hz | |
| 모두 선택 | ||
|---|---|---|
브랜드 Pfannenberg | ||
Product Type Enclosure Heater | ||
Output Power 150W | ||
Air Flow 61m³/h | ||
Input Power 150W | ||
Supply Voltage 110, 250V ac | ||
Surface Temperature 150°C | ||
Depth 50mm | ||
Mount Type Snap | ||
Connection Type Connecting Cable, Plug Terminal | ||
Width 70mm | ||
IP Rating IP20 | ||
Insulated PTC No | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals UL-RECOG, WEEE, EAC, UKCA, cURus | ||
Frequency 60Hz | ||
- COO (Country of Origin):
- DE
Radiant Heaters - Pfannenberg FLH Series
Suitable for both 50Hz or 60Hz operation
Duty cycle 100%
Heating element is PTC (positive temperature coefficient), temperature regulating
Can be mounted in any position (vertical preferred)
Made from extruded aluminium section, clear anodised
Plug-in terminal connection
Cable connection capacity: solid 2 x 0.5 - 2.5mm2; fine stranded (tinned, with bootlace ferrule or crimp pin) 2 x 0.5 - 1.5mm2
DIN-rail mounting (EN 50022 35mm)
Operating temperature -20°C to +70°C
Storage temperature -40°C to +70°C
Environmental rating IP20
DIN Rail Mount Enclosure Heaters
Heaters specifically intended for anti-condensation and frost protection in control and equipment cabinets. All types are supplied with DIN rail mounting hardware.
Note
Accessories available separately include thermostats FLZ510, FLZ520, FLZ530, hygrostat FLZ600
Approvals
UL
