Schneider Electric PanelSeT Series RAL 7032 Modular Distribution Chassis

모든 Enclosure Chassis & Frames 열람하기

Subtotal (1 unit)*

₩120,802.50

Add to Basket
수량 선택 또는 입력
일시적 품절
  • 2026년 6월 17일 부터 1 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩120,802.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS 제품 번호:
125-1010
제조사 부품 번호:
NSYDLS24
제조업체:
Schneider Electric
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Schneider Electric

Product Type

Modular Distribution Chassis

Series

PanelSeT

Number of Cutouts

2

Number of Modules

24

Colour

Grey

RAL Code

RAL 7032

Better World Product

Yes

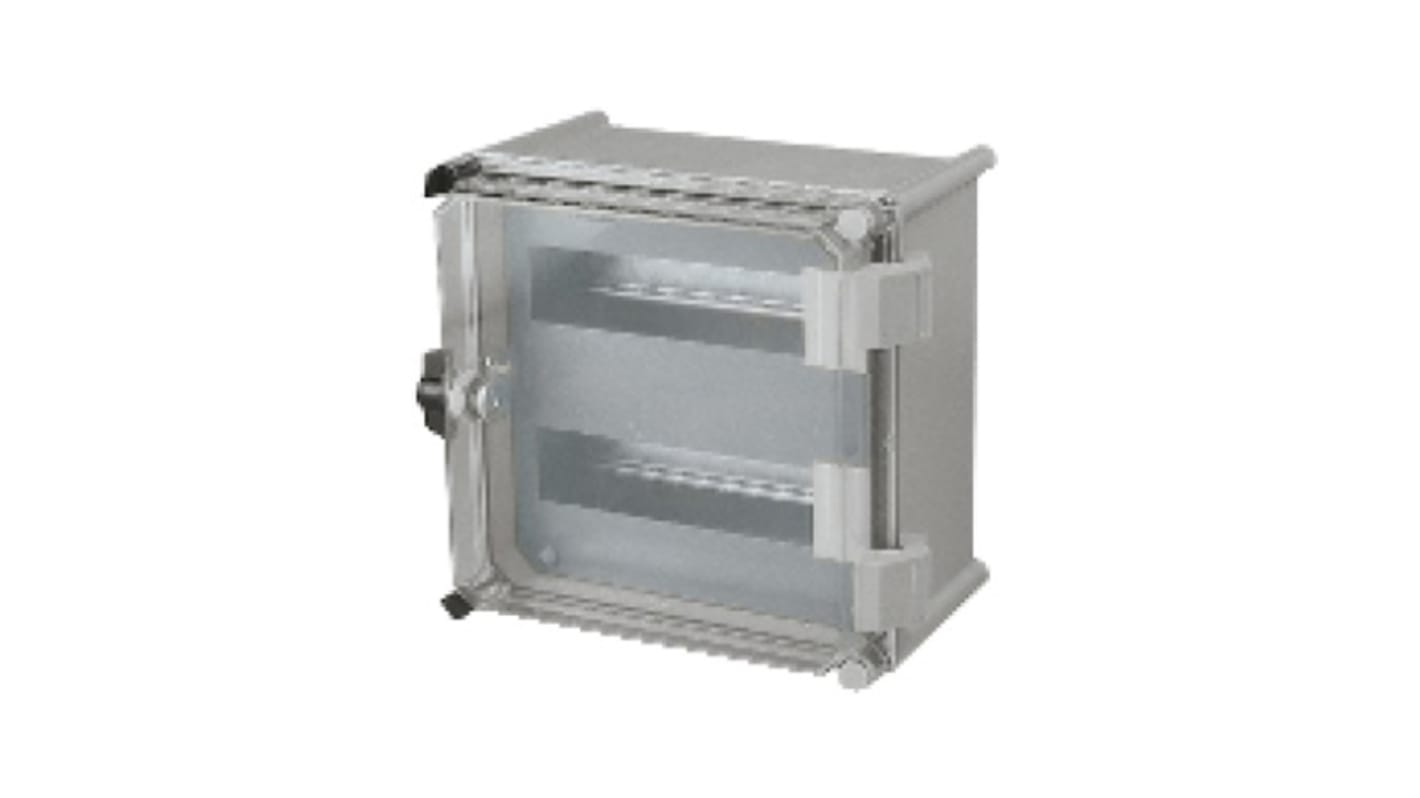

Thalassa PLS Compatible NSYDLS24 Multi-Purpose DLS Modular Distribution Chassis.


From Schneider Electric this is the DLS Modular Distribution Chassis compatible or the Thalassa PLS range of general purpose enclosures. The multi-purpose enclosure chassis mounts onto the front of the enclosure by 2 x 35 mm DIN rail and a front cut-out panel plate. The NSYDLS24 Multi-Purpose DLS Modular Distribution Chassis is one of a range of Thalassa PLS General Purpose mounting accessories available from Schneider Electric with all the added benefits and protection you expect from a Universal enclosure.

Features and Benefits.


  • Thalassa DLS Chassis.

  • Compatible with Thalassa PLS General Purpose Enclosures.

  • Mounts onto the front of the enclosure.

  • The front panel is Self-Extinguishing (added protection).

  • Chassis is made from Galvanised steel (chassis and rails).

  • Colour is grey RAL 7032.

  • Cut out plate.

  • 2 x Cut outs.

  • What is Included?

  • 1 x Chassis structure, 1 x Front panel, 2 x 35 mm DIN rail.

    • Thalassa PLS General Purpose Insulating Enclosure Modular Boxes.


    The Thalassa PLS range are multi-purpose enclosures from Schneider Electric have a fibreglass reinforced polyester body. It has mounting bosses already moulded with M6 inserts. The lid is secured with 4, 6 or 8 screws according to size. The Thalassa PLS general purpose enclosure can be connected horizontally and vertically to form sets for different functions.

    Thalassa PLS Range Features and Benefits


  • Total insulation for realisation of Class II equipment

  • IP65 and IK09 rated Enclosures

  • UL/CUL certification

  • Self-extinguishing 960° test

  • Suitable for indoor or outdoor use

  • No Electrical contact risk

  • Resistant to harsh atmospheres

  • Can be used in a large temperature range

  • Easy to machine and the machining does not produce corrosion

  • Halogen free

  • Long life lasting without maintenance

  • Locking system is outside of the protected area
    • ;
  • Perforated 1 piece chassis plate and 4 stainless steel fixing lugs are available separately

    • Schneider Electric Accessories
