Hammond 1427 Series Aluminium DIN Rail Clip for Use with 35 mm DIN Rail 51 mm x 100 mm x 8mm

모든 Enclosure Accessories 열람하기
대량 구매 할인 기용 가능
View bulk pricing options

Subtotal (1 unit)*

₩22,760.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 2 개 단위 배송 준비 완료
  • 추가로 2026년 10월 06일 부터 90 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량
한팩당
1 - 4₩22,760.00
5 - 9₩22,080.00
10 +₩21,360.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:
818-0609
제조사 부품 번호:
1427DIN100M
제조업체:
Hammond
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Hammond

Accessory Type

DIN Rail Clip

Product Type

DIN Rail Clip

Length

100mm

For Use With

35 mm DIN Rail

Width

8mm

Material

Aluminium

Height

51mm

Thread Size

6-32

Series

1427

Standards/Approvals

RoHS

Hazardous Area Certification

No

COO (Country of Origin):
CA

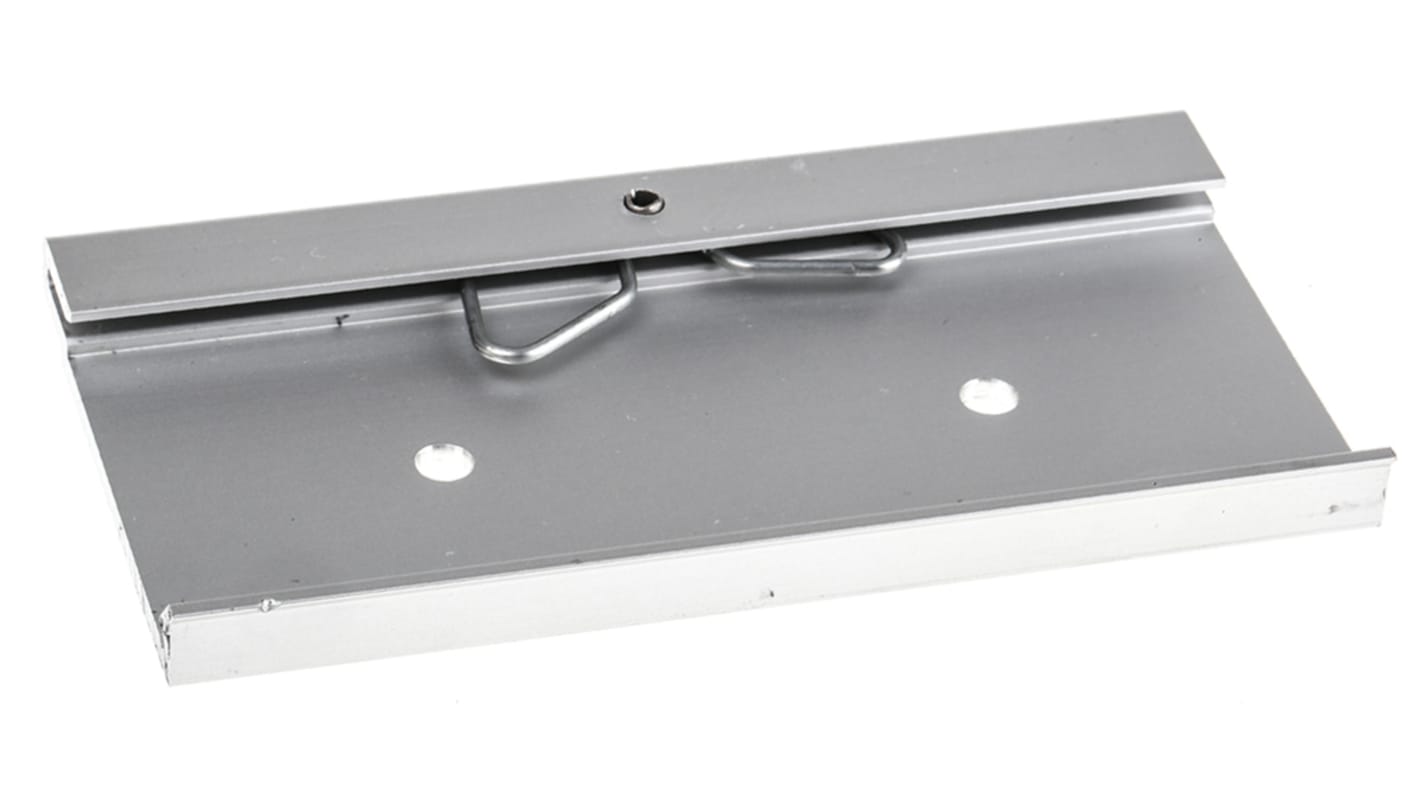

Hammond DIN Rail Clip, 100 (L) x 51 (W) x 8mm (H), Spring-Loaded Removal, 56kg Maximum Load - 1427 Series - 1427DIN100M


Choose this DIN rail clip from Hammond to take the hard work out of mounting hefty enclosures. It lets you adapt equipment without built-in DIN rail mountings so you can still enjoy the convenience of installing your device enclosures quickly and easily on a standard 35mm top-hat rail. The clips are made of lightweight aluminium that's hardwearing but won't add strain to your finished assembly. You can use this clip to secure a load of up to 56kg, so it's a safe bet when you're looking to mount heavier gadgets.

Features & Benefits


• Pre-drilled holes allow you to connect the clip in a jiffy

• Anodized coating on aluminium helps reduce wear and corrosion to ensure a long service life

• Steel wire spring mechanism makes speedy work of mounting or removing devices with one hand

Applications


• Electrical distribution networks

• Factory automation

• Server rooms

Does this product come with fixings?


Yes. In this kit, you get two bolts with nuts and washers. These let you mount the clip securely to your enclosure without rummaging for extra fixings.
