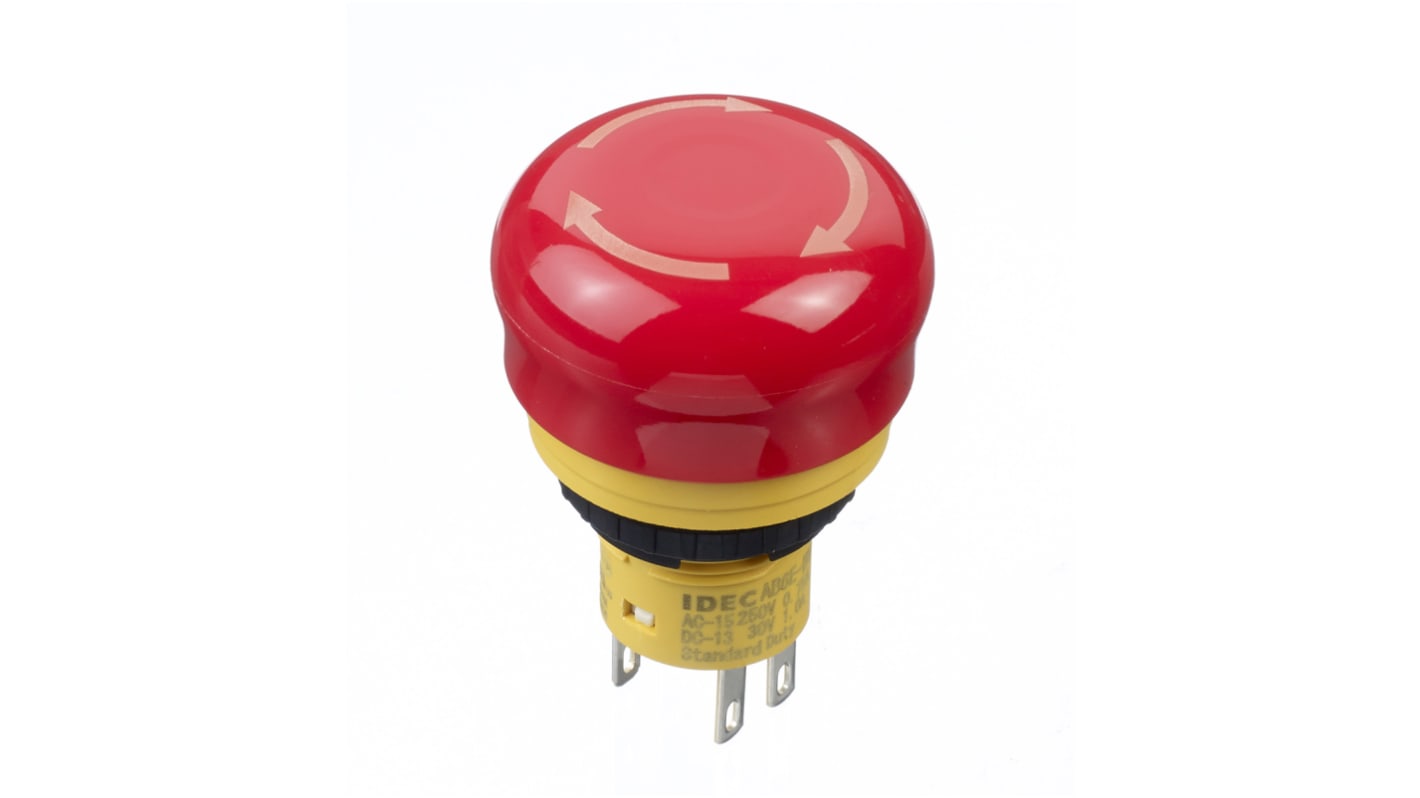

Idec X6 Series Twist Release Emergency Stop Push Button, Panel Mount, 16mm Cutout, 2NC, IP65
- RS 제품 번호:
- 828-7680
- Distrelec 제품 번호:
- 301-02-502
- 제조사 부품 번호:
- AB6E-3BV02PTRM
- 제조업체:
- Idec
Subtotal (1 unit)*
₩45,044.80
일시적 품절
- 2025년 12월 22일 부터 77 개 단위 배송
- 추가로 2026년 1월 19일 부터 57 개 단위 배송
- 추가로 2026년 3월 09일 부터 50 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩45,044.80 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 828-7680
- Distrelec 제품 번호:
- 301-02-502
- 제조사 부품 번호:
- AB6E-3BV02PTRM
- 제조업체:
- Idec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Idec | |
| Mounting Type | Panel Mount | |
| Cutout Diameter | 16mm | |
| Contact Configuration | 2NC | |
| Voltage Rating | 250V | |
| Push Button Actuation | Twist Release | |
| Series | X6 | |
| Illuminated | No | |
| IP Rating | IP65 | |
| Colour | Red | |
| Pole and Throw Configuration | SPDT | |
| Switch Operation | Latching | |
| 모두 선택 | ||
|---|---|---|
브랜드 Idec | ||
Mounting Type Panel Mount | ||
Cutout Diameter 16mm | ||
Contact Configuration 2NC | ||
Voltage Rating 250V | ||
Push Button Actuation Twist Release | ||
Series X6 | ||
Illuminated No | ||
IP Rating IP65 | ||
Colour Red | ||
Pole and Throw Configuration SPDT | ||
Switch Operation Latching | ||
- COO (Country of Origin):
- JP
Idec X6 Series
X6 Series emergency stop switches provide the highest level of safety, because the unibody design eliminates the possiblity of the contact blocks falling off the switch.
The smooth button is ideal for applications that require extreme cleanliness, such as food processing machines or
semiconductor manufacturing equipment. They are also suitable for applications requiring a sleek design of emergency stop
switches, such as medical equipment.
The smooth button is ideal for applications that require extreme cleanliness, such as food processing machines or
semiconductor manufacturing equipment. They are also suitable for applications requiring a sleek design of emergency stop
switches, such as medical equipment.
Available in two button sizes and colours
Pushlock pull / turn reset
Reverse energy structure
UL, C-UL recognized, EN compliant
Safey Lock mechanism (IEC 60947-5-5;6.2)
IP65 rated
Pushlock pull / turn reset
Reverse energy structure
UL, C-UL recognized, EN compliant
Safey Lock mechanism (IEC 60947-5-5;6.2)
IP65 rated
Idec Push Buttons and Accessories
Idec offers a variety of products grouped by various sizes and features which are best suited for your unique project needs.
