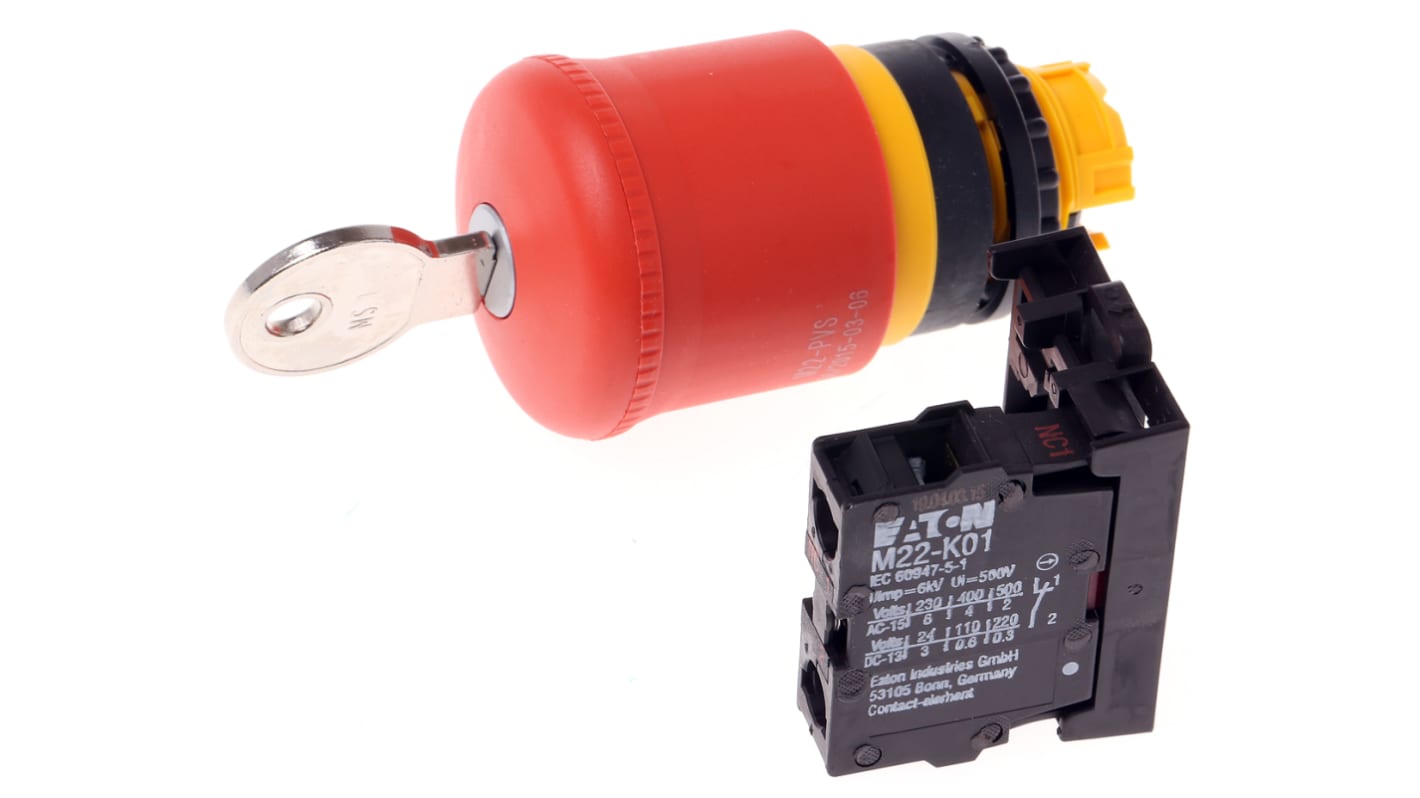

Eaton RMQ Titan M22 Series Key Release Emergency Stop Push Button, Panel Mount, 22.5 mm Cutout, 1 NC, IP66, IP67, IP69K

RS 제품 번호:: 810-3790
제조사 부품 번호:: 216514 M22-PVS/K01
제조업체:: Eaton

Eaton RMQ Titan M22 Series Key Release Emergency Stop Push Button, Panel Mount, 22.5 mm Cutout, 1 NC, IP66, IP67, IP69K

Subtotal (1 unit)*

₩149,233.50

27 개 단위 배송 준비 완료
추가로 2026년 6월 09일 부터 15 개 단위 배송
추가로 2026년 6월 16일 부터 15 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩149,233.50

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 810-3790
제조사 부품 번호:: 216514 M22-PVS/K01
제조업체:: Eaton

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Eaton
	Mount Type	Panel Mount
	Product Type	Emergency Stop Push Button
	Cutout Diameter	22.5mm
	Contact Configuration	1 NC
	Push Button Actuation	Key Release
	Series	RMQ Titan M22
	Illuminated	No
	IP Rating	IP66, IP67, IP69K
	Colour	Red
	Terminal Type	Screw
	Head Style	Mushroom
	Number of Auxiliary Contacts	1
	Depth	115mm
	Switch Configuration	1 NC
	Hazardous Area Certification	NO
	Standards/Approvals	CSA-C22.2 No. 94-91, UL 508, CE marking, CSA-C22.2 No. 14-05, IEC/EN 60947-5
	Width	38mm
	Push Button Material	Plastic
	Safety Contacts	1 NC

	모두 선택
	브랜드 Eaton
	Mount Type Panel Mount
	Product Type Emergency Stop Push Button
	Cutout Diameter 22.5mm
	Contact Configuration 1 NC
	Push Button Actuation Key Release
	Series RMQ Titan M22
	Illuminated No
	IP Rating IP66, IP67, IP69K
	Colour Red
	Terminal Type Screw
	Head Style Mushroom
	Number of Auxiliary Contacts 1
	Depth 115mm
	Switch Configuration 1 NC
	Hazardous Area Certification NO
	Standards/Approvals CSA-C22.2 No. 94-91, UL 508, CE marking, CSA-C22.2 No. 14-05, IEC/EN 60947-5
	Width 38mm
	Push Button Material Plastic
	Safety Contacts 1 NC

Eaton RMQ Titan Series Emergency Stop Push Button, Plastic, Red - 216514 M22-PVS/K01

This Eaton emergency stop push button is a crucial component in automation, electronics, electrical, and mechanical industries. Designed to provide a safe and reliable emergency stop solution, this panel mount push button features key release functionality and a 22mm cutout diametre. With an NC contact configuration and a voltage rating of 12-30V AC, this red illuminated push button is ideal for various applications.

Features & Benefits

• Key release functionality for quick emergency response

• NC contact configuration for normally closed operation

• 22mm cutout diametre for easy installation

• Red Illuminated button for visual indication

Applications

• Emergency Stop in Industrial Machinery

• Safety Shutdown systems in Control Panels

• Automated Process Halt Mechanisms in Factories

Can it be easily installed in existing control panels?

Yes, this emergency stop push button can be panel-mounted in control panels with a 22mm cutout diametre.

Will it provide visual indication during emergency situations?

Yes, the red illuminated button ensures clear visual feedback when activated.

Is it suitable for use in harsh industrial environments?

Yes, with an IP66 rating, this push button is designed to withstand tough conditions.

Can it be integrated into automation systems for immediate emergency responses?

Yes, the NC contact configuration allows for quick emergency shutdowns in automated processes.

Does it require additional accessories for installation?

No, this emergency stop push button comes as a complete unit ready for installation.

Note

Eaton formerly known as Moeller
