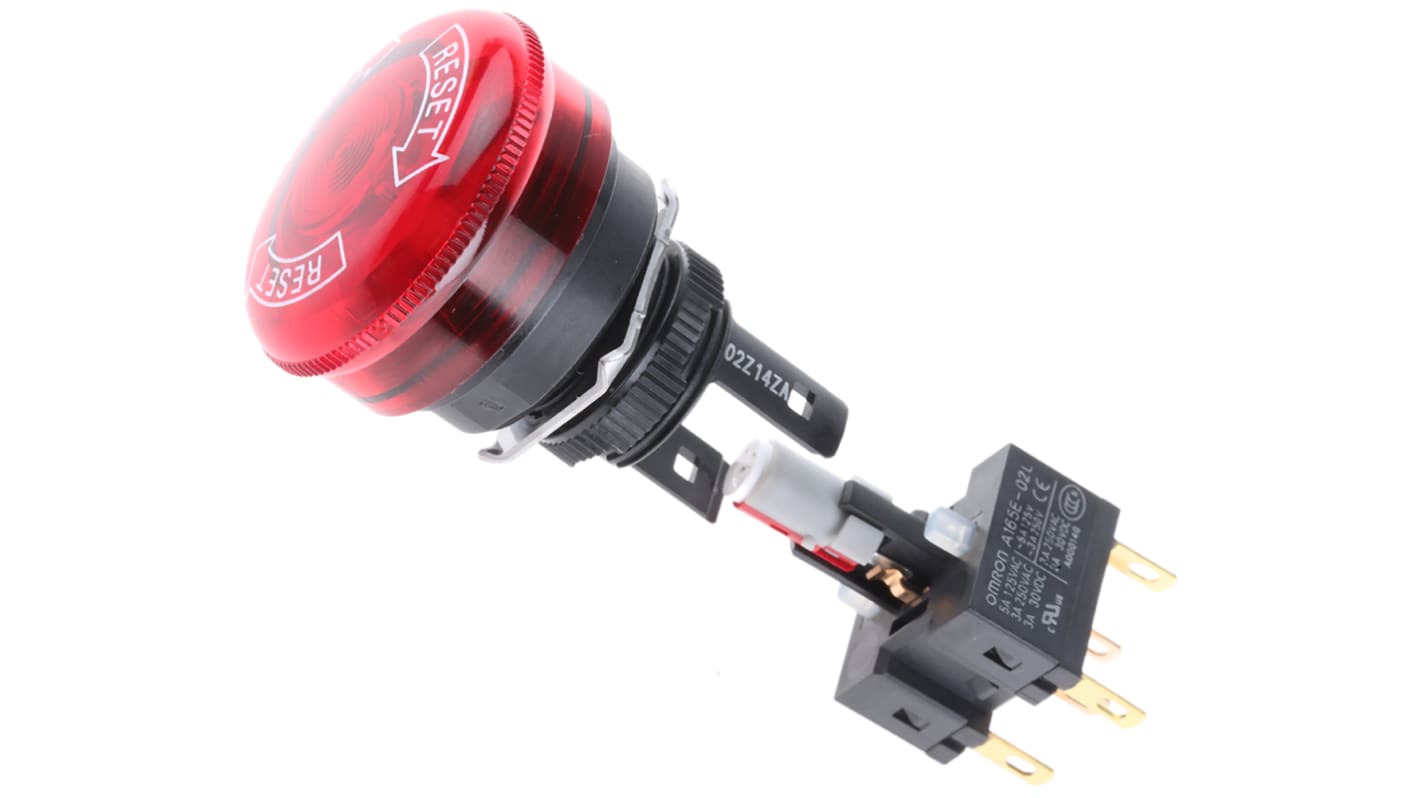

Omron A165E Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 16mm Cutout, 2NC, IP65
- RS 제품 번호:
- 757-9070
- 제조사 부품 번호:
- A165E-LS-24D-02
- 제조업체:
- Omron
가격 개당**
₩112,800.00
34 <재고있음> 5-9영업일내 홍콩 발송*
* 배송 날짜는 선택한 수량과 배송 주소에 따라 달라질 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩112,800.00 |
** 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 757-9070
- 제조사 부품 번호:
- A165E-LS-24D-02
- 제조업체:
- Omron
- COO (Country of Origin):
- JP
A165E Series Emergency Stop Switch
The A165E series of emergency stop switches feature a modular construction that allows the switch to be separated for easy wiring but still benefit from the easy handling of a one piece unit. The direct opening mechanism of this E-stop switch has a minimum contact separation of 3mm in accordance with EN60947-5-1.
Push to lock, turn to reset
Direct opening mechanism with minimum contact separation of 3mm in accordance with EN60947-5-1
Safety lock mechanism prevents misuse (no tampering in accordance with EN418)
Short mounting depth, less than 28.5mm below panel
30mm pushbutton head
IP65 protection
Blank name plate available separately, yellow vinyl chloride
Direct opening mechanism with minimum contact separation of 3mm in accordance with EN60947-5-1
Safety lock mechanism prevents misuse (no tampering in accordance with EN418)
Short mounting depth, less than 28.5mm below panel
30mm pushbutton head
IP65 protection
Blank name plate available separately, yellow vinyl chloride
Standards
EN418, EN60947-5-1
Approvals
UL, cUL
Omron A165E Series Emergency Stop Push Button, Panel Mount, 2NC Contact Configuration - A165E-LS-24D-02
This emergency stop push button plays a crucial role in ensuring safety within automation and machinery operations. It is designed for panel mounting, allowing for quick and efficient shutdowns during emergencies. Its robust construction and illuminated feature provide excellent visibility, suitable for a range of industrial environments.
Features & Benefits
• Illuminated design enhances visibility during use
• IP65 rating offers protection against dust and water ingress
• Twist release mechanism provides intuitive actuation
• Dual normally closed contacts ensure dependable performance
• Compact design optimises space in panel installations
• IP65 rating offers protection against dust and water ingress
• Twist release mechanism provides intuitive actuation
• Dual normally closed contacts ensure dependable performance
• Compact design optimises space in panel installations
Applications
• Suitable for emergency stop circuits in machinery
• Ideal for control panels in manufacturing settings
• Used in automation systems that require safety cut-off
• Commonly applied in electrical and mechanical equipment
• Ideal for control panels in manufacturing settings
• Used in automation systems that require safety cut-off
• Commonly applied in electrical and mechanical equipment
How is the button reactivated after being pressed?
It features a twist release mechanism, which requires a simple turn to reset after activation.
Can this be used with different voltage ratings?
It is specifically designed for 24V AC/DC systems and should not be used outside this rating to ensure safe operation.
What is the process for panel mounting this component?
It requires a 16mm cut-out and can be securely fitted using standard mounting techniques.
Are auxiliary contacts available for this model?
This specific model does not include auxiliary contacts
it focuses solely on primary emergency stop functions.
Emergency Stop Pushbutton
속성 | 값 |
|---|---|
| Mounting Type | Panel Mount |
| Cutout Diameter | 16mm |
| Contact Configuration | 2NC |
| Voltage Rating | 24V ac/dc |
| Push Button Actuation | Twist Release |
| Series | A165E |
| Illuminated | Yes |
| IP Rating | IP65 |
| Colour | Red |
| Supply Current | 5A |
| Depth | 48.5mm |
| Auxiliary Contacts | NO |
| Width | 18mm |
| Push Button Material | Plastic |
| Push Button Diameter | 30mm |
| Pole and Throw Configuration | DPST |
| Switch Operation | Turn To Reset |
