Eaton RMQ Titan M22 Series Latching Emergency Stop Push Button, 22 mm Cutout, 1 NO/1 NC, IP67
- RS 제품 번호:
- 743-5043
- 제조사 부품 번호:
- 121464 M22-PVT60P
- 제조업체:
- Eaton
Subtotal (1 unit)*
₩64,780.00
재고있음
- 13 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 + | ₩64,780.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 743-5043
- 제조사 부품 번호:
- 121464 M22-PVT60P
- 제조업체:
- Eaton
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Eaton | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 22mm | |
| Contact Configuration | 1 NO/1 NC | |
| Push Button Actuation | Latching | |
| Housing Material | Plastic | |
| Series | RMQ Titan M22 | |
| Illuminated | No | |
| IP Rating | IP67 | |
| Colour | Red | |
| Terminal Type | Screw | |
| Contact DC Voltage | 220V dc | |
| Head Style | Mushroom Head | |
| Number of Auxiliary Contacts | 1 | |
| Switch Configuration | 1 NO/1 NC | |
| Depth | 67mm | |
| Standards/Approvals | CSA-C22.2 No. 14-10, UL991Edition 3 -Revision Date 2010/06/09, CAN/CSA-C22.2 No. 94.2-07, IEC/EN 60947-5, CE marking, ANSI/UL508, UL 508, ANSI/NFPA 79 | |
| Head Diameter | 65mm | |
| Width | 60mm | |
| Safety Contacts | 1 NC | |
| Push Button Material | Plastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 Eaton | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 22mm | ||
Contact Configuration 1 NO/1 NC | ||
Push Button Actuation Latching | ||
Housing Material Plastic | ||
Series RMQ Titan M22 | ||
Illuminated No | ||
IP Rating IP67 | ||
Colour Red | ||
Terminal Type Screw | ||
Contact DC Voltage 220V dc | ||
Head Style Mushroom Head | ||
Number of Auxiliary Contacts 1 | ||
Switch Configuration 1 NO/1 NC | ||
Depth 67mm | ||
Standards/Approvals CSA-C22.2 No. 14-10, UL991Edition 3 -Revision Date 2010/06/09, CAN/CSA-C22.2 No. 94.2-07, IEC/EN 60947-5, CE marking, ANSI/UL508, UL 508, ANSI/NFPA 79 | ||
Head Diameter 65mm | ||
Width 60mm | ||
Safety Contacts 1 NC | ||
Push Button Material Plastic | ||
- COO (Country of Origin):
- DE

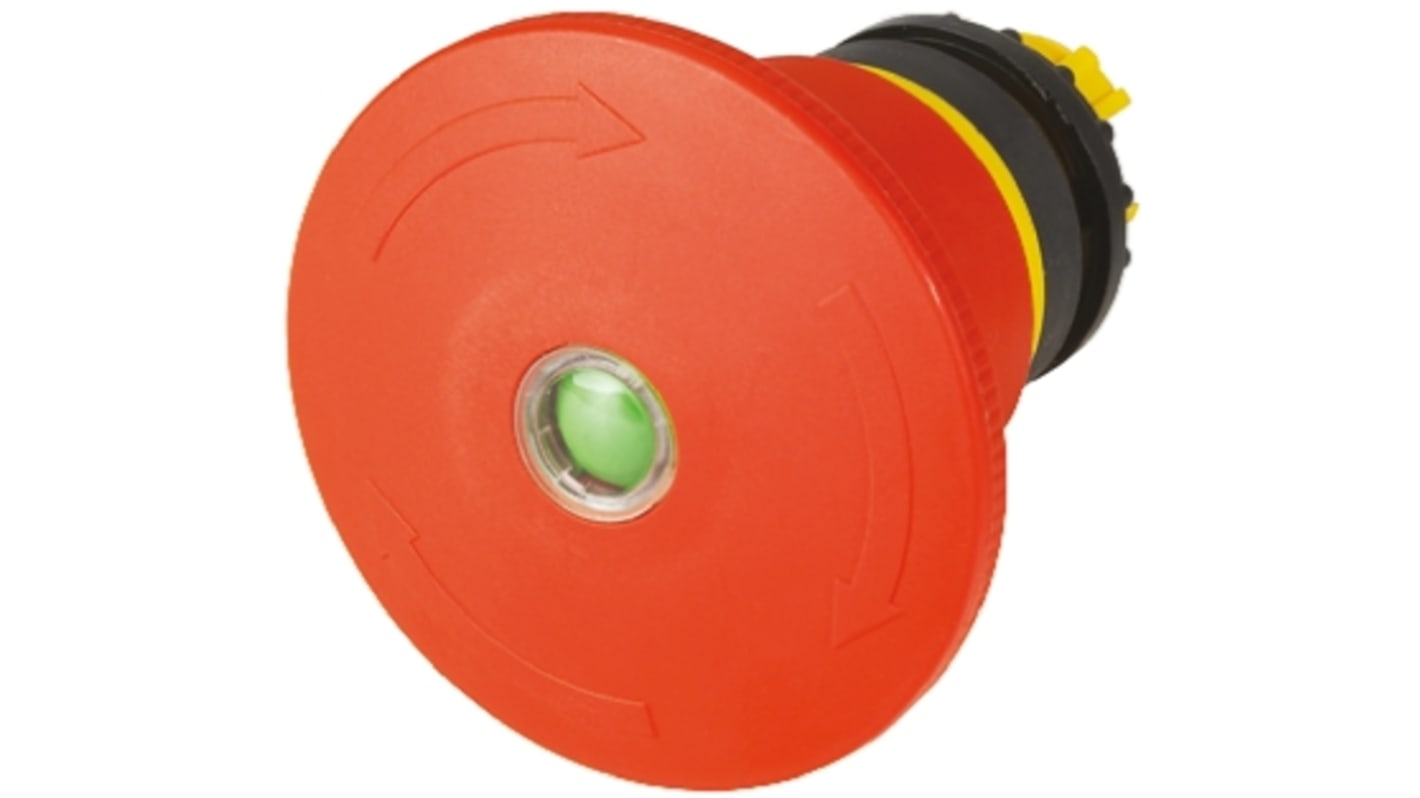

Eaton Emergency Stop Push Button, Turn Release Type, 22.5mm Cutout Diameter - RMQ Titan Series - 121464 M22-PVT60P
Want to boost safety around dangerous machinery? This Eaton emergency stop push button has your back. By applying 50N of force to the 60mm-wide actuator, you can instantly deactivate connected equipment and keep workers out of contact with hazardous parts. To restart the equipment, release the switch by turning the handle to the right. A broad operating temperature range between -25°C and +70°C makes this unit just the thing for harsh work areas. Buttons like this one are important safety features that you can find in both industrial and commercial settings, such as in factories and on escalators.
Features & Benefits
• Red colour is easy to spot and helps save time in an emergency
• Rated lifespan of 100,000 operations assures you it's highly reliable
• IP67 rating indicates it's dust-tight and waterproof even when immersed to depths of up to 1m
Can this unit cope with frequent use?
Yes, it's a hardy device that handles up to 600 operations every hour, so it's suitable for use with demanding systems.
Note
Eaton formerly known as Moeller
