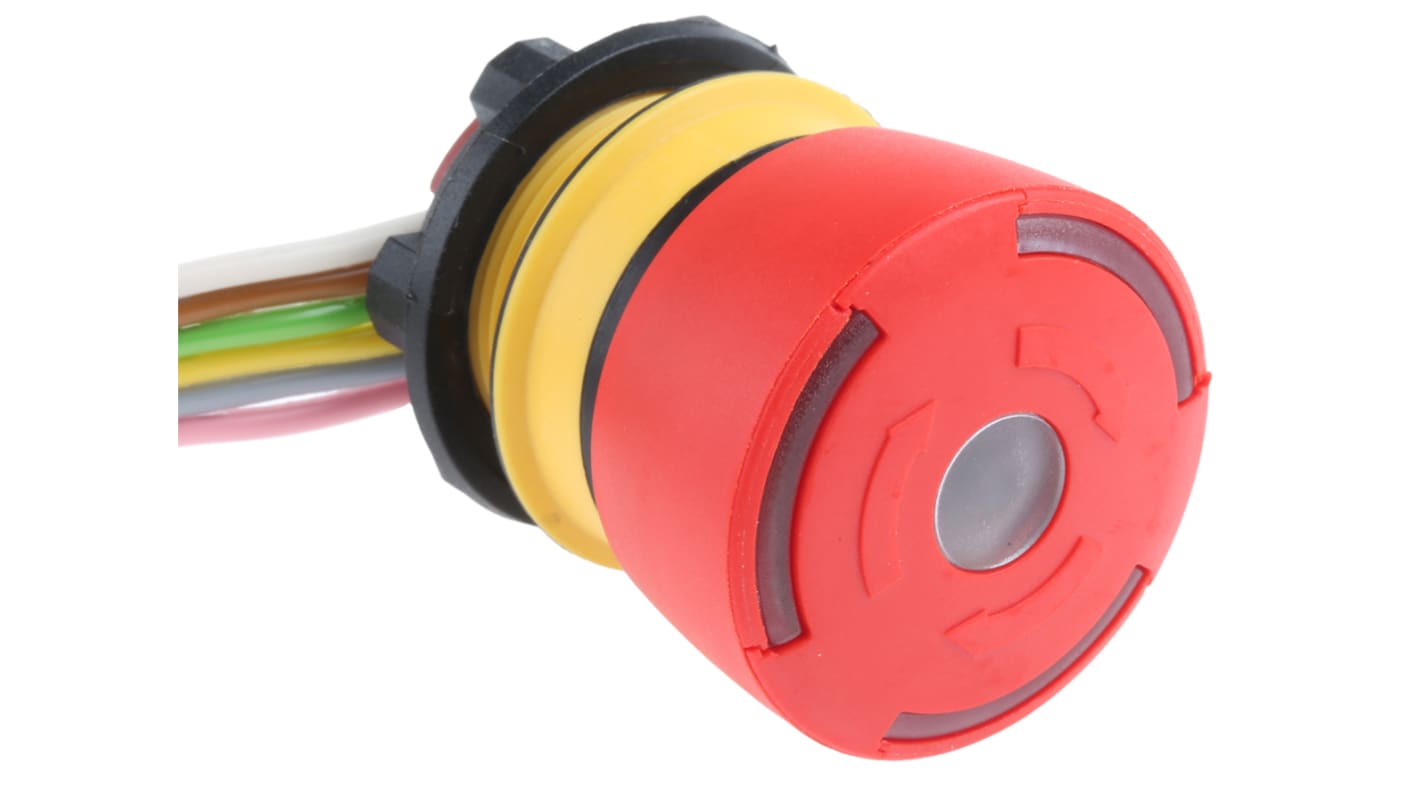

EAO 84 Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22.5 mm Cutout, SPDT, IP65

모든 Emergency Stop Push Buttons 열람하기
현재 비가용
RS는 이 제품을 더 이상 판매하지 않습니다.

대체품

이 제품은 현재 공급 불가입니다. 아래 제품들은 당사에서 추천드리는 대체품입니다.

presentation
EAO 84-5231.2B40 Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22.3 mm Cutout, 1 NO/1 NC,
RS 제품 번호
333-941

개당

₩101,127.00

RS 제품 번호:
690-6951
Distrelec 제품 번호:
136-07-058
제조사 부품 번호:
84-5031.2B40
제조업체:
EAO
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

EAO

Product Type

Emergency Stop Push Button

Mount Type

Panel Mount

Cutout Diameter

22.5mm

Contact Configuration

SPDT

Push Button Actuation

Twist Release

Series

84

Illuminated

Yes

IP Rating

IP65

Colour

Red

Contact AC Voltage

120V ac

Contact DC Voltage

250V dc

Depth

32mm

Switch Configuration

2 NC, 1 NC, 1 NO

Standards/Approvals

EN 60947-5-1EN 60947-5-5DIN EN ISO 13850EN IEC 60947-1EN IEC 60204ULSEVCEEN IEC 60529DIN IEC 60512-2-3DIN IEC 60512-2-10EN IEC 60068-2-27EN IEC 60068-2-6EN IEC 60068-2-30EN IEC 60068-2-78EN IEC 60068-2-2EN IEC 60068-2-1EN IEC 60068-2-11EN IEC 60068-2-20IEC 61000-4-2EN IEC 60068-2-14

Hazardous Area Certification

No

Length

300mm

Width

39.5mm

Safety Contacts

1 NO, 1 NC, 2 NC

Push Button Material

Plastic

COO (Country of Origin):
CH

EAO Emergency Stop Push Button, 32mm Front Diameter, 5 to 30V DC Operating Voltage Range - 84 Series - 84-5031.2B40


Stop your machinery in a hazardous situation with this emergency stop push button from EAO. Its gold contacts are highly conductive and resistant to corrosion, helping to ensure reliable switching. To prevent accidental reactivation of your machinery, the button locks in place when pressed and requires a twist to release it. The device has an operating voltage range of 5 to 30V DC for use in low-power systems. A built-in red LED means the push button illuminates when pressed, so it's easy to spot in most lighting conditions.

Features & Benefits


• Plastic material is resistant to impact and wear

• IP65 rating means it's dust-tight and protected against low-pressure water jets

• Push button head has a mushroom shape for ease of activation

• Light weight of 36g to place minimal strain on your equipment

Applications


• Automated assembly lines

• Processing equipment

• Woodworking

• Manufacturing industry

What size panel cutout do I need to mount this emergency stop push button?


This push button uses a standard 22.5mm cutout, making it easy to integrate into your existing setup.

Series 84 Low Profile Emergency Stop Switch


The range of 84 was introduced to satisfy demands of both equipment builders and users. Typical usage covers the following areas: machinery and process control equipment, including production lines, cranes, robots, moving platforms, as well as security systems and emergency exists.

Within the many different colours, the lenses are available either in plastic or anodised aluminium.

To meet modern assembly standards, this range is connected to PCBs.

The Series 84 of Low Profile Emergency Stop Swathes are useful for small control panels. If space is at a premium, Series 84 can be easily used as they are portable and compactable. A yellow protection guard is available to stop accidental activation.

The Series 84 pushbuttons are suited to a range of industrial applications and guarantee reliable switching even of every light loads.

The range requires no additional assembly because of its ’monoblock’design.

The double-break switching system can be supplied for the following switching functions:

•1 NC, 2 NC, 1 NC + 1 NO

Electrical Characteristics


New standards in emergency-stop switches comply with EN IEC 60947-5-1, EN IEC 60947-5-5 (Emergency-stop), EN ISO13850, EN 60947-5-1.

The IEC stands for International Electrotechnical Commission) and is the world’s leading organisation for the preparation and publication of International standards for all electrical, electronic and related technologies.

Environmental conditions


Operating temperature

-25°C … +65°C

Storage temperature

-25°C … +80°C

The front protection is regulated by IP65, which is rated as ’’dust tight’’ and protected against water projected from a nozzle.

They are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies (tools, dirt etc.) and moisture.

The numbers that follow IP each have a specific meaning and they represent the following:

•First Digit (intrusion protection)

•Second Digit (moisture protection)

Approvals


Approbations

UL (Underwriters Laboratories), is a world leader in product safety testing and certification

SEV (Swiss Designation)

Approvals

UL Recognised

Standards

DIN EN ISO 13850
