Schneider Electric Harmony XB5 Series Twist Release Emergency Stop Push Button, Panel Mount, 22mm Cutout, SPDT, IP66,

모든 Emergency Stop Push Buttons 열람하기

Subtotal (1 unit)*

₩111,578.00

Add to Basket
수량 선택 또는 입력
재고있음
  • 추가로 2025년 12월 08일 부터 247 개 단위 배송
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량
한팩당
1 +₩111,578.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS 제품 번호:
609-6164
Distrelec 제품 번호:
135-12-357
제조사 부품 번호:
XB5AS8445
제조업체:
Schneider Electric
제품 정보를 선택해 유사 제품을 찾기
모두 선택

브랜드

Schneider Electric

Mounting Type

Panel Mount

Cutout Diameter

22mm

Better World Product

Yes

Contact Configuration

SPDT

Push Button Actuation

Twist Release

Voltage Rating

600 V ac, 600V dc

Illuminated

No

Series

Harmony XB5

IP Rating

IP66, IP67, IP69(IP69K)

Colour

Red

Push Button Shape

mushroom

Supply Current

3A

Depth

82mm

Auxiliary Contacts

1NO/1NC

Width

40mm

Better World Verification

Green Premium

Pole and Throw Configuration

DPST

Push Button Diameter

40mm

Push Button Material

Plastic

Housing Colour

Black

Switch Operation

Slow Brake

Bezel Material

Plastic

Height

43mm

COO (Country of Origin):
CZ

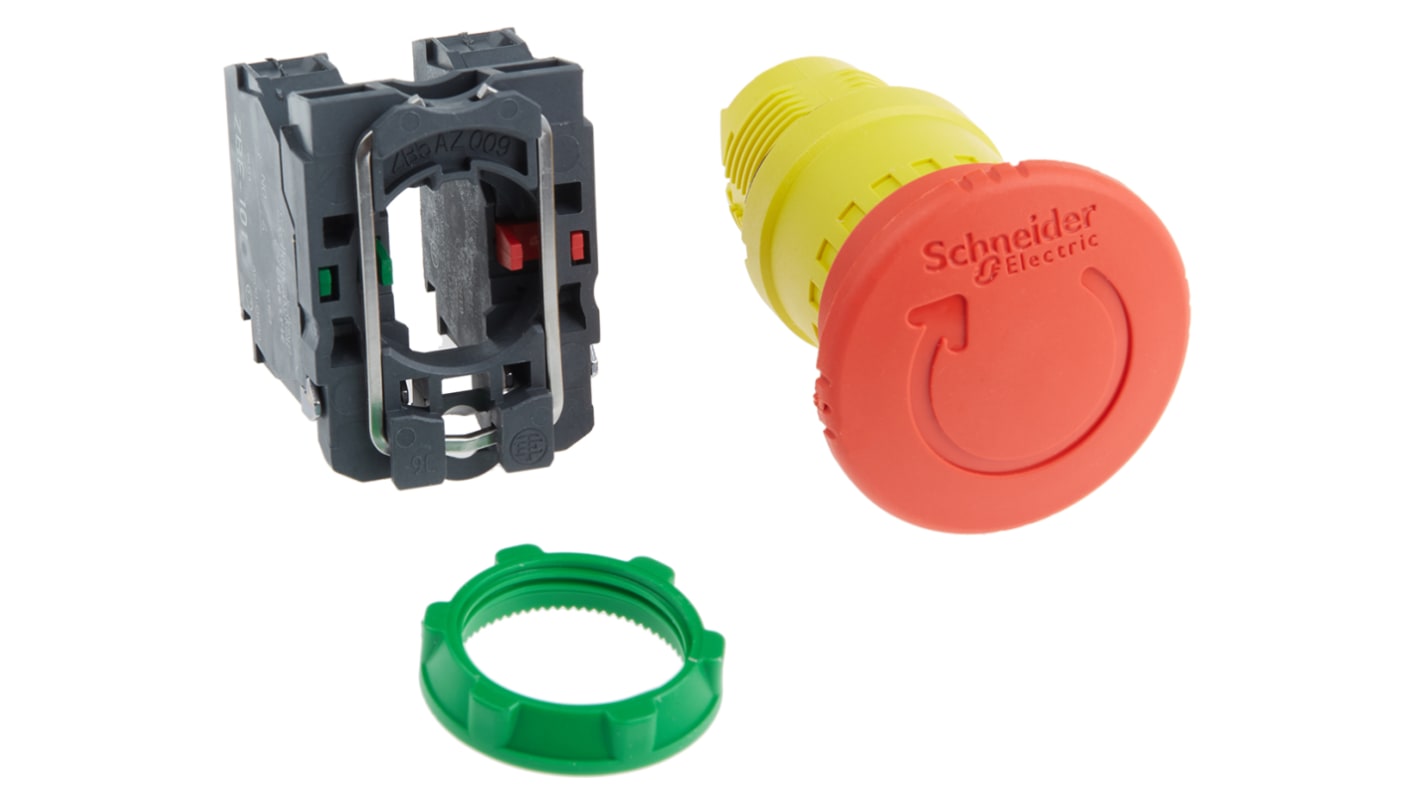

Schneider Electric Harmony XB5 Series Emergency Stop Push Button, 22mm Cutout Diameter, 600V AC Voltage Rating - XB5AS8445


This emergency stop push button is a reliable panel-mounted push button designed for industrial safety applications. With a 22mm cutout diameter and a twist release mechanism, this device is engineered to provide immediate stopping control. Its robust construction includes an IP69K rating, making it suitable for challenging environments, while an ergonomic mushroom head enhances usability.

Features & Benefits


• 22mm cutout offers versatility for diverse mounting applications
• Twist release mechanism ensures swift and secure operation
• Robust IP66, IP67, and IP69K ratings for waterproof capabilities
• SPDT contact configuration for reliable switching action
• Slow-break operation enhances safety during emergency situations
• Mechanical durability rated for 300,000 cycles for long-lasting use

Applications


• Used for controlling machinery and equipment in factories
• Ideal for emergency shutdown and operator safety systems
• Utilised in environments exposed to dust and moisture
• Effective for automation systems requiring immediate response
• Employed in electrical panels and machine control stations

How does the waterproof rating benefit operation in demanding settings?


The high IP69K rating protects the device against water and dust ingress, making it suitable for use in harsh industrial environments where exposure to cleaning agents and moisture is common.

Can the push button be wired for different applications?


Yes, the terminals allow for connections up to 2 x 1.5 mm² for flexible wiring configurations, adapting to various operational needs while maintaining compliance with EN 60947-1 standards.

What makes the twist release mechanism an advantage in safety applications?


The twist release feature minimises the risk of accidental activation, ensuring that operators can stop machinery securely and swiftly in emergencies, enhancing overall safety.

What type of electrical connections can be used with this button?


It features screw clamp terminals suitable for both standard and fine wires, allowing compatibility with varying cable types, ensuring robust electrical connections.

What is the operational temperature range for this device?


The push button operates effectively within a temperature range of -40°C to 70°C, allowing it to function reliably in extreme environmental conditions.
