제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	ABB
	Mount Type	Panel
	Product Type	Emergency Stop Push Button
	Cutout Diameter	22.5mm
	Contact Configuration	1 NO/1 NC
	Push Button Actuation	Pull Release
	Housing Material	Polyester
	Illuminated	No
	Series	Compact
	IP Rating	IP67, IP66, IP69K
	Colour	Red
	Terminal Type	Screw
	Number of Auxiliary Contacts	3
	Depth	0.073m
	Hazardous Area Certification	NO
	Length	73.00mm
	Standards/Approvals	No
	Push Button Material	Plastic

	모두 선택
	브랜드 ABB
	Mount Type Panel
	Product Type Emergency Stop Push Button
	Cutout Diameter 22.5mm
	Contact Configuration 1 NO/1 NC
	Push Button Actuation Pull Release
	Housing Material Polyester
	Illuminated No
	Series Compact
	IP Rating IP67, IP66, IP69K
	Colour Red
	Terminal Type Screw
	Number of Auxiliary Contacts 3
	Depth 0.073m
	Hazardous Area Certification NO
	Length 73.00mm
	Standards/Approvals No
	Push Button Material Plastic

Machine Guarding and Safety Range Overview

COO (Country of Origin):: CN

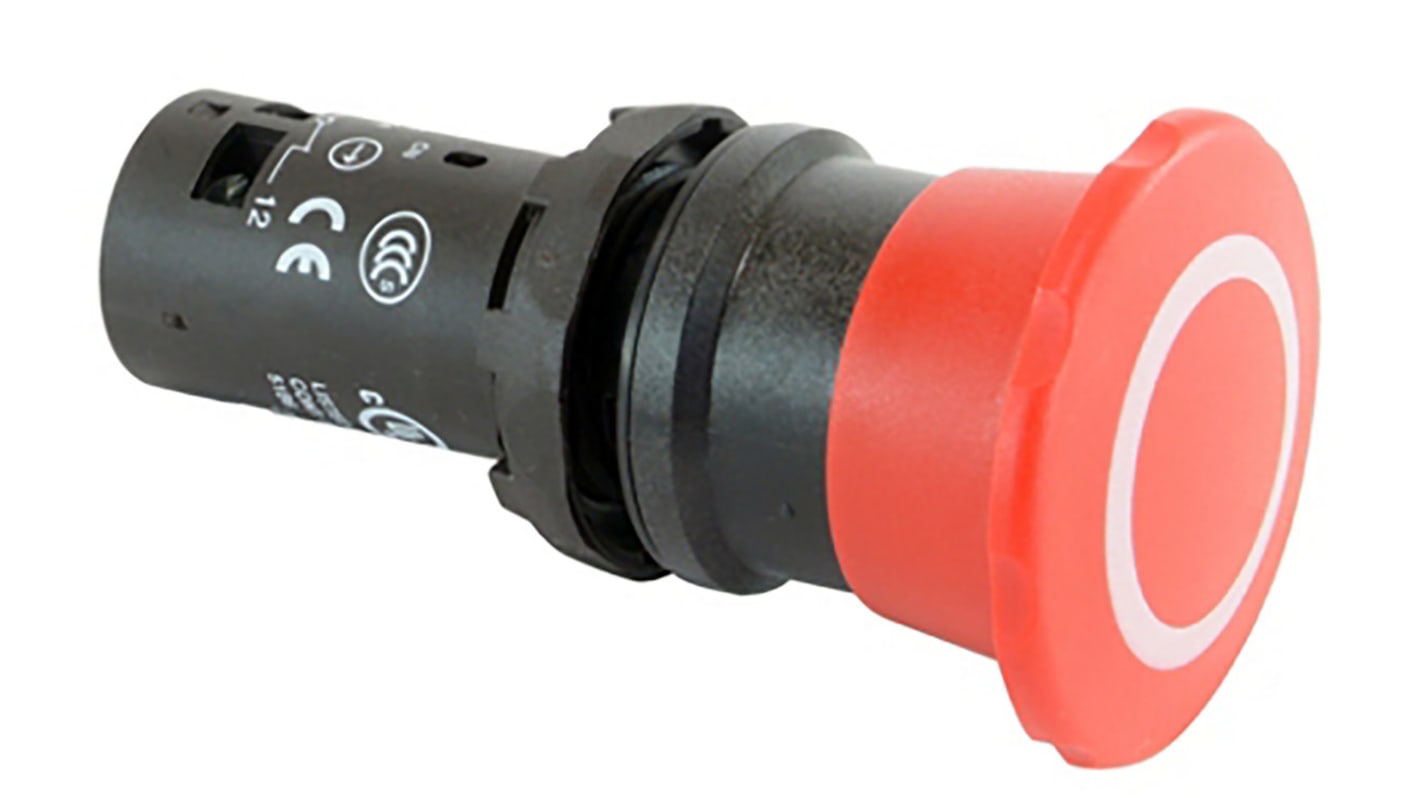

ABB Compact Series Emergency Stop Push Button, Red, 22.5mm Cut-out Diameter - 1SFA619551R1071 - CE4P-10R-11

This emergency stop push button provides a manual means to halt machinery and processes in industrial control panels. Designed for panel mounting, it offers a large mushroom head for Rapid actuation and a pull-release mechanism to reset the actuator. The device is intended for automation and electrical environments where clear, immediate shutdown control is required.

Features and Benefits:

• 1NO/1NC contacts deliver both make and break circuits for safety
• 2A contact rating supports low-current control and signalling
• 300V AC contact capability enables use on common control supplies
• Screw terminals allow secure wiring and straightforward maintenance
• Polyester housing resists impact and reduces electrical insulation risk
• IP66 IP67 IP69K protection withstands washdown and harsh conditions

Applications

• Suitable for emergency isolation on automated assembly lines
• Ideal for control panels in food processing with high-pressure washdowns
• Used with motor starters and relay logic in manufacturing cells
• Can be used for safety shutdowns in mechanical test rigs
• Suitable for retrofitting into existing panel-mount E-stop arrays

How is the device reset after actuation?

The button uses a pull-release mechanism that requires a manual pull to restore the actuator to its ready position.

What head style aids quick operation under stress?

The large mushroom-shaped head provides an easily located surface for fast, confident actuation.

How many auxiliary contacts are provided for signalling?

Two auxiliary contacts are included to enable separate circuitry for monitoring or interlocking functions.

What mounting aperture is needed for installation?

A 22.5mm cutout is required for panel installation to accommodate the mounting bushing and secure the body.

Which Terminal and mounting arrangements suit maintenance teams?

The unit uses screw-type terminals for straightforward conductor connection and is designed for panel-mount installation to simplify access.

Approvals

UL,CSA

Standards

EN50013, EN60947-1, EN60947-5-1

Supplied with

Key release type supplied with 2 keys

ABB Compact Series Pull Release Emergency Stop Push Button, Panel, 22.5 mm Cutout, 1 NO/1 NC, IP67, IP66, IP69K
