제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	SICK
	Product Type	Emergency Stop Push Button
	Housing Material	Plastic
	Series	ES21
	Illuminated	Yes
	IP Rating	IP65
	Colour	Red
	Depth	61mm
	Standards/Approvals	IEC 60529
	Hazardous Area Certification	No
	Length	61mm
	Head Diameter	22mm
	Width	67 mm
	Push Button Material	Plastic

	모두 선택
	브랜드 SICK
	Product Type Emergency Stop Push Button
	Housing Material Plastic
	Series ES21
	Illuminated Yes
	IP Rating IP65
	Colour Red
	Depth 61mm
	Standards/Approvals IEC 60529
	Hazardous Area Certification No
	Length 61mm
	Head Diameter 22mm
	Width 67 mm
	Push Button Material Plastic

Datasheet - ES21-AT1140

COO (Country of Origin):: DE

Overview

ES21 emergency stop pushbuttons are a must for automated machines and systems. They provide a means for a person to stop a machine or system in the event of an emergency.

Depending on the variant, the emergency stop pushbuttons are either integrated into a machine operator panel or mounted directly on the machine.

At a glance

Optionally available as a built-in version or as a surface-mounted version with housing

Built-in version with self-monitoring emergency stop contacts

Status display with colored mark or LED ring illumination

Variants with protective collar

Variants with M12 male connector

Your Benefit

A wide range of variants for custom-fit integration into your machine

High level of safety thanks to self-monitoring: It switches off the machine in the event of faulty installation or mechanical damage

Quick and User friendly reading of the device status

Reduction of unplanned machine stops, for instance in busy work areas

Can be installed quickly and cost effectively, at the same time reducing sources of error during wiring

Simple, safe series connection with Flexi Loop

Applications

Fields of applications

Safe stop function for machinery and systems

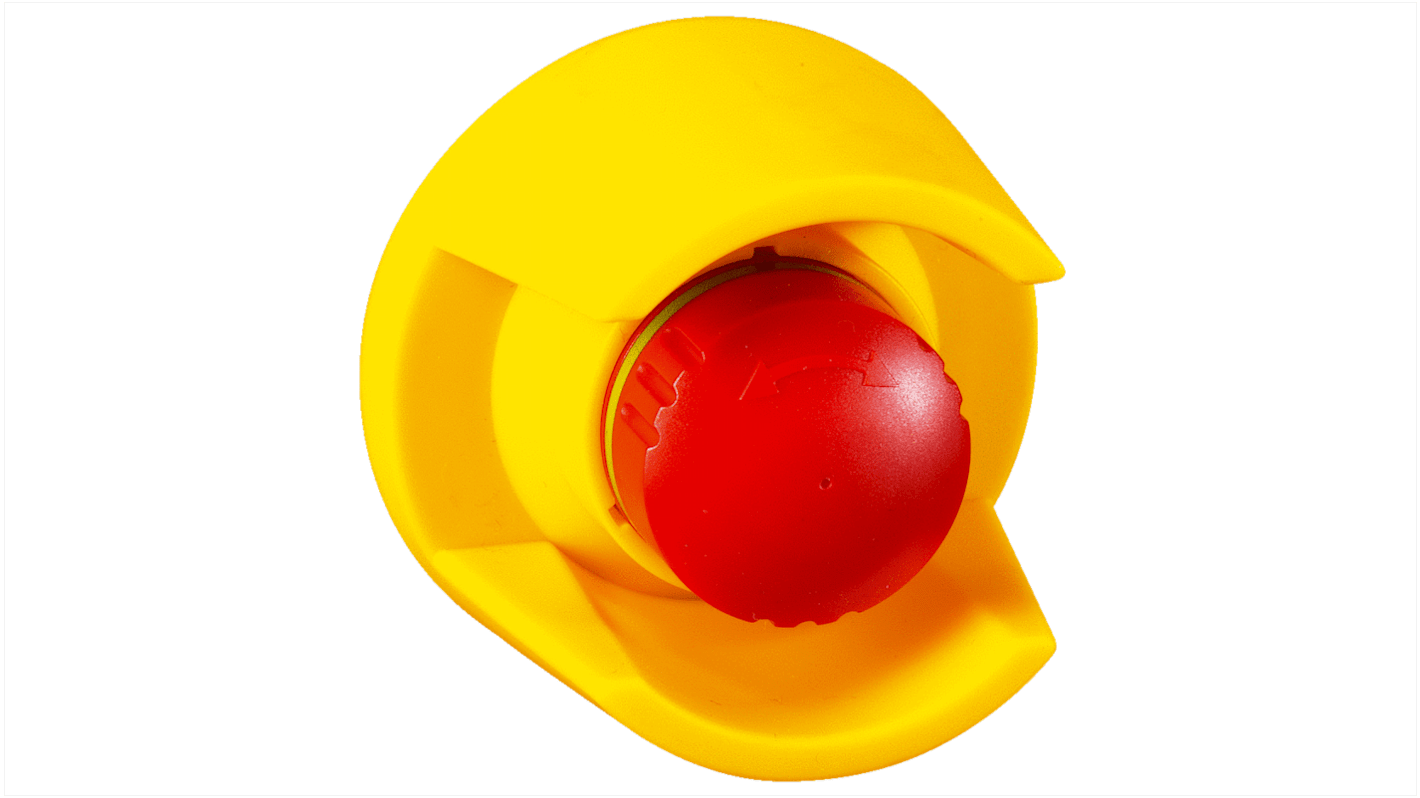

SICK ES21 Series Illuminated Emergency Stop Push Button, IP65

Overview

At a glance

Your Benefit

Applications
