Schneider Electric Harmony Series Pull to Release Emergency Stop Push Button, Panel Mount, 22 mm Cutout, 2 NC, IP65

RS 제품 번호:: 221-1874
제조사 부품 번호:: XB6ETN521P
제조업체:: Schneider Electric

Schneider Electric Harmony Series Pull to Release Emergency Stop Push Button, Panel Mount, 22 mm Cutout, 2 NC, IP65

Subtotal (1 pack of 5 units)*

₩295,880.00

15 개 단위 배송 준비 완료
추가로 2026년 8월 19일 부터 10 개 단위 배송
추가로 2026년 8월 26일 부터 20 개 단위 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당	한팩당*
5 +	₩59,176.00	₩295,880.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 221-1874
제조사 부품 번호:: XB6ETN521P
제조업체:: Schneider Electric

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Schneider Electric
	Mount Type	Panel Mount
	Product Type	Emergency Stop Push Button
	Cutout Diameter	22mm
	Contact Configuration	2 NC
	Push Button Actuation	Pull to Release
	Housing Material	Plastic
	Series	Harmony
	Illuminated	No
	IP Rating	IP65
	Colour	Red
	Terminal Type	Solder Terminal
	Head Style	Round
	Contact DC Voltage	125V dc
	Contact AC Voltage	240V ac
	Contact Current	1.5A
	Standards/Approvals	GB 14048.5, JIS C8201-5-1, UL 508, EN 60947-5-1, CSA C22.2 No 14, EN 60947-5-5
	Hazardous Area Certification	No
	Head Diameter	32mm

	모두 선택
	브랜드 Schneider Electric
	Mount Type Panel Mount
	Product Type Emergency Stop Push Button
	Cutout Diameter 22mm
	Contact Configuration 2 NC
	Push Button Actuation Pull to Release
	Housing Material Plastic
	Series Harmony
	Illuminated No
	IP Rating IP65
	Colour Red
	Terminal Type Solder Terminal
	Head Style Round
	Contact DC Voltage 125V dc
	Contact AC Voltage 240V ac
	Contact Current 1.5A
	Standards/Approvals GB 14048.5, JIS C8201-5-1, UL 508, EN 60947-5-1, CSA C22.2 No 14, EN 60947-5-5
	Hazardous Area Certification No
	Head Diameter 32mm

COO (Country of Origin):: CN

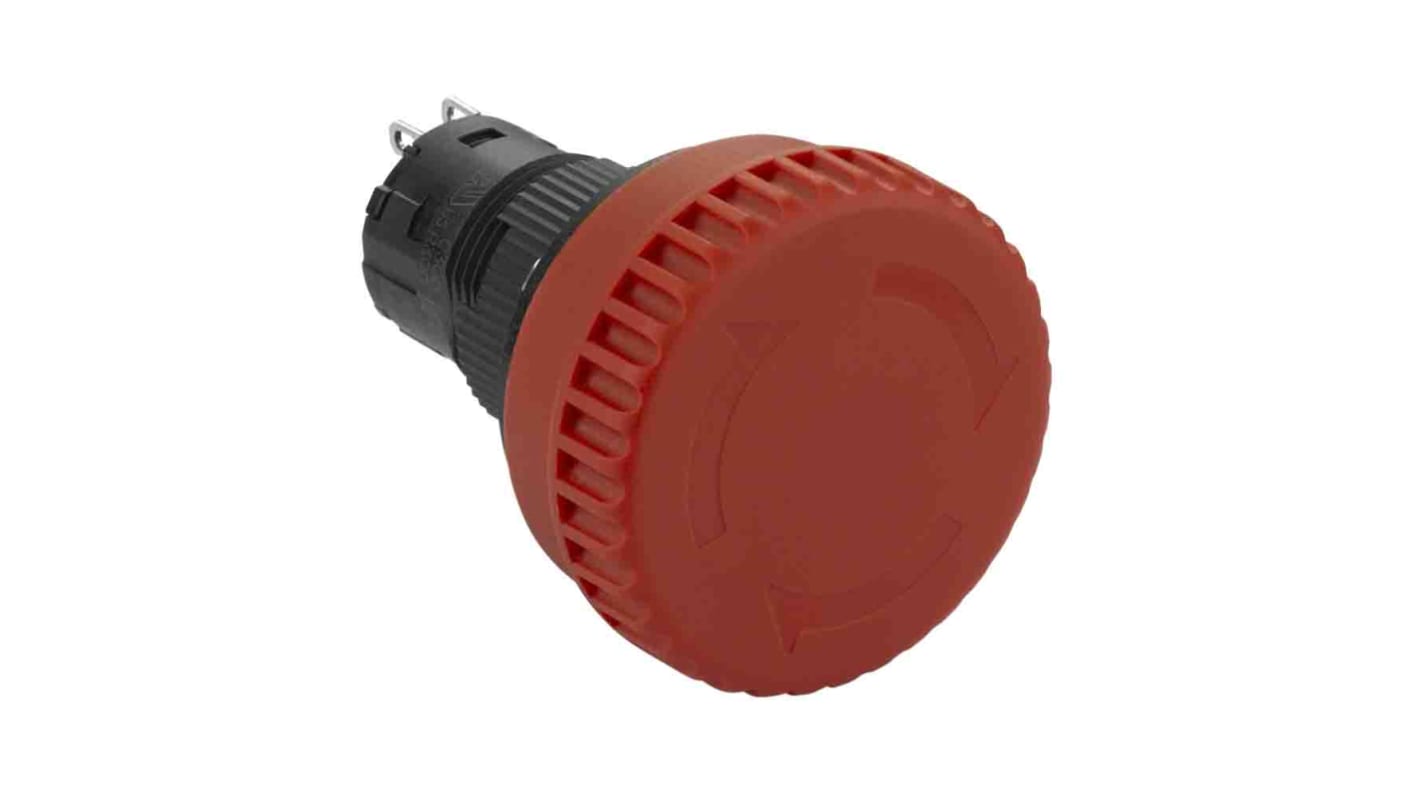

Schneider Electric XB6E Series Emergency Stop Push Button, 22mm Cutout Diameter, 2NC Contact Configuration - XB6ETN521P

This emergency stop push button is designed for panel mounting and features a 22mm cutout diameter. With its robust construction and distinctive red colour, it is tailored to meet the demanding needs of industrial safety controls. The contact configuration consists of 2NC, ensuring reliable operation in critical situations.

Features & Benefits

• Offers reliable 2NC contact configuration for safety
• Pull to release action ensures urgent operation
• IP65 rated for protection against dust and moisture
• Suitable for a variety of industrial applications
• Crafted for durability with a plastic bezel

Applications

• Ideal for machinery safety systems
• Used with automated equipment requiring emergency shutdowns
• Implemented in control panels for industrial
• Utilised in environments where quick access is VITAL
• Supports emergency stop functions in electrical installations

How does the pull-to-release function enhance safety?

The pull-to-release function allows for immediate activation during emergencies, ensuring that operators can quickly and effectively halt operations, minimising the risks of accidents or equipment damage.

What environmental protections does the design include?

The IP65 rating ensures that the push button is shielded from dust and water jets, allowing it to perform reliably in challenging industrial conditions where exposure to contaminants is a concern.

Can this push button be incorporated into existing panels?

Yes, with a 22mm cutout diameter, this unit is compatible with standard panel cutouts, making integration into existing systems straightforward and efficient.

What kind of environments is this push button suitable for?

It is designed for industrial settings, including manufacturing plants and assembly lines, where operational safety and swift accessibility are crucial.

How does the construction material contribute to its functionality?

The plastic bezel used in the push button offers a blend of durability and weight efficiency, ensuring that it is both robust and easy to handle during installation or operation.
