EAO 61-6451.4277 Series Twist Release Emergency Stop Push Button, Panel Mount, 16 mm Cutout, 1 NO/1 NC, IP67, IP66,
- RS 제품 번호:
- 210-0793
- Distrelec 제품 번호:
- 302-14-402
- 제조사 부품 번호:
- 61-6451.4277
- 제조업체:
- EAO
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩129,400.00
재고있음
- 29 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩129,400.00 |
| 10 - 19 | ₩124,240.00 |
| 20 + | ₩119,040.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 210-0793
- Distrelec 제품 번호:
- 302-14-402
- 제조사 부품 번호:
- 61-6451.4277
- 제조업체:
- EAO
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | EAO | |
| Product Type | Emergency Stop Push Button | |
| Mount Type | Panel Mount | |
| Cutout Diameter | 16mm | |
| Contact Configuration | 1 NO/1 NC | |
| Push Button Actuation | Twist Release | |
| Housing Material | Plastic | |
| Illuminated | No | |
| Series | 61-6451.4277 | |
| IP Rating | IP67, IP66, IP69K | |
| Colour | Red | |
| Terminal Type | Plug-In | |
| Contact DC Voltage | 32V dc | |
| Contact AC Voltage | 32V ac | |
| Head Style | Mushroom Head | |
| Switch Configuration | Maintained | |
| Head Diameter | 27mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | DIN EN ISO 13850 and EN 60204-1 | |
| Push Button Material | Plastic | |
| 모두 선택 | ||
|---|---|---|
브랜드 EAO | ||
Product Type Emergency Stop Push Button | ||
Mount Type Panel Mount | ||
Cutout Diameter 16mm | ||
Contact Configuration 1 NO/1 NC | ||
Push Button Actuation Twist Release | ||
Housing Material Plastic | ||
Illuminated No | ||
Series 61-6451.4277 | ||
IP Rating IP67, IP66, IP69K | ||
Colour Red | ||
Terminal Type Plug-In | ||
Contact DC Voltage 32V dc | ||
Contact AC Voltage 32V ac | ||
Head Style Mushroom Head | ||
Switch Configuration Maintained | ||
Head Diameter 27mm | ||
Hazardous Area Certification No | ||
Standards/Approvals DIN EN ISO 13850 and EN 60204-1 | ||
Push Button Material Plastic | ||
- COO (Country of Origin):
- CH

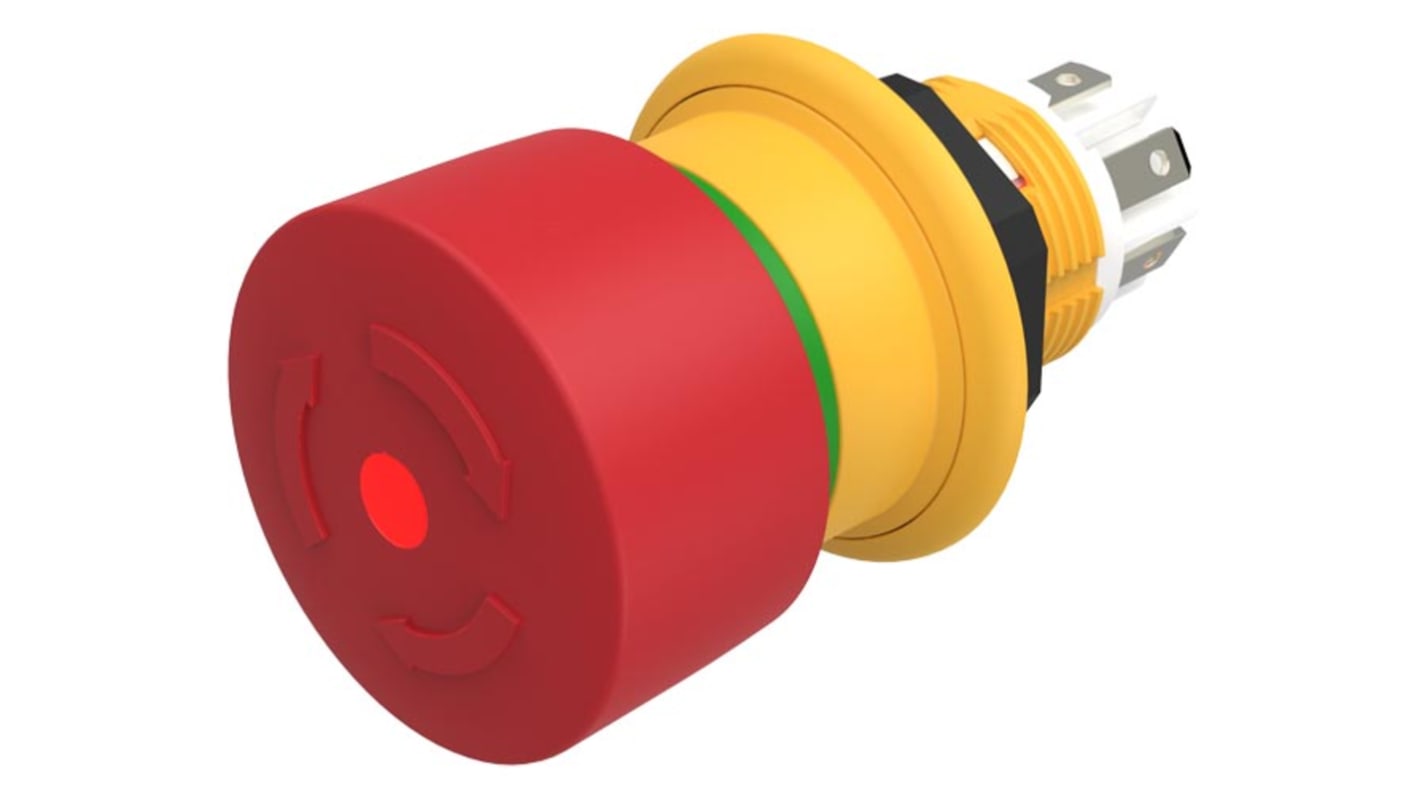

The EAO 61 series emergency stop switch has a e-stop round actuator with twist release to unlock. It has a raised design with illuminative and mushroom-head lens. This switch has mounting cut-out diameter of 16mm and front diameter of 27mm.
Twist to unlock clockwise
