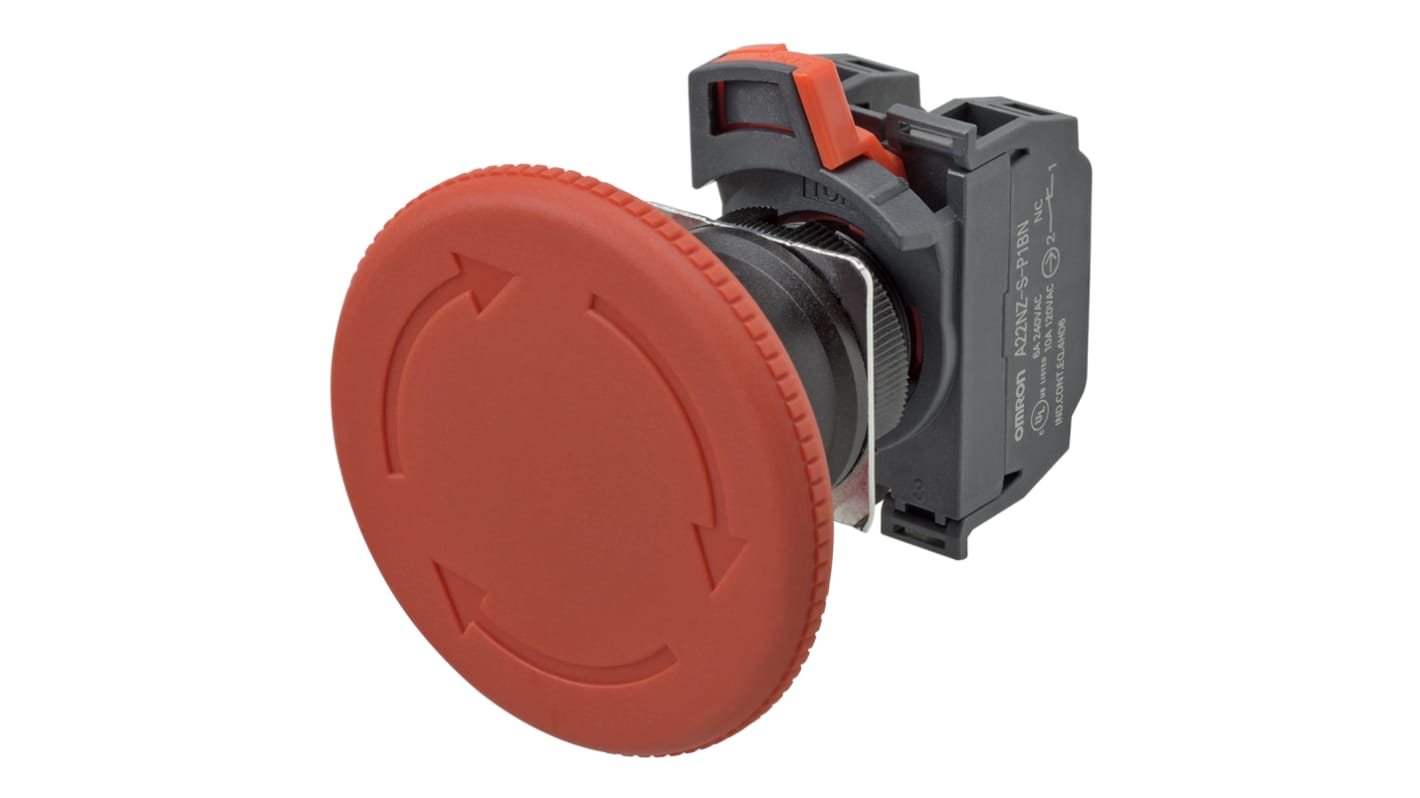

Omron A22NE-PD Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22 mm Cutout, 2 NO/2 NC, IP65

RS 제품 번호:: 188-9178
제조사 부품 번호:: A22NE-L-PD22-N
제조업체:: Omron

Omron A22NE-PD Series Twist Release Illuminated Emergency Stop Push Button, Panel Mount, 22 mm Cutout, 2 NO/2 NC, IP65

Subtotal (1 unit)*

₩133,900.00

일시적 품절

2026년 10월 19일 부터 배송

더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.

수량	한팩당
1 +	₩133,900.00

* 참고 가격: 실제 구매가격과 다를 수 있습니다

RS 제품 번호:: 188-9178
제조사 부품 번호:: A22NE-L-PD22-N
제조업체:: Omron

참조 문서

제정법과 컴플라이언스

제품 세부 사항

제품 정보를 선택해 유사 제품을 찾기

모두 선택	제품 정보	값
	브랜드	Omron
	Product Type	Emergency Stop Push Button
	Mount Type	Panel Mount
	Cutout Diameter	22mm
	Contact Configuration	2 NO/2 NC
	Push Button Actuation	Twist Release
	Series	A22NE-PD
	Illuminated	Yes
	IP Rating	IP65
	Colour	Red
	Terminal Type	Screw, Push-in
	Head Style	Round
	Contact AC Voltage	250V ac
	Switch Configuration	1 NO/1 NC
	Depth	87mm
	Hazardous Area Certification	No
	Standards/Approvals	UL486E, UL1059, GB14048.5, UL508, EN60947-5-5, CSA C22.2 No.14, EN60947-5-1
	Safety Contacts	4

	모두 선택
	브랜드 Omron
	Product Type Emergency Stop Push Button
	Mount Type Panel Mount
	Cutout Diameter 22mm
	Contact Configuration 2 NO/2 NC
	Push Button Actuation Twist Release
	Series A22NE-PD
	Illuminated Yes
	IP Rating IP65
	Colour Red
	Terminal Type Screw, Push-in
	Head Style Round
	Contact AC Voltage 250V ac
	Switch Configuration 1 NO/1 NC
	Depth 87mm
	Hazardous Area Certification No
	Standards/Approvals UL486E, UL1059, GB14048.5, UL508, EN60947-5-5, CSA C22.2 No.14, EN60947-5-1
	Safety Contacts 4

Datasheet A22NE-L-PD22-N

COO (Country of Origin):: JP

Omron A22NE-PD Series Emergency Stop Push Button, IP65 Ingress Protection, Red - A22NE-L-PD22-N

This emergency stop push button provides a manual means to halt machinery operations and isolate power in industrial control panels. Designed for panel fitting, it incorporates a twist-release actuation and is suitable for environments where a clear, illuminated shutdown control is required. The unit offers a combination of safety contacts and a robust ingress protection rating for use on production equipment and control stations.

Features and Benefits:

• IP65 sealing prevents dust ingress and resists water spray
• 250V AC rating supports standard industrial control voltages
• 2NO/2NC safety contacts deliver separate safety signalling
• Twist-release actuation enables secure latching and reset
• Screw and push-in terminals allow flexible wiring methods
• Illuminated red head improves visibility in low light

Applications

• Suitable for panel-mounted emergency stopping in factories
• Ideal for machinery safety circuits requiring redundant contacts
• Used with control cabinets needing visible shutdown indicators
• Can be used for assembly line stop stations and access points
• Suitable for retrofit installations replacing 22mm cut-outs

How many safety contacts are available and what do they provide?

It provides four safety contacts configured as two normally open and two normally closed, allowing separate control and feedback circuits for safety monitoring.

What mounting and cut-out requirement is needed for installation?

It is designed for panel mounting and fits a 22mm cut-out for standard control plate installation.

What head style and colour indicate emergency function?

The unit has a round head finished in red to denote emergency use and is illuminated for enhanced visibility.

Which terminal connection options are available for wiring?

Termination can be achieved using either screw terminals or push-in connections to accommodate installer preference.
