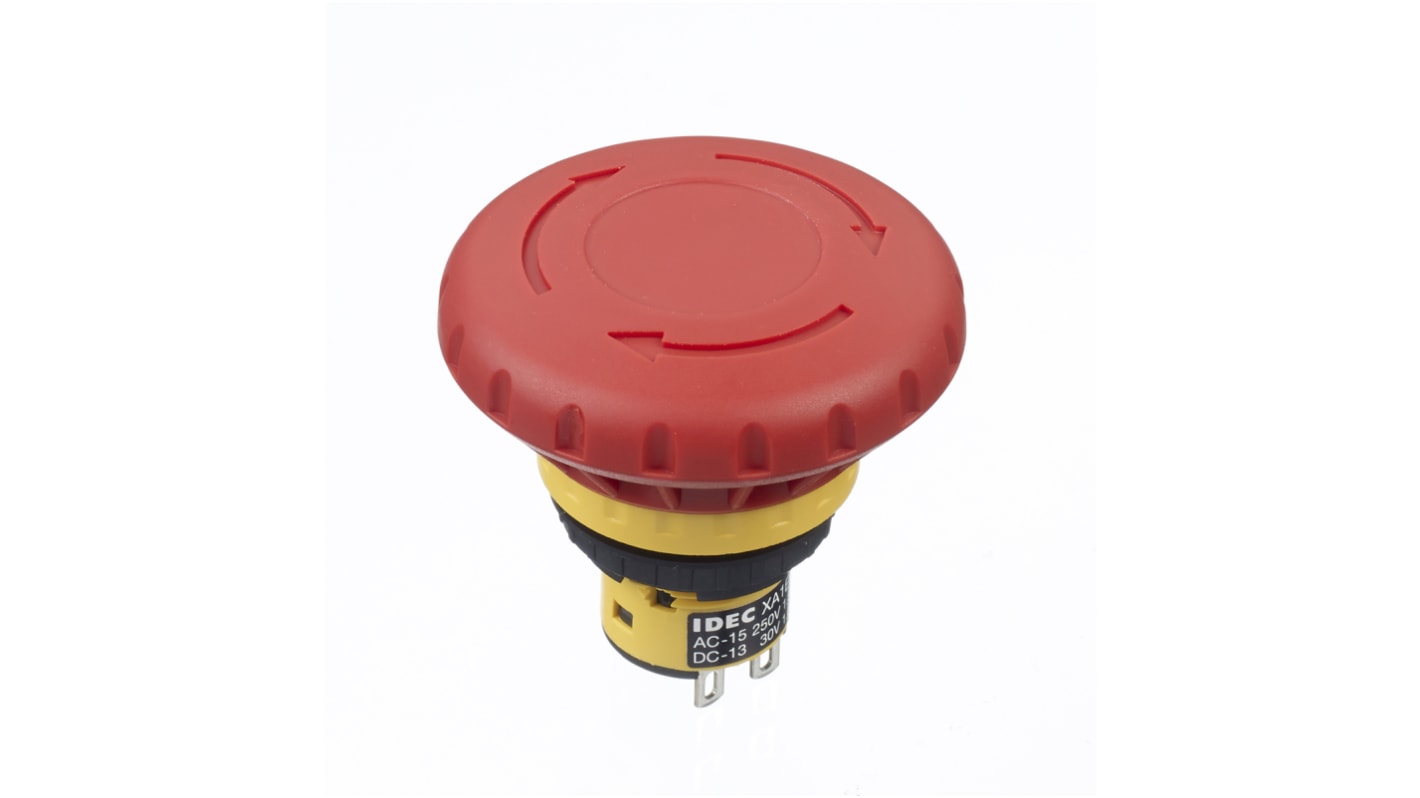

Idec XA Series Twist Release Emergency Stop Push Button, Panel Mount, 16 mm Cutout, 2 NC, IP65, IP40
- RS 제품 번호:
- 182-4271
- Distrelec 제품 번호:
- 301-02-592
- 제조사 부품 번호:
- XA1E-BV4U02R
- 제조업체:
- Idec
대량 구매 할인 기용 가능
View bulk pricing optionsSubtotal (1 unit)*
₩99,820.00
재고있음
- 87 개 단위 배송 준비 완료
더 자세한 내용이 필요하신가요? 필요한 수량을 입력하고 '배송일 확인'을 클릭하면 더 많은 재고 및 배송 세부정보를 확인하실 수 있습니다.
수량 | 한팩당 |
|---|---|
| 1 - 9 | ₩99,820.00 |
| 10 - 24 | ₩95,860.00 |
| 25 + | ₩91,820.00 |
* 참고 가격: 실제 구매가격과 다를 수 있습니다
- RS 제품 번호:
- 182-4271
- Distrelec 제품 번호:
- 301-02-592
- 제조사 부품 번호:
- XA1E-BV4U02R
- 제조업체:
- Idec
사양
참조 문서
제정법과 컴플라이언스
제품 세부 사항
제품 정보를 선택해 유사 제품을 찾기
모두 선택 | 제품 정보 | 값 |
|---|---|---|
| 브랜드 | Idec | |
| Mount Type | Panel Mount | |
| Product Type | Emergency Stop Push Button | |
| Cutout Diameter | 16mm | |
| Contact Configuration | 2 NC | |
| Push Button Actuation | Twist Release | |
| Series | XA | |
| Illuminated | No | |
| IP Rating | IP65, IP40 | |
| Colour | Red | |
| Contact DC Voltage | 250V dc | |
| Number of Auxiliary Contacts | 3 | |
| Switch Configuration | 2 NO, 1 NO, 4 NC | |
| Hazardous Area Certification | No | |
| Length | 40.1mm | |
| Standards/Approvals | EN60947-5-1, TÜV Product Service, CSA C22.2 No. 14, Self-Declaration (European Commission’s Low Voltage Directive), UL/c-UL File No. E68961, EN60947-5-5, UL508, JIS C8201-5-1 | |
| Safety Contacts | 5.2, NC | |
| 모두 선택 | ||
|---|---|---|
브랜드 Idec | ||
Mount Type Panel Mount | ||
Product Type Emergency Stop Push Button | ||
Cutout Diameter 16mm | ||
Contact Configuration 2 NC | ||
Push Button Actuation Twist Release | ||
Series XA | ||
Illuminated No | ||
IP Rating IP65, IP40 | ||
Colour Red | ||
Contact DC Voltage 250V dc | ||
Number of Auxiliary Contacts 3 | ||
Switch Configuration 2 NO, 1 NO, 4 NC | ||
Hazardous Area Certification No | ||
Length 40.1mm | ||
Standards/Approvals EN60947-5-1, TÜV Product Service, CSA C22.2 No. 14, Self-Declaration (European Commission’s Low Voltage Directive), UL/c-UL File No. E68961, EN60947-5-5, UL508, JIS C8201-5-1 | ||
Safety Contacts 5.2, NC | ||
- COO (Country of Origin):
- JP
IDEC's innovative "safe break action" ensures all NC contacts open if the contact block is separated from the operator
Pushlock turn reset and push-pull functions built into same unit
Direct opening action mechanism
Safety lock mechanism
Solder or PCB terminal options
40mm button size
